DT23

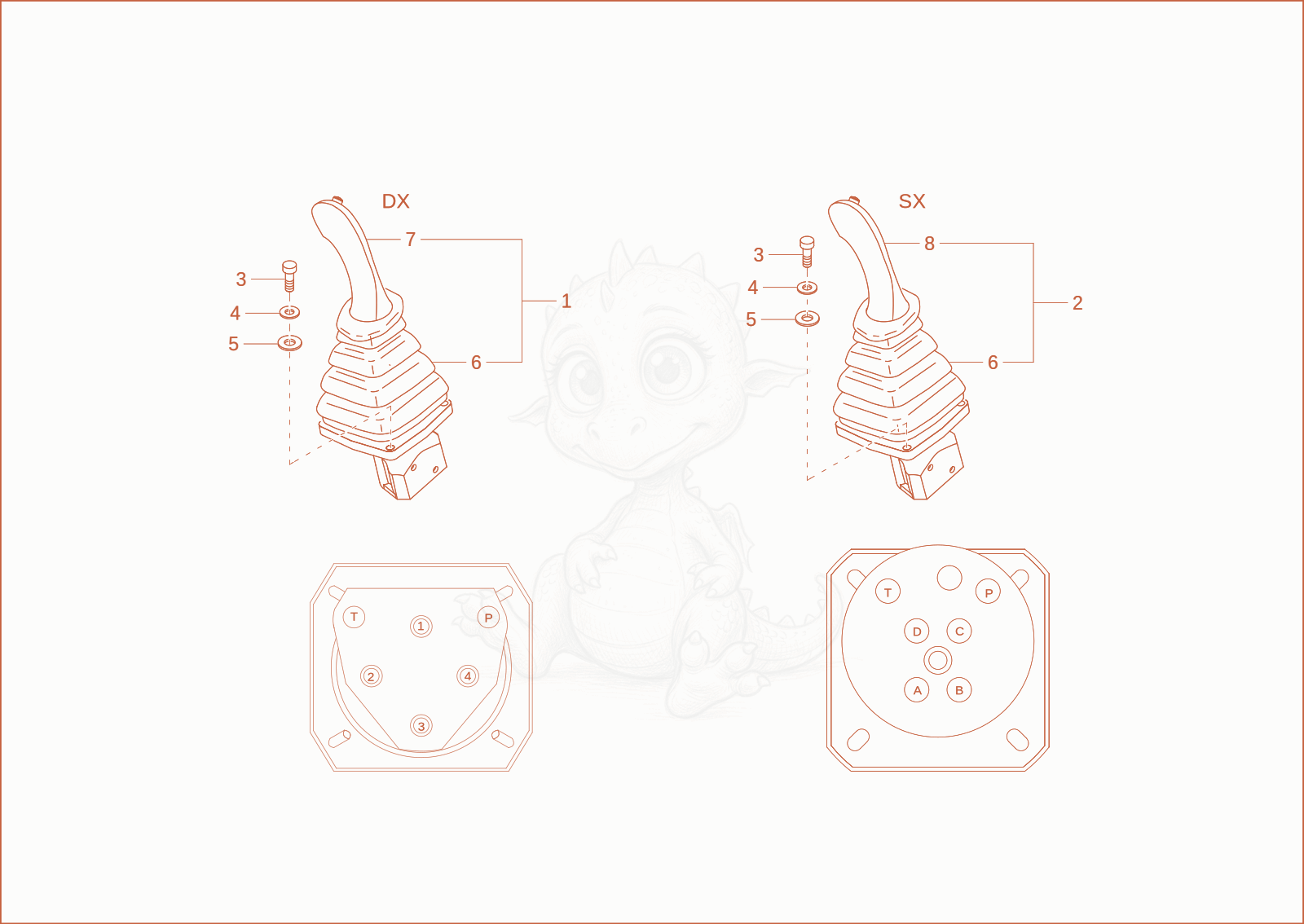

DT23 joystick Diagram

Exploded parts diagram of the joystick of a Wacker Neuson DT23, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000285580Not stocked
    joystick×1
  • 21000414736Not stocked
    joystick×1
  • 31000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×8
  • 41000015444Not stocked
    spring washer×8
  • 51000383668
    $1.24
    washer - 1000383668×8
  • 61000383366Not stocked
    bellow×2
  • 71000504454Not stocked
    handle×1
  • 81000491529Not stocked
    handle×1
