DT23

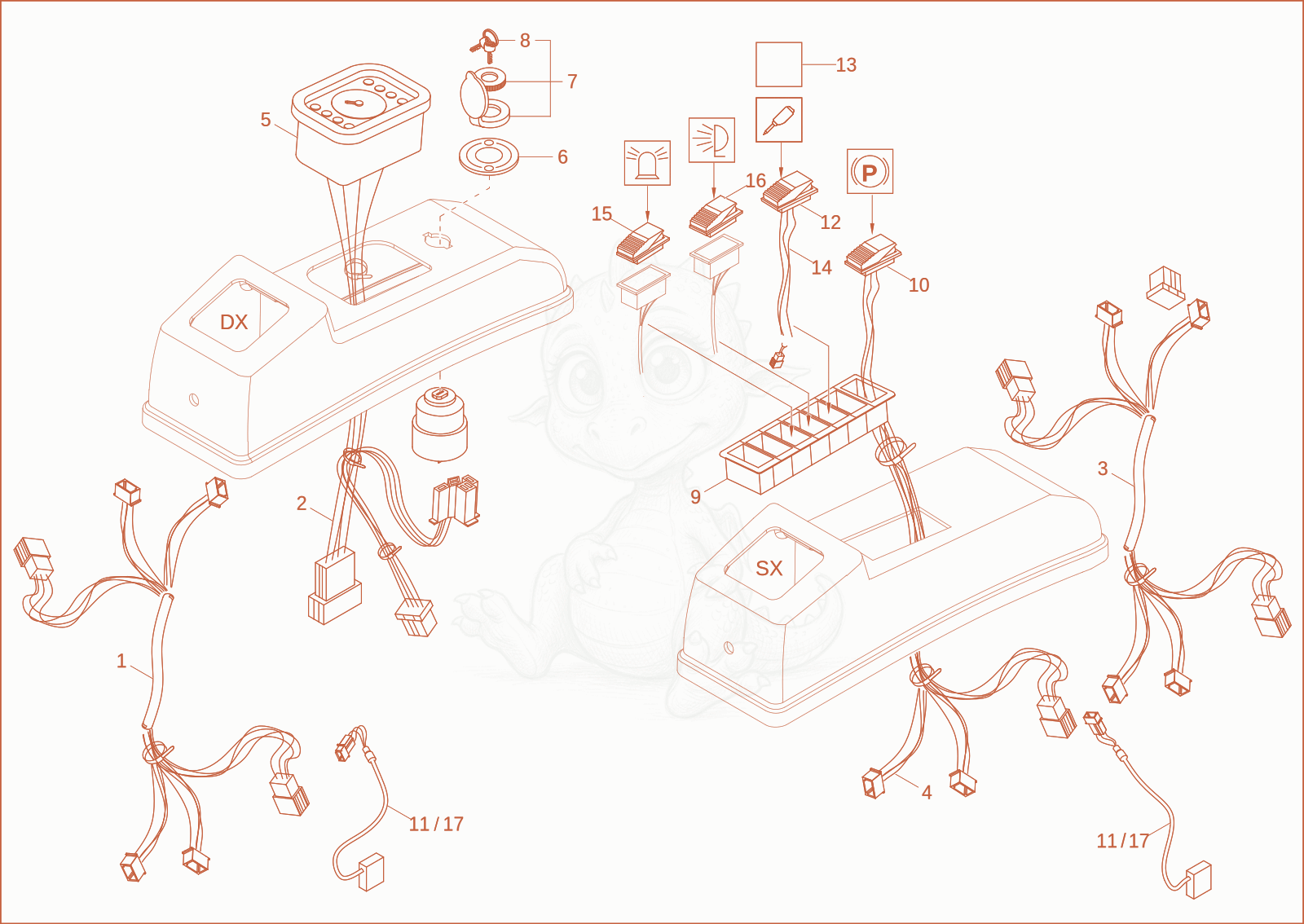

DT23 instrument panel Diagram

Exploded parts diagram of the instrument panel of a Wacker Neuson DT23, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000414797Not stocked
    cable×1
  • 21000414799Not stocked
    cable×1
  • 31000414800Not stocked
    cable×1
  • 41000414801Not stocked
    cable×1
  • 51000281067Not stocked
    indicator instrument×1
  • 61000396718Not stocked
    sticker×1
  • 71000274724
    $396.79
    GLOW START SWITCH - 1000274724×1
  • 81000274725
    $30.72
    key - 1000274725×1
  • 91000027178Not stocked
    switch frame×1
  • 101000281068Not stocked
    tilt switch×1
  • 111000272217Not stocked
    end switch×2
  • 121000417168Not stocked
    switch×1
  • 131000417171Not stocked
    cover×1
  • 141000417160Not stocked
    cable×1
  • 151000417520Not stocked
    switch×1
  • 161000417519Not stocked
    switch×1
  • 171000388338Not stocked
    end switch×2
