DT23

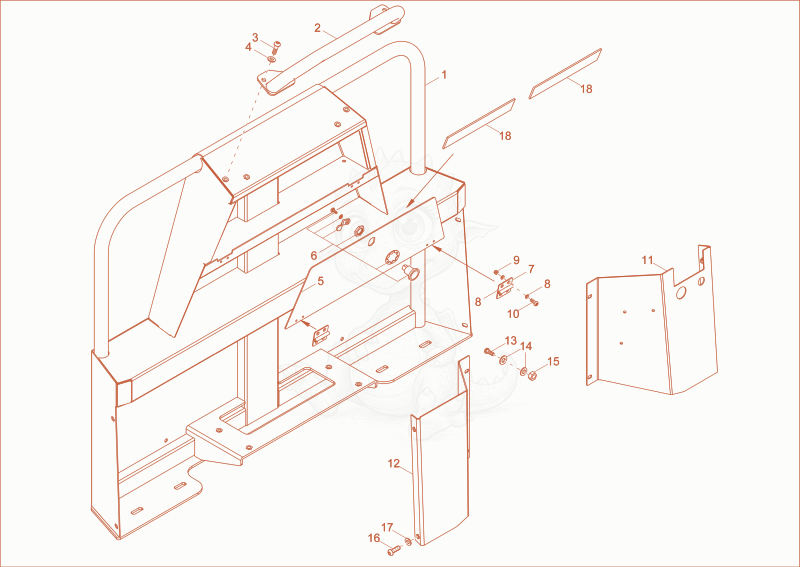

DT23 pilot stand Diagram

Exploded parts diagram of the pilot stand of a Wacker Neuson DT23, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000414737Not stocked
    pilot stand×1
  • 21000414738Not stocked
    handle×1
  • 31000285454
    $1.55
    Flat Head Screw - 1000285454×4
  • 41000015431Not stocked
    washer×4
  • 51000414739Not stocked
    cover×1
  • 61000274774
    $132.41
    Lock - 1000274774×1
  • 71000274780
    $52.00
    hinge - 1000274780×2
  • 81000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×16
  • 91000269278
    $1.24
    HEXAGON NUT - 1000269278×8
  • 101000285834Not stocked
    flat head screw×8
  • 111000414770Not stocked
    cover×1
  • 121000414772Not stocked
    cover×1
  • 131000018400Not stocked
    hex screw×4
  • 141000015430Not stocked
    u-washer×8
  • 151000269276
    $1.24
    HEXAGON NUT - 1000269276×4
  • 161000269264
    $2.04
    flat head screw - 1000269264×4
  • 171000015444Not stocked
    spring washer×4
  • 181000414786Not stocked
    insulating mat×2
