DT23

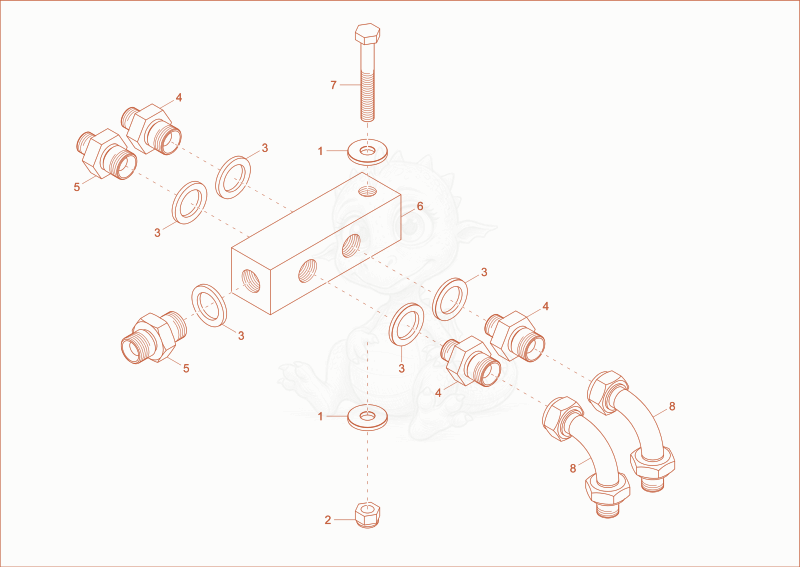

DT23 collect block Diagram

Exploded parts diagram of the collect block of a Wacker Neuson DT23, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000383668
$1.24
washer - 1000383668×2
21000269276
$1.24
HEXAGON NUT - 1000269276×1
31000273277
$3.59
WASHER - 1000273277×5
41000270696
$10.15
ADAPTER - 1000270696×3
51000271298
$37.52
DOUBLE NIPPLE - 1000271298×2
61000273333
$61.80
COLLECT BLOCK - 1000273333×1
71000085310
$0.78
hex screw - 1000085310×1
81000273323
$31.60
PIPE BOW - 1000273323×2
