DW90-3

DW90-3 wiring harness Diagram

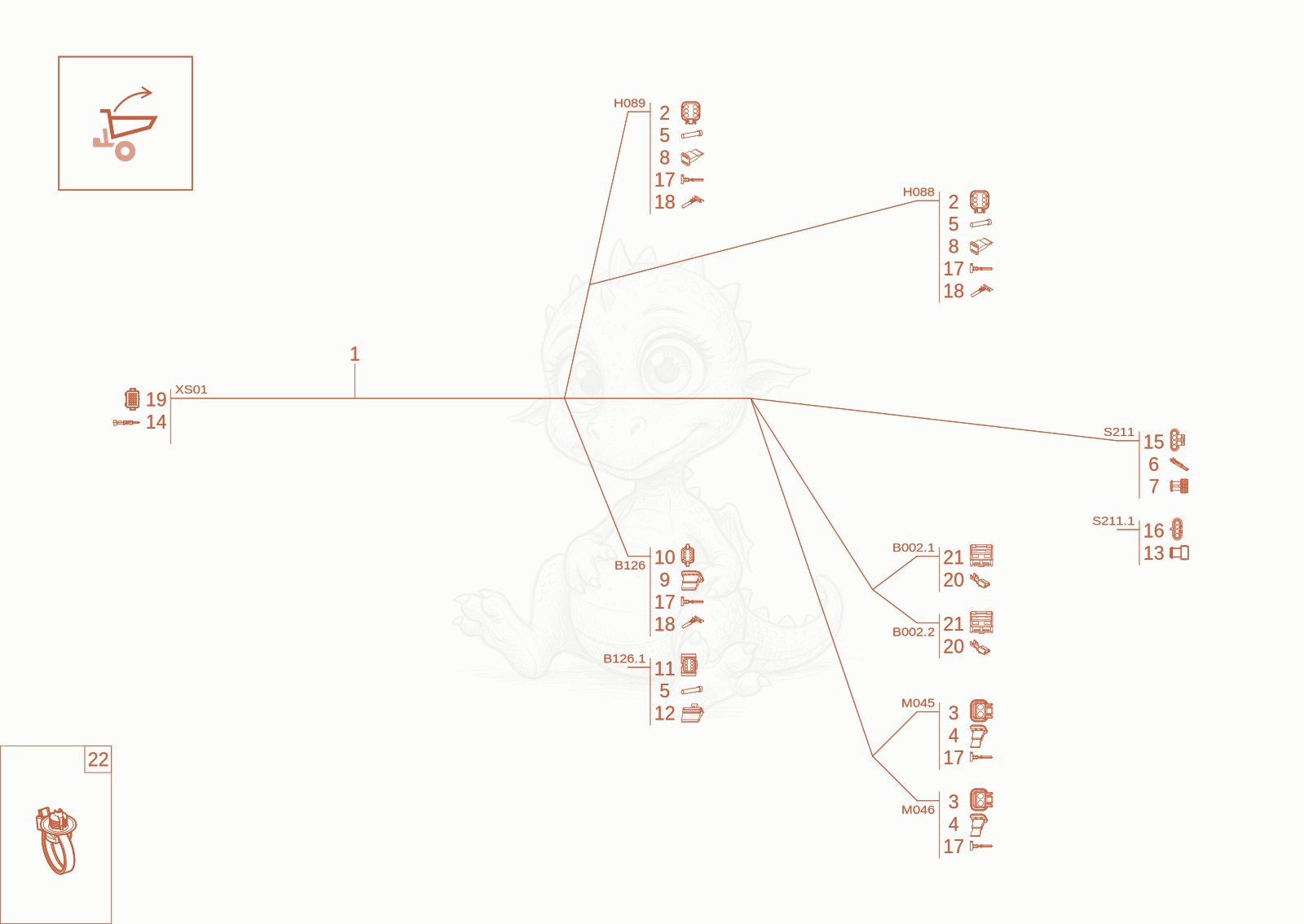

Exploded parts diagram of the wiring harness of a Wacker Neuson DW90-3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000505573Not stocked
    wiring harness×1
  • 21000027431Not stocked
    bushing housing×2
  • 31000027438Not stocked
    bushing housing×2
  • 41000027442Not stocked
    wedge×2
  • 51000030446Not stocked
    plug×10
  • 61000051990Not stocked
    bushing contact×4
  • 71000052672Not stocked
    seal×4
  • 81000085032
    $1.15
    plug locking - 1000085032×2
  • 91000100723
    $2.77
    wedge - 1000100723×1
  • 101000105113
    $14.50
    bushing housing - 1000105113×1
  • 111000105117
    $53.23
    Pin housing - 1000105117×1
  • 121000105118
    $1.19
    wedge - 1000105118×1
  • 131000128773
    $0.32
    Plug - 1000128773×4
  • 141000147472
    $6.67
    Pin contact - 1000147472×22
  • 151000258052
    $3.23
    plug bushing - 1000258052×1
  • 161000274691
    $7.56
    plug sleeve housing - 1000274691×1
  • 171000309284Not stocked
    bushing contact×8
  • 181000359612Not stocked
    plug connection×14
  • 191000363133Not stocked
    pin housing×1
  • 201000383149Not stocked
    bushing contact×2
  • 211000383151Not stocked
    bushing housing×2
  • 221000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×2
