DW90-3

DW90-3 Instrument panel (OPTION) Diagram

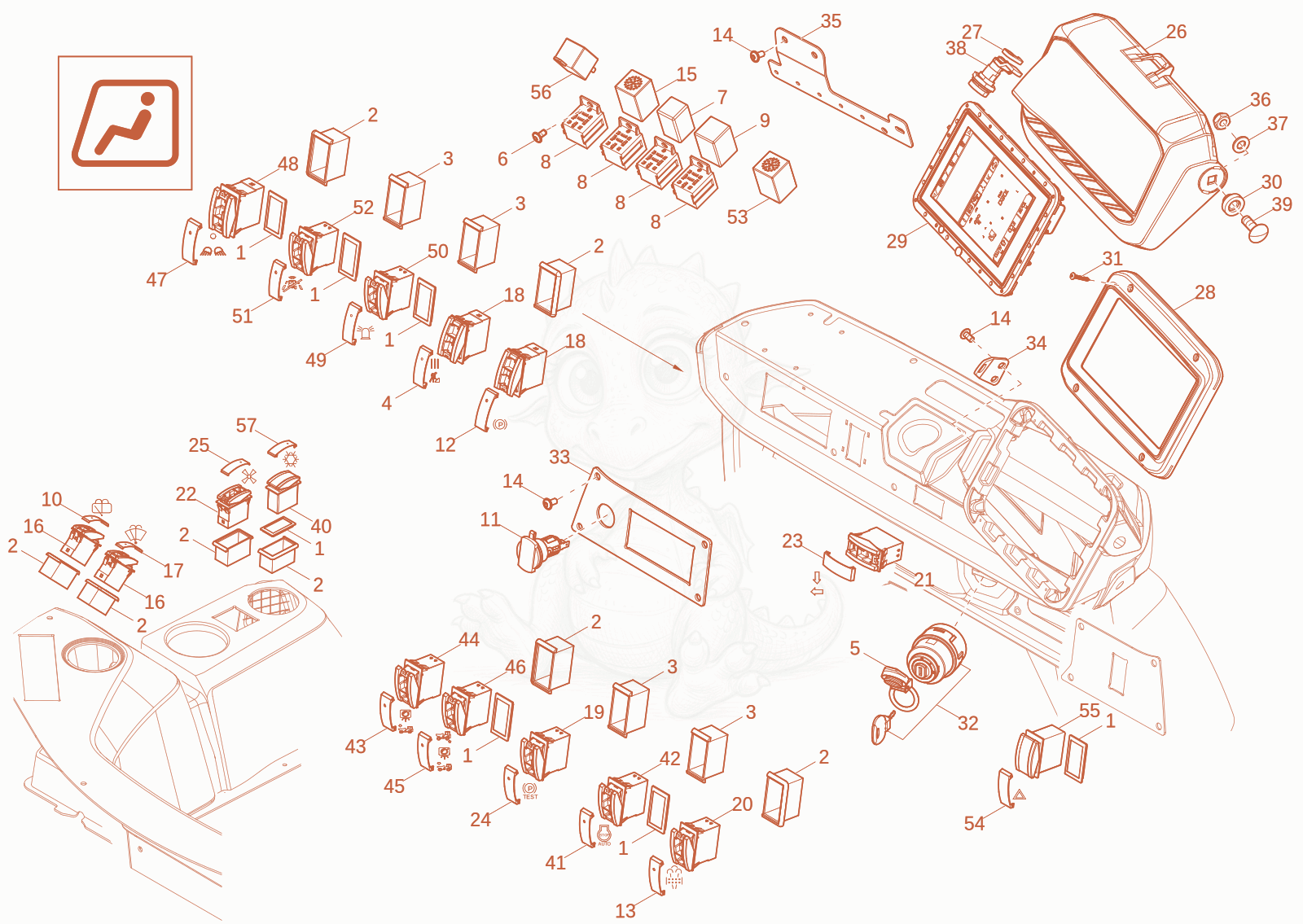

Exploded parts diagram of the Instrument panel (OPTION) of a Wacker Neuson DW90-3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000027006Not stocked
    blind cover×7
  • 21000027168Not stocked
    switch frame×8
  • 31000027178Not stocked
    switch frame×4
  • 41000395686
    $3.67
    SYMBOL - 1000395686×1
  • 51000081684
    $9.74
    cover ignition lock - 1000081684×1
  • 61000085547
    $0.94
    flat head screw - 1000085547×4
  • 71000099374
    $218.46
    TIME RELAY - 1000099374×1
  • 81000101071
    $7.72
    Plug housing - 1000101071×4
  • 91000467402
    $47.25
    Diode - 1000467402×1
  • 101000098304
    $5.74
    SYMBOL WASH DEVICE - 1000098304×1
  • 111000485001
    $8.68
    Power socket 12V Cabin - 1000485001×1
  • 121000187682
    $4.90
    Symbol - 1000187682×1
  • 131000289073
    $11.25
    SYMBOL - 1000289073×1
  • 141000326519Not stocked
    flat head screw×8
  • 151000351008
    $48.75
    BUZZER - 1000351008×1
  • 161000353601Not stocked
    feeler×2
  • 171000098303
    $11.57
    symbol wiper - 1000098303×1
  • 181000353496Not stocked
    tilt switch×2
  • 191000353593Not stocked
    Rocker switch×1
  • 201000353594
    $44.80
    FEELER - 1000353594×1
  • 211000353597Not stocked
    tilt switch×1
  • 221000353588Not stocked
    tilt switch×1
  • 231000395682
    $5.56
    SYMBOL - 1000395682×1
  • 241000395685
    $3.67
    SYMBOL - 1000395685×1
  • 251000052358Not stocked
    symbol×1
  • 261000402959
    $68.31
    cover - 1000402959×1
  • 271000333644Not stocked
    closing handle×1
  • 281000402854
    $41.55
    protection - 1000402854×1
  • 291000403551Not stocked
    display×1
  • 301000403974
    $63.49
    sleeve - 1000403974×2
  • 311000428018Not stocked
    screw×4
  • 321000429182Not stocked
    glow start switch×1
  • 331000466707Not stocked
    cover×1
  • 341000440109
    $32.93
    plate - 1000440109×1
  • 351000555149Not stocked
    fasten plate×1
  • 361000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 371000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 381000069463Not stocked
    cylinder lock×1
  • 391000299982
    $0.58
    door strap screw - 1000299982×2
  • 401000353495Not stocked
    tilt switch×1
  • 411000395684Not stocked
    symbol×1
  • 421000353496Not stocked
    tilt switch×1
  • 431000481632
    $3.67
    Symbol - 1000481632×1
  • 441000353593Not stocked
    Rocker switch×1
  • 451000483506
    $2.31
    Symbol - 1000483506×1
  • 461000353597Not stocked
    tilt switch×1
  • 471000285851
    $3.34
    Symbol - 1000285851×1
  • 481000353588Not stocked
    tilt switch×1
  • 491000052356Not stocked
    symbol×1
  • 501000353495Not stocked
    tilt switch×1
  • 511000481630
    $3.67
    Symbol - 1000481630×2
  • 521000445988
    $29.88
    Rocker switch - 1000445988×1
  • 531000515881
    $20.16
    signal - 1000515881×1
  • 541000142880
    $3.67
    symbol - 1000142880×1
  • 551000353603Not stocked
    tilt switch×1
  • 561000435743
    $60.85
    relais - 1000435743×1
  • 571000098305
    $11.57
    symbol - 1000098305×1
