DW90-3

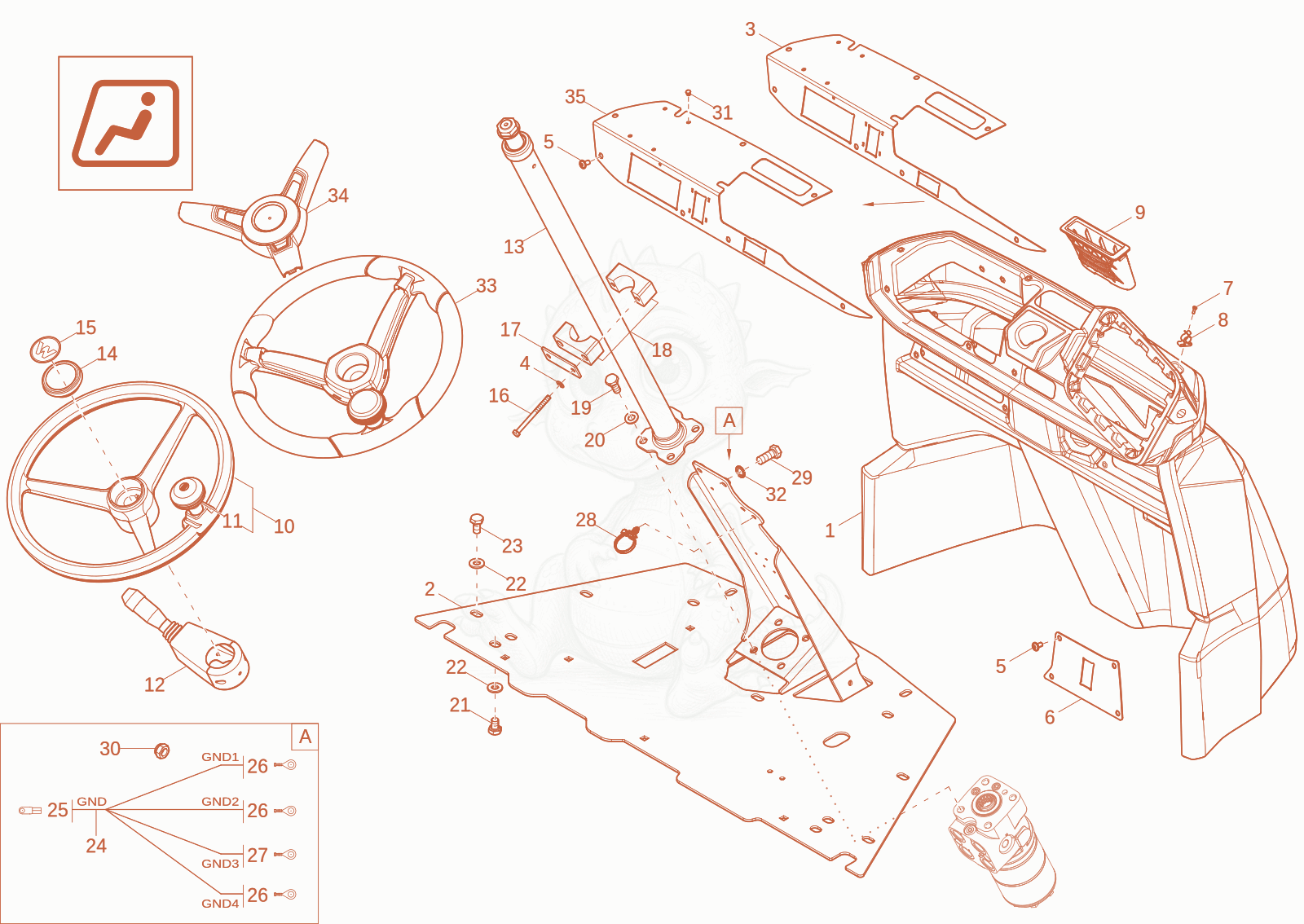

DW90-3 pilot stand Diagram
- pilot stand - 1000439015×1
- 21000512977Not stockedmain plate×1
- 31000492025Not stockedpilot stand×1
- 41000015430Not stockedu-washer×2
- 51000326519Not stockedflat head screw×11
- cover pilot stand - 1000499884×1
- screw - 1000153221×1
- clip - 1000410704×1
- 91000486923Not stockedboard×1
- 101000310966Not stockedsteering wheel×1
- 111000309229Not stockedrotary knob×1
- 121000378383Not stockedsteeringstick switch×1
- Steeringcolumn 1000266442×1
- cover cap - 1000198962×1
- Sticker - 1000234336×1
- 161000047423Not stockedhex screw×2
- COVER PLATE - 1000083327×1
- CLAMP BODY - 1000083326×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
- washer 10,5 A2C DIN125 - 1000015432×6
- 211000013009Not stockedhex screw×8
- washer M10-DIN134 - 1000094974×14
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
- 241000491815Not stockedearth cable×1
- cable lug - 1000107755×1
- cable lug - 1000110764×3
- 271000405714Not stockedcable lug×1
- 281000375997Not stockedfixing bracket×6
- hex screw - 1000085377×1
- HEXAGON NUT - 1000085587×2
- 311000327361Not stockedplug×4
- DIN6797 Lock Washer A6.4 A2C - 1000174410×2
- STEERING WHEEL - 1000496513×1
- CAP - 1000479493×1
- 351000555145Not stockedpilot stand×1
