DW90-3

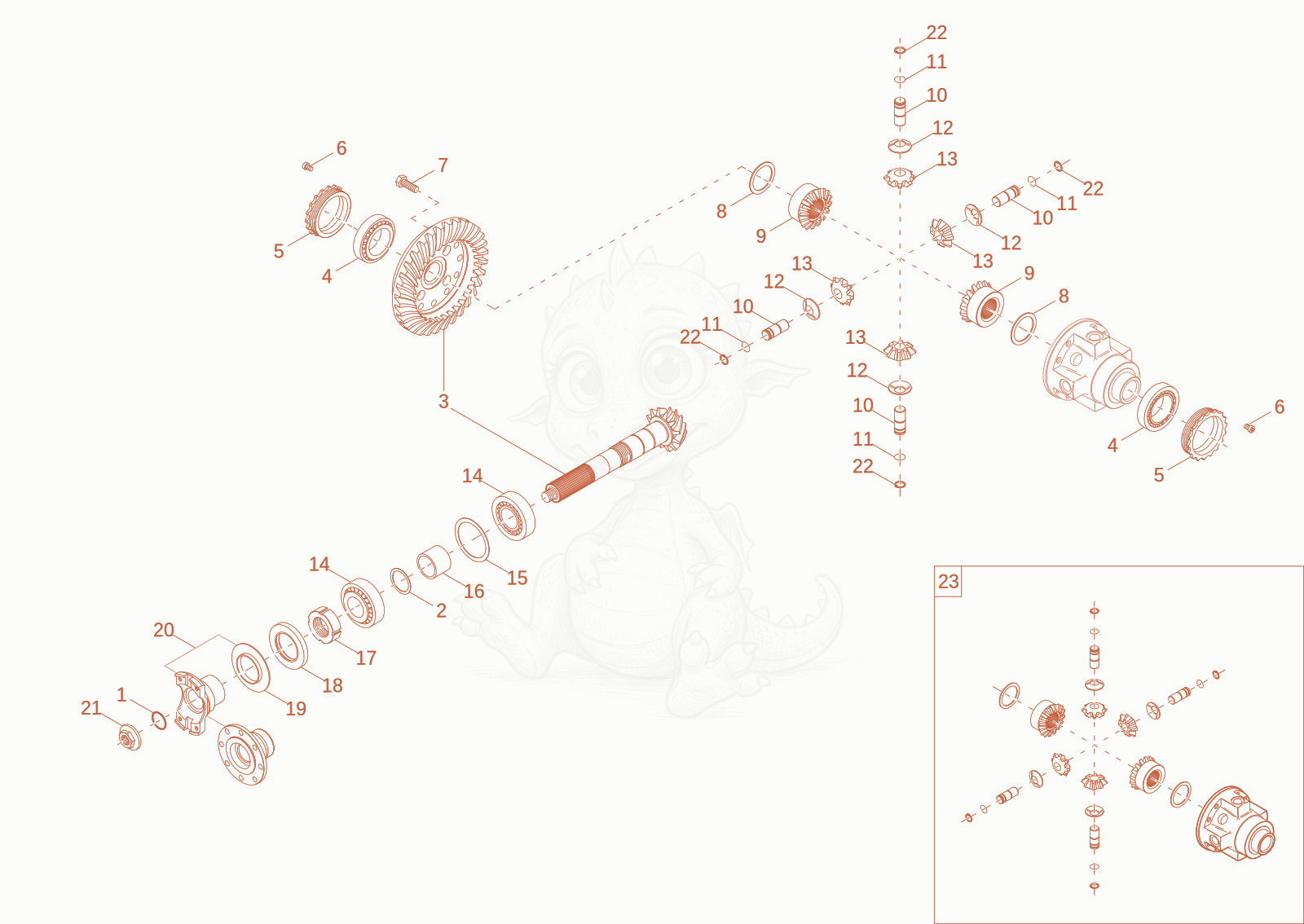

DW90-3 differential axle Diagram
- O-Ring - 1000113688×1
- 21000330294Not stockedSET OF SPACERS×1
- 31000500607Not stockedpinion×1
- taper roller bearing - 1000138651×2
- Nut - 1000150343×2
- CHEESE HEAD SCREW - 1000150348×2
- Screw - 1000143358×12
- washer - 1000183488×2
- Differential - 1000407588×2
- Pin - 1000330333×4
- lock ring - 1000183484×4
- washer - 1000183486×4
- pinion - 1000407599×4
- TAPER ROLLER BEARING - 1000113694×2
- 151000330292Not stockedSET OF SPACERS×1
- SHIM - 1000150349×1
- SHAFT NUT - 1000150350×1
- seal - 1000407657×1
- protection plate - 1000102427×1
- Flange 1000150351×1
- Nut - 1000150352×1
- lock ring - 1000183483×4
- Differentialaxle 1000150592×1
