DW90-3

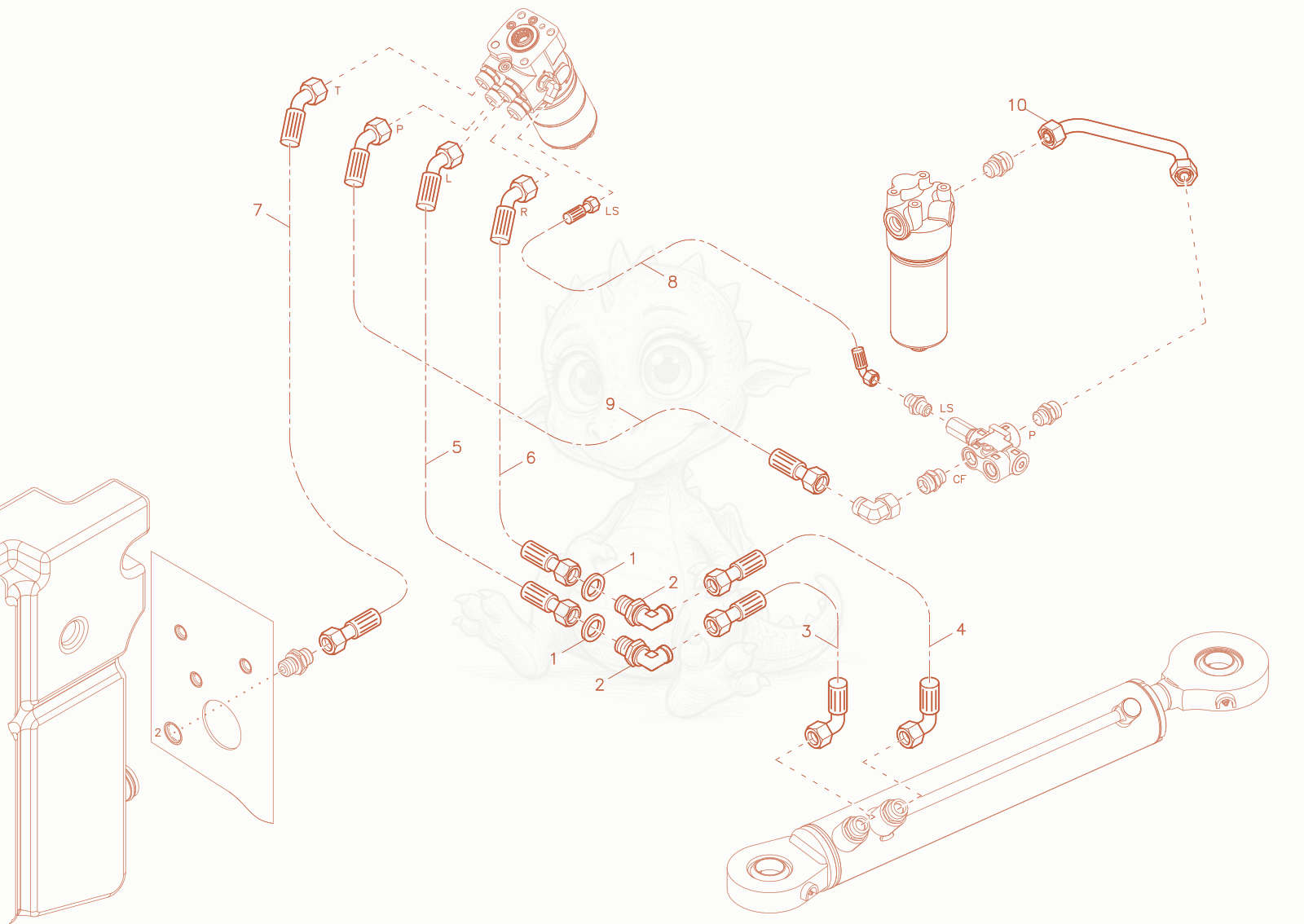

DW90-3 STEERING INSTALLATION Diagram

Exploded parts diagram of the STEERING INSTALLATION of a Wacker Neuson DW90-3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000151414
    $1.81
    WASHER - 1000151414×2
  • 21000028331Not stocked
    screw joint×2
  • 31000429136Not stocked
    Hose×1
  • 41000429135Not stocked
    Hose×1
  • 51000438269
    $34.08
    SLHYDR 2SC 16 PN18 45 PN18 0 L830,0 - 1000438269×1
  • 61000438268
    $34.50
    SLHYDR 2SC 16 PN18 45 PN18 0 L735,0 - 1000438268×1
  • 71000438250
    $38.37
    SLHYDR 1SC 16 PN18 45 PN18 0 L1680 - 1000438250×1
  • 81000438271
    $17.33
    SLHYDR 2SC 6,0PN8 0 PN8 45 L560,0 - 1000438271×1
  • 91000438267
    $32.95
    SLHYDR 2SC 16 PN18 0 PN18 45 L615,0 - 1000438267×1
  • 101000476543Not stocked
    pipe line×1
