Excavator EZ38

EZ38 blade cylinder Diagram

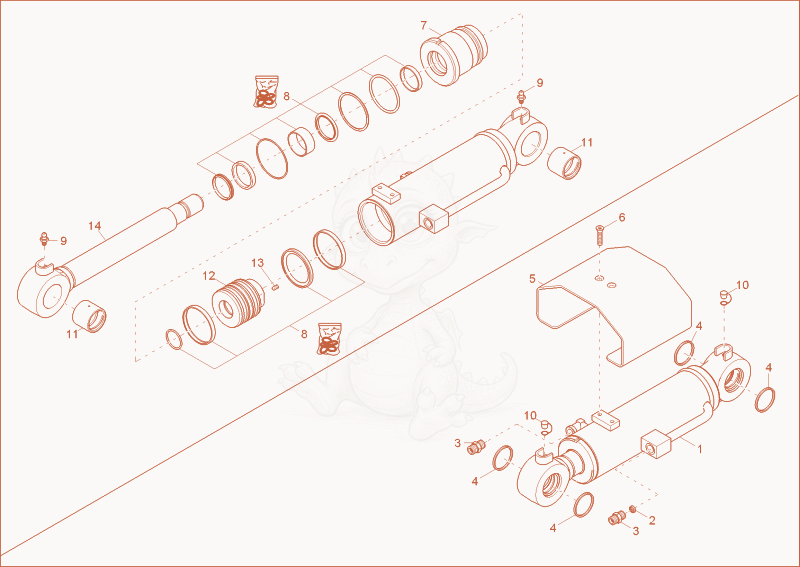

Exploded parts diagram of the blade cylinder of a Wacker Neuson EZ38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000242443
    $2,974.46
    BLADE CYLINDER X-1000367699 - 1000242443×1
  • 21000149075
    $69.65
    HOSE BURST PROTECTION - 1000149075×1
  • 31000082844
    $5.84
    GE10LR1/2EDOMDA3C - 1000082844×2
  • 41000015707Not stocked
    pin gasket×4
  • 51000242448
    $269.15
    Protectionplate 1000242448×1
  • 61000082372
    $0.95
    countersunk screw M10x16 - 1000082372×2
  • 71000153725
    $242.42
    Guidebushing 1000153725×1
  • 81000153726
    $144.78
    CYLINDER SEAL KIT - 1000153726×1
  • 91000072959
    $3.46
    grease nipple - 1000072959×2
  • 101000015480Not stocked
    cap grease nipple×2
  • 111000015619Not stocked
    steel bushing×2
  • 121000151802
    $89.30
    PISTON - 1000151802×1
  • 131000015374Not stocked
    thread pin×1
  • 141000182841
    $816.06
    Pistonrod 1000182841×1
