Excavator EZ38

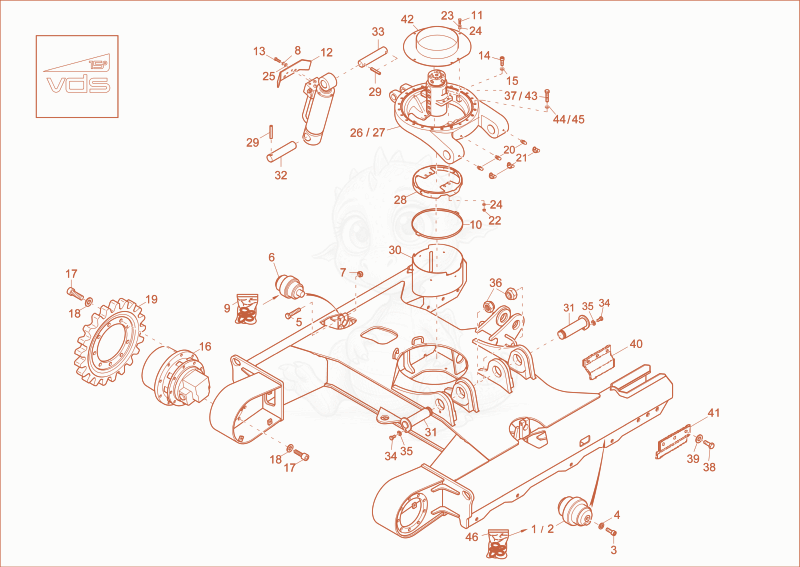

EZ38 TRACKLAYING GEAR (OPTION) Diagram

Exploded parts diagram of the TRACKLAYING GEAR (OPTION) of a Wacker Neuson EZ38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000173560
    $226.22
    Roller 1000173560×8
  • 21000171262
    $255.34
    Roller 1000171262×8
  • 31000020983Not stocked
    hex screw×16
  • 41000095003
    $2.13
    NORTHLOCK DISC - 1000095003×16
  • 51000015392Not stocked
    cheese head screw×2
  • 61000272941
    $198.32
    Supportroller 1000272941×2
  • 71000020127Not stocked
    hexagon nut×2
  • 81000015431Not stocked
    washer×2
  • 91000185724
    $100.28
    SEAL KIT - 1000185724×2
  • 101000114834
    $7.44
    HOSE CLAMP - 1000114834×2
  • 111000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
  • 121000246118
    $74.69
    protection plate - 1000246118×1
  • 131000019136Not stocked
    hex screw×2
  • 141000047888Not stocked
    hex screw×4
  • 151000015449Not stocked
    northlock disc×4
  • 161000184985
    $4,121.46
    Driveunit 1000184985×2
  • 171000022173Not stocked
    cheese head screw×38
  • 181000015450Not stocked
    northlock disc×38
  • 191000185721
    $255.92
    Drivewheel 1000185721×2
  • 201000015476Not stocked
    grease nipple×3
  • 211000020783Not stocked
    cap grease nipple×3
  • 221000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 231000015438Not stocked
    lock washer×4
  • 241000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×8
  • 251000015437Not stocked
    lock washer×2
  • 261000242011
    $3,263.51
    Tiltconsole 1000242011×1
  • 271000317127Not stocked
    tilt console×1
  • 281000249844
    $63.49
    fixing piece - 1000249844×2
  • 291000082714
    $1.24
    cotter pin - 1000082714×3
  • 301000466700Not stocked
    cover×1
  • 311000295152
    $173.68
    Pin 1000295152×2
  • 321000295151
    $50.47
    PIN - 1000295151×1
  • 331000295150
    $57.60
    PIN - 1000295150×1
  • 341000015349Not stocked
    hex screw×2
  • 351000082609
    $0.73
    lock washer - 1000082609×2
  • 361000082572
    $11.95
    SET NUT - 1000082572×2
  • 371000320664
    $7.02
    screw - 1000320664×24
  • 381000015372Not stocked
    hex screw×12
  • 391000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×12
  • 401000068828
    $63.02
    CHAIN PROTECTION - 1000068828×2
  • 411000068827
    $123.02
    CHAIN PROTECTION - 1000068827×2
  • 421000258108
    $445.36
    Greasering 1000258108×1
  • 431000335008Not stocked
    screw×24
  • 441000082635
    $0.78
    WASHER - 1000082635×24
  • 451000015453Not stocked
    northlock disc×24
  • 461000171266
    $34.22
    SEAL KIT - 1000171266×8
