Excavator EZ38

EZ38 lift arm Diagram

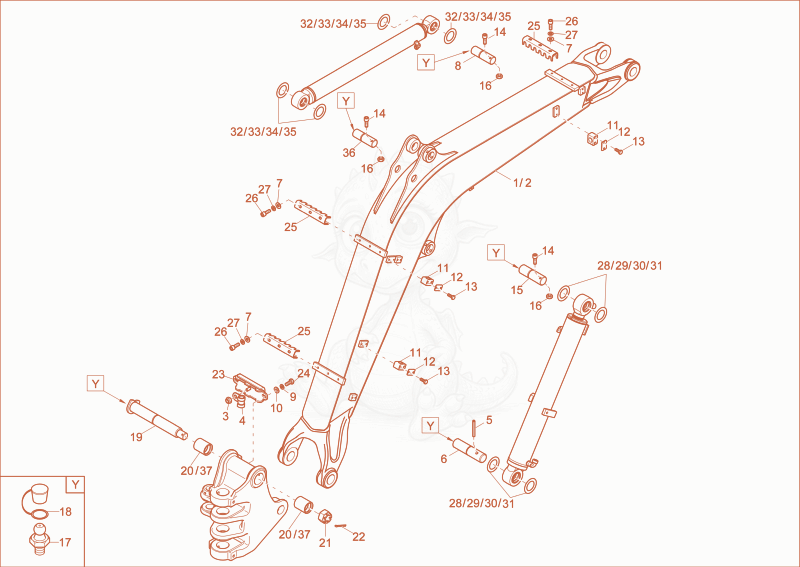

Exploded parts diagram of the lift arm of a Wacker Neuson EZ38, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000307029Not stocked
lift arm×1
21000178532
$9,455.04
Liftingarm 1000178532×1
31000015408
$1.33
nut M10-8 A2C-DIN985 - 1000015408×1
41000062589Not stocked
pipe clamp×1
51000049780Not stocked
cotter pin×1
61000296749
$49.90
Pin 1000296749×1
71000015431Not stocked
washer×9
81000139674
$64.34
Pin 1000139674×1
91000015438Not stocked
lock washer×2
101000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×5
111000083263
$1.33
clamp body - 1000083263×6
121000015623Not stocked
cover plate×3
131000085310
$0.78
hex screw - 1000085310×12
141000015353Not stocked
cheese head screw×3
151000296591
$46.60
Pin 1000296591×1
161000015416
$0.71
DIN985-M8-8-A2C - 1000015416×3
171000015476Not stocked
grease nipple×5
181000015480Not stocked
cap grease nipple×5
191000296540
$91.74
Pin 1000296540×1
201000083214
$23.25
STEEL BUSHING - 1000083214×2
211000015417
$12.94
DIN935-M36-8-A2C - 1000015417×1
221000021603
$0.88
COTTERPIN - 1000021603×1
231000351248Not stocked
clamp bar×1
241000015367Not stocked
hex screw×2
251000139782
$19.48
PIPE CLAMP - 1000139782×3
261000085498
$1.32
cheese head screw - 1000085498×9
271000015437Not stocked
lock washer×9
281000139780
$5.02
SHIM - 1000139780×1
291000139779
$2.11
SHIM - 1000139779×1
301000139778
$2.45
shim - 1000139778×1
311000139777
$2.64
shim - 1000139777×1
321000154275
$2.38
SHIM - 1000154275×1
331000154276
$2.11
SHIM - 1000154276×1
341000154278
$2.53
SHIM - 1000154278×1
351000154280
$2.84
SHIM - 1000154280×1
361000296750
$63.92
Pin 1000296750×1
371000352495Not stocked
steel bushing×2
