Excavator EZ38

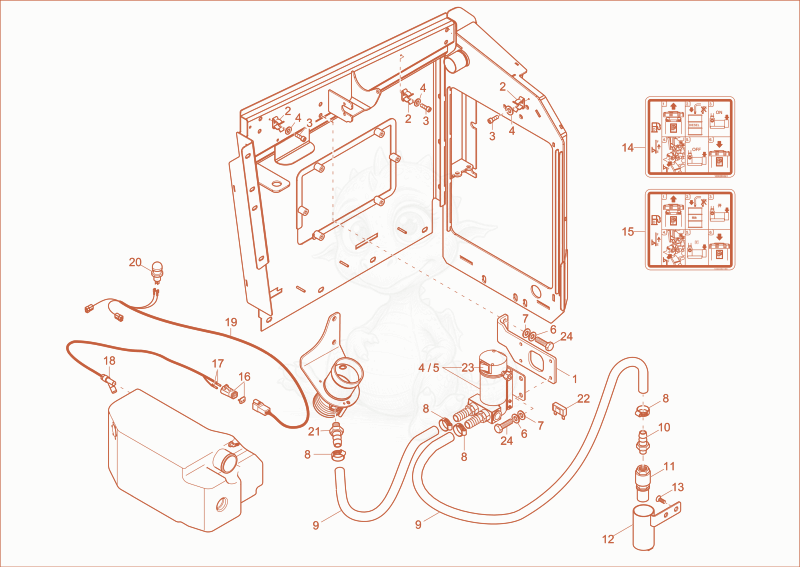

EZ38 DIESEL TANK FILLING PUMP (OPTION) Diagram
- 11000155697Not stockedbracket dieselpump×1
- 21000359214Not stockedclamp×3
- socket head screw M4x12 8.8 A2C DIN912 - 1000082428×3
- washer 4,3 DIN125 - 1000094961×3
- Dieselpumpwithswitch 1000262345×1
- 61000015438Not stockedlock washer×8
- washer 10,5 A2C DIN125 - 1000015432×8
- 81000019590Not stockedhose clamp×4
- suction hose diesel - 1000117960×2
- hose sleeve - 1000072573×1
- non return valve - 1000265436×1
- 121000336981Not stockedbracket×1
- 131000015397Not stockedcountersunk screw×2
- sticker - 1000265391×1
- 151000360186Not stockedsticker×1
- pin housing - 1000081808×1
- 171000085034Not stockedbushing contact×2
- switch level EZ38, EZ53 - 1000128955×1
- wiring harness - 1000128954×1
- 201000015316Not stockedwarning light×1
- hose sleeve - 1000267951×1
- FUSE - 1000085684×1
- SWITCH - 1000168275×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
