Excavator EZ38

EZ38 mounting set (Option) Diagram

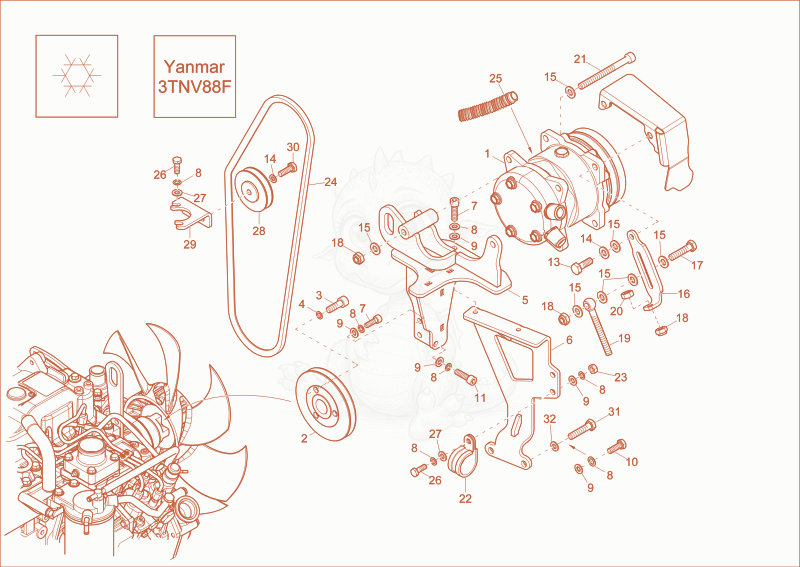

Exploded parts diagram of the mounting set (Option) of a Wacker Neuson EZ38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000177799
    $1,038.42
    Compressoraircondition 1000177799×1
  • 21000109405
    $98.63
    Pulley 1000109405×1
  • 31000085512
    $1.18
    allen screw M12x50 10.9 - 1000085512×3
  • 41000015438Not stocked
    lock washer×3
  • 51000178251
    $257.29
    Consoleaircondcompressor 1000178251×1
  • 61000425770
    $119.34
    COMPRESSOR SUPP. - 1000425770×1
  • 71000082295
    $1.10
    cheese head screw - 1000082295×4
  • 81000015437Not stocked
    lock washer×12
  • 91000015431Not stocked
    washer×10
  • 101000344576Not stocked
    hex screw×3
  • 111000085497
    $0.90
    cheese head screw M8x30-10.9 DACRO500-5 - 1000085497×2
  • 121000383445Not stocked
    cover×1
  • 131000015364Not stocked
    hex screw×2
  • 141000015438Not stocked
    lock washer×3
  • 151000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×10
  • 161000187250
    $10.40
    HOLDER - 1000187250×1
  • 171000085413
    $1.20
    hex screw - 1000085413×1
  • 181000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 191000168460
    $7.82
    eye bolt - 1000168460×1
  • 201000015407Not stocked
    hexagon nut×1
  • 211000082430
    $0.52
    CHEESE HEAD SCREW - 1000082430×1
  • 221000304270
    $11.46
    clamp - 1000304270×1
  • 231000013021Not stocked
    hexagon nut×1
  • 241000243212
    $37.44
    BELT - 1000243212×1
  • 251000097882
    $18.45
    cable hose - 1000097882×0.39
  • 261000079385
    $0.85
    hex screw M8x30-8.8 A2C-DIN933 - 1000079385×3
  • 271000013027Not stocked
    washer×2
  • 281000166533
    $95.84
    belt pulley - 1000166533×1
  • 291000339729Not stocked
    bracket pulley×1
  • 301000015346Not stocked
    hex screw×1
  • 311000013008Not stocked
    hex screw×2
  • 321000426229Not stocked
    lock washer×2
