Excavator EZ38

EZ38 Prep.Circuit Powertilt+Easy Lock(Option) Diagram

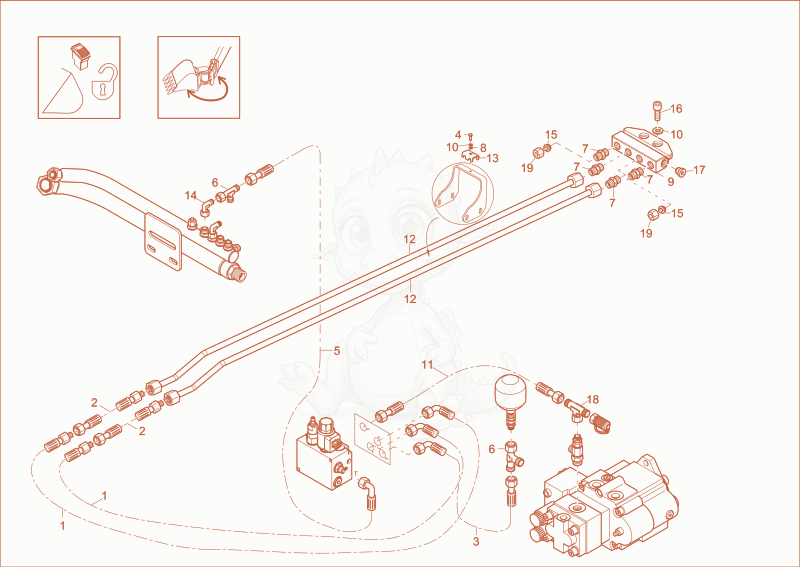

Exploded parts diagram of the Prep.Circuit Powertilt+Easy Lock(Option) of a Wacker Neuson EZ38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000261003
    $116.85
    SLHYDR RX1.5,0PN8 90 PD6 0 L2600 S0 - 1000261003×2
  • 21000260874
    $129.33
    SLHYDR RX1.5,0PN6 0 PD8 0 L3000 S0 - 1000260874×2
  • 31000216801
    $253.43
    SLHYDR RX1.5,0PN8 90 PN8 0 L2300 0 - 1000216801×1
  • 41000015343Not stocked
    hex screw×1
  • 51000262437
    $69.75
    hp hose - 1000262437×1
  • 61000015515Not stocked
    screw joint×2
  • 71000015488Not stocked
    screw joint×4
  • 81000015431Not stocked
    washer×1
  • 91000439616Not stocked
    distributor block×1
  • 101000015437Not stocked
    lock washer×2
  • 111000299125
    $248.12
    SLHYDR RX1.5,0PN8 90 PN8 0 L2100 0 - 1000299125×1
  • 121000280570
    $94.13
    pipe line - 1000280570×2
  • 131000261367
    $5.45
    pipe clamp - 1000261367×1
  • 141000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 151000083043
    $1.31
    VKA08A3C - 1000083043×2
  • 161000085493
    $0.78
    socket head screw M8x12-8.8 A2C DIN912 - 1000085493×2
  • 171000082827
    $1.50
    VSTI1/8EDA3C - 1000082827×2
  • 181000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 191000015481Not stocked
    union nut×2
