GH3500E-GENERATOR

GH3500E Generator Diagram

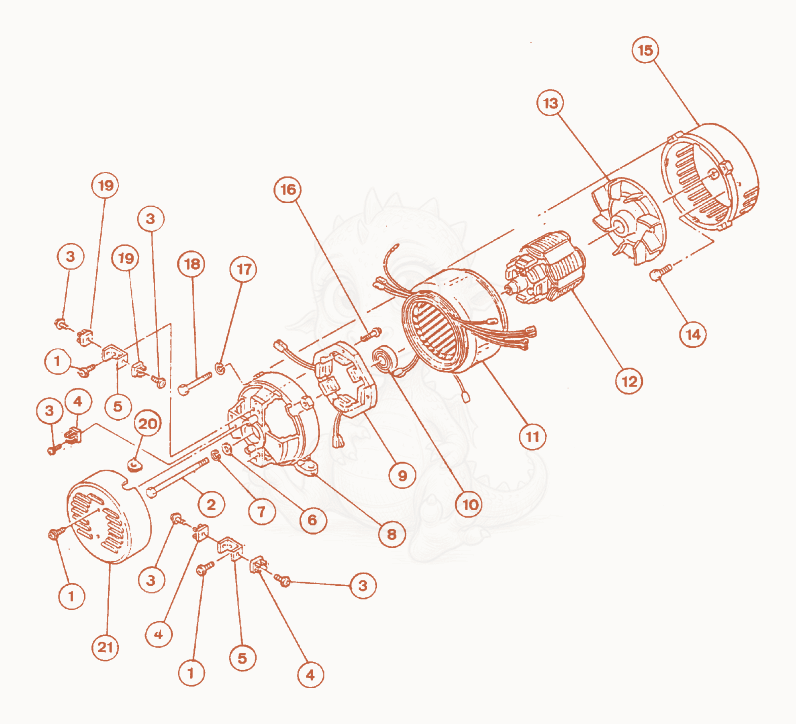

Exploded parts diagram of the Generator of a Wacker Neuson GH3500E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000075002Not stocked
    Screw×8
  • 25000074591Not stocked
    Flat head screw×1
  • 35000074997Not stocked
    Screw×5
  • 45000074998
    $55.08
    NLA DIODE-SILICON,S15VB40 - 5000074998×4
  • 55000075036Not stocked
    Mounting bracket×2
  • 65000075029Not stocked
    Washer×1
  • 75000075028Not stocked
    Lock washer×1
  • 85000074587
    $539.37
    NLA BRACKET-END - 5000074587×1
  • 95000077981Not stocked
    Stator×1
  • 95000077977Not stocked
    Stator×1
  • 105000074573Not stocked
    Ball bearing×1
  • 115000077982Not stocked
    Stator×1
  • 115000077978Not stocked
    Stator×1
  • 125000074570Not stocked
    Rotor×1
  • 135000074572
    $273.93
    NLA FAN - 5000074572×1
  • 145000075007Not stocked
    Screw×4
  • 155000074584Not stocked
    Bracket×1
  • 175000075000Not stocked
    Lock washer×4
  • 185000075083Not stocked
    Hexagonal head cap screw×4
  • 195000075020
    $91.01
    NLA DIODE-SILICON,S25VB40 - 5000075020×2
  • 205000075027Not stocked
    Grommet×1
  • 215000074589Not stocked
    Cover×1
