GH3500E Crankcase cpl. Diagram

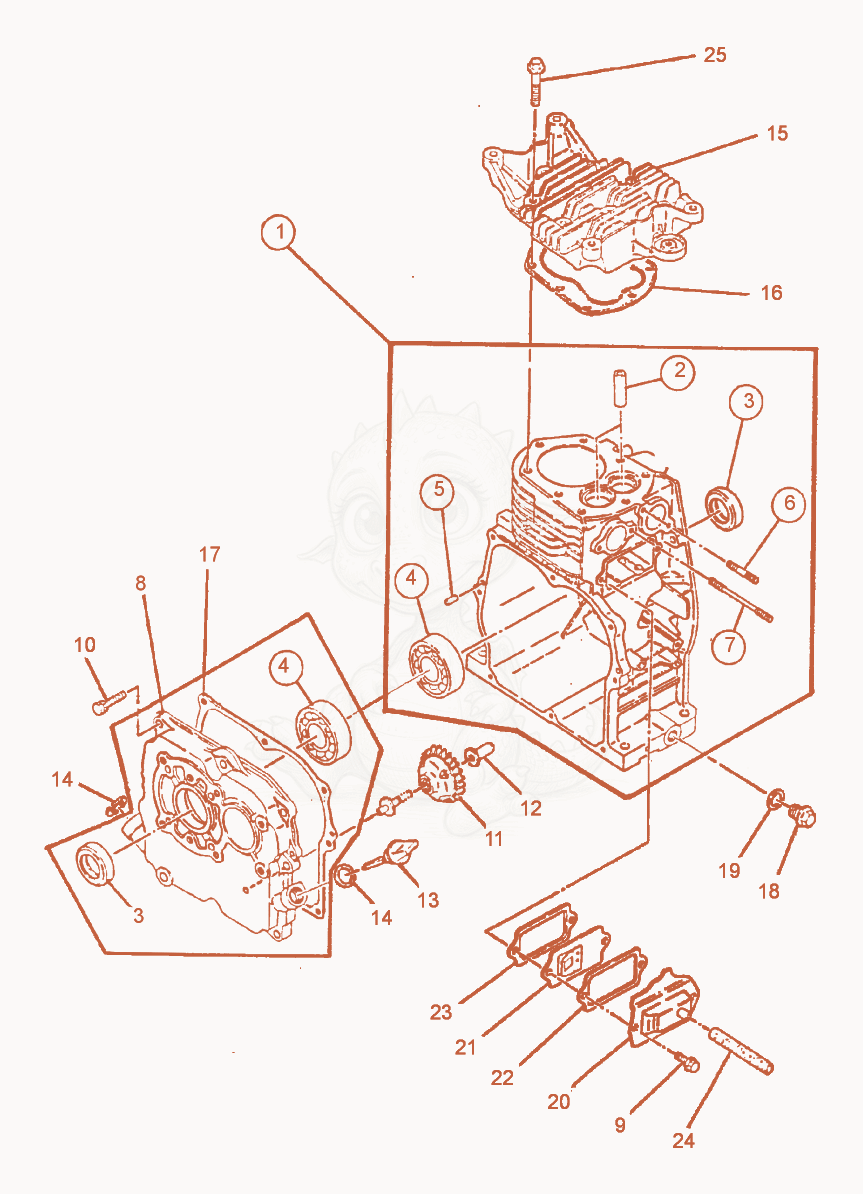

Exploded parts diagram of the Crankcase cpl. of a Wacker Neuson GH3500E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000077464Not stocked
    Crankcase cpl.×1
  • 25000053594
    $104.43
    GUIDE-ENGINE VALVES - 5000053594×2
  • 35000044773
    $31.25
    SEAL-SHAFT 30 X 45 X 8,2B - 5000044773×2
  • 45000044772
    $43.03
    BEARING-RADIAL BALL,6206 - 5000044772×2
  • 55000053598
    $0.98
    PIN-DOWEL TYPE - 5000053598×2
  • 65000075214
    $1.56
    STUD 5/16-18 X 1-1/8 - 5000075214×2
  • 75000077390Not stocked
    Stud×2
  • 85000077465
    $178.33
    COVER-ENGINE CRANKCASE - 5000077465×1
  • 95000156597
    $2.49
    BOLT-FLANGE - 5000156597×2
  • 105000075220Not stocked
    Screw w/washer×8
  • 115000075217
    $48.29
    GEAR-ENGINE GOVERNOR - 5000075217×1
  • 125000029436
    $11.62
    SLEEVE-ENGINE GOVERNOR - 5000029436×1
  • 135000158415
    $8.64
    DIPSTICK COMPLETE - 5000158415×1
  • 145000075754
    $0.98
    SEAL-RING - 5000075754×2
  • 155000077466
    $109.43
    HEAD-ENGINE CYLINDER - 5000077466×1
  • 165000075212
    $20.49
    GASKET-CYLINDER HEAD - 5000075212×1
  • 175000075216
    $2.69
    GASKET-GEAR CASE COVER - 5000075216×1
  • 185000054771
    $15.61
    PLUG-OIL DRAIN - 5000054771×2
  • 195000029327
    $0.72
    SEAL-RING - 5000029327×2
  • 205000077467
    $24.57
    COVER-VALVE TAPPETS - 5000077467×1
  • 225000077468
    $11.25
    GASKET-TAPPET COVER - 5000077468×1
  • 235000077469Not stocked
    Gasket×1
  • 245000053608
    $23.27
    HOSE 8 X 11 X 75MM LG,RUBBER - 5000053608×1
  • 255000053607
    $7.28
    SCREW M8 X 40,HEX.FLANGE - 5000053607×8
