GH3500E-GENERATOR

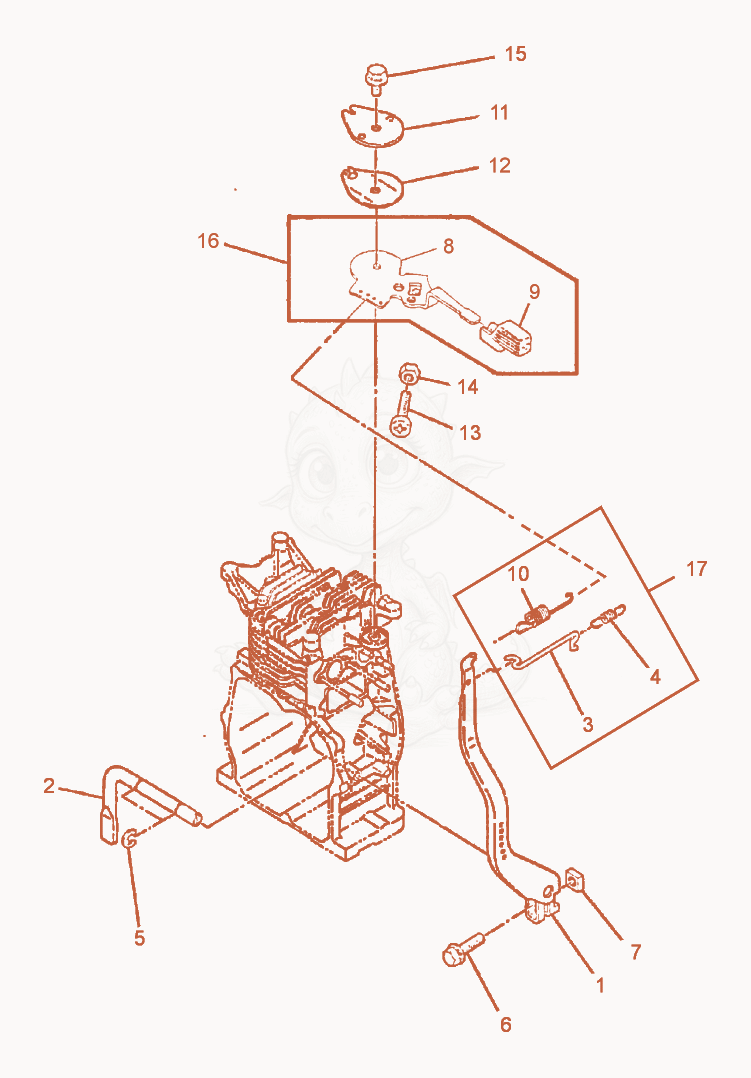

GH3500E Governor Diagram

Exploded parts diagram of the Governor of a Wacker Neuson GH3500E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000077479
    $22.34
    LEVER-GOVERNOR - 5000077479×1
  • 25000077480
    $11.04
    SHAFT-GOVERNOR CONTROL - 5000077480×1
  • 55000053639
    $0.26
    RET.RING-EXT 6MM,E-TYP - 5000053639×2
  • 65000077397Not stocked
    Screw w/washer×1
  • 75000077396Not stocked
    Nut×1
  • 85000077483Not stocked
    Control lever×1
  • 95000053645
    $38.43
    KNOB - 5000053645×1
  • 115000053647Not stocked
    Plate×1
  • 125000053646
    $2.94
    WASHER-LOCK - 5000053646×1
  • 135000077484
    $0.65
    SCREW M6 X 40 - 5000077484×1
  • 145000053650
    $0.58
    NUT M6,HEX - 5000053650×1
  • 155000053648
    $2.65
    SCREW M6 X 14,HEX.FLANGE - 5000053648×1
  • 165000077482Not stocked
    Lever×1
  • 175000075233
    $6.73
    SPRING-GOVERNOR & LINK - 5000075233×1
