GH3500E Control Box Diagram

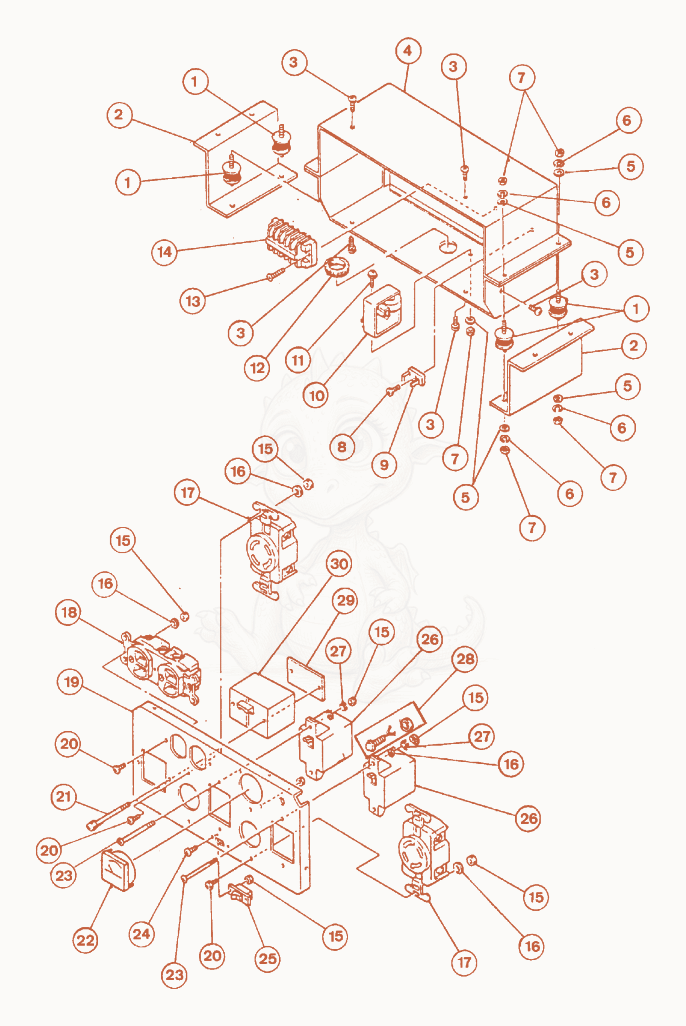

Exploded parts diagram of the Control Box of a Wacker Neuson GH3500E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000075077Not stocked
    Shockmount×4
  • 25000075078Not stocked
    Bracket×2
  • 35000075081Not stocked
    Pan head screw×5
  • 45000075069Not stocked
    Housing×1
  • 55000075021Not stocked
    Washer×9
  • 65000075000Not stocked
    Lock washer×9
  • 75000075010Not stocked
    Nut×9
  • 85000074992Not stocked
    Screw×1
  • 95000074998
    $55.08
    NLA DIODE-SILICON,S15VB40 - 5000074998×1
  • 105000075031
    $461.33
    NLA MODULE-IDLE/SLOW DOWN UNIT - 5000075031×1
  • 115000075032Not stocked
    Screw×1
  • 125000075076Not stocked
    Bushing×1
  • 135000075082Not stocked
    Pan head screw×2
  • 145000075075Not stocked
    Terminal×1
  • 155000075011Not stocked
    Nut×10
  • 165000075015Not stocked
    Washer×10
  • 175000075071Not stocked
    Receptacle (socket)×2
  • 185000074611
    $95.92
    RECEPTACLE-ELE,125V/20A - 5000074611×1
  • 195000075070Not stocked
    Control panel×1
  • 205000074993Not stocked
    Screw×6
  • 215000075079Not stocked
    Screw w/washer×2
  • 225000077960
    $252.51
    METER-VOLTAGE,0-300V (KY501K) - 5000077960×1
  • 235000075080Not stocked
    Pan head screw×4
  • 245000074994Not stocked
    Screw×6
  • 255000074622Not stocked
    Rocker switch×1
  • 265000075072
    $329.01
    BREAKER 5A/220V,TYPE Y32B - 5000075072×2
  • 275000075089Not stocked
    Lock washer×4
  • 285000074613
    $34.49
    NLA LIGHT-PILOT,CONTROL BOX - 5000074613×1
  • 295000075074Not stocked
    Bracket×1
  • 305000075073Not stocked
    Circuit breaker×1
