GH3500E-GENERATOR

GH3500E Crankshaft/Piston Diagram

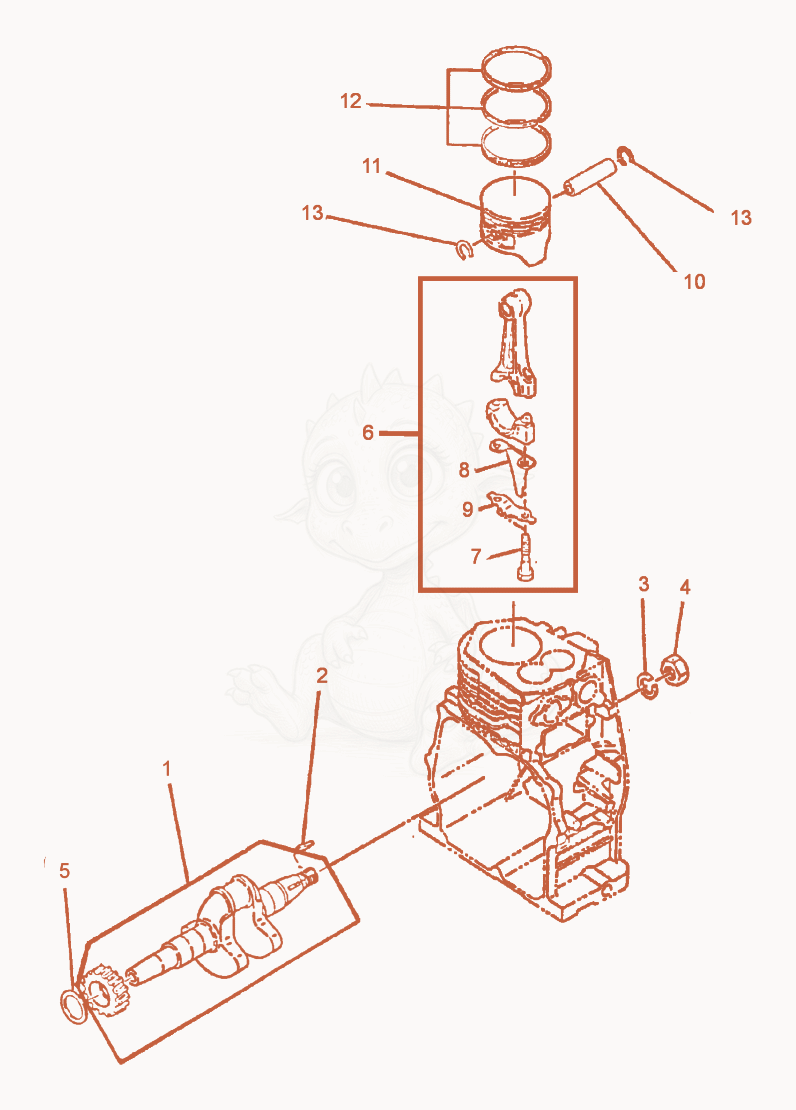

Exploded parts diagram of the Crankshaft/Piston of a Wacker Neuson GH3500E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000077470Not stocked
    Crankshaft×1
  • 25000044777Not stocked
    Woodruff key×1
  • 35000075227
    $2.30
    WASHER-LOCK - 5000075227×1
  • 45000075228
    $4.08
    NUT-FLYWHEEL MOUNTING - 5000075228×1
  • 55000075223Not stocked
    Shim×1
  • 55000075224Not stocked
    Shim×1
  • 55000075225
    $1.47
    SHIM-1.0MM,CRANKSHAFT ADJUSTMT - 5000075225×1
  • 65000075226
    $136.02
    CONNECTING ROD COMPLETE - 5000075226×1
  • 75000077471
    $3.40
    BOLT-CONNECTING ROD - 5000077471×2
  • 85000077472
    $3.51
    DIPPER-ENGINE OIL - 5000077472×1
  • 95000077473
    $3.19
    PLATE-BOLT RETRAINER - 5000077473×1
  • 105000075229
    $28.67
    PIN-PISTON MOUNT - 5000075229×1
  • 115000075231
    $73.52
    PISTON 75MM DIA,STANDARD - 5000075231×1
  • 125000075230Not stocked
    Set-piston rings×1
  • 135000013437
    $1.18
    RET.RING 15.5MM,FORM C - 5000013437×1
