RD11V-ROLLER,DOUBLE DRUM

RD11V Starter Wire Connection Diagram

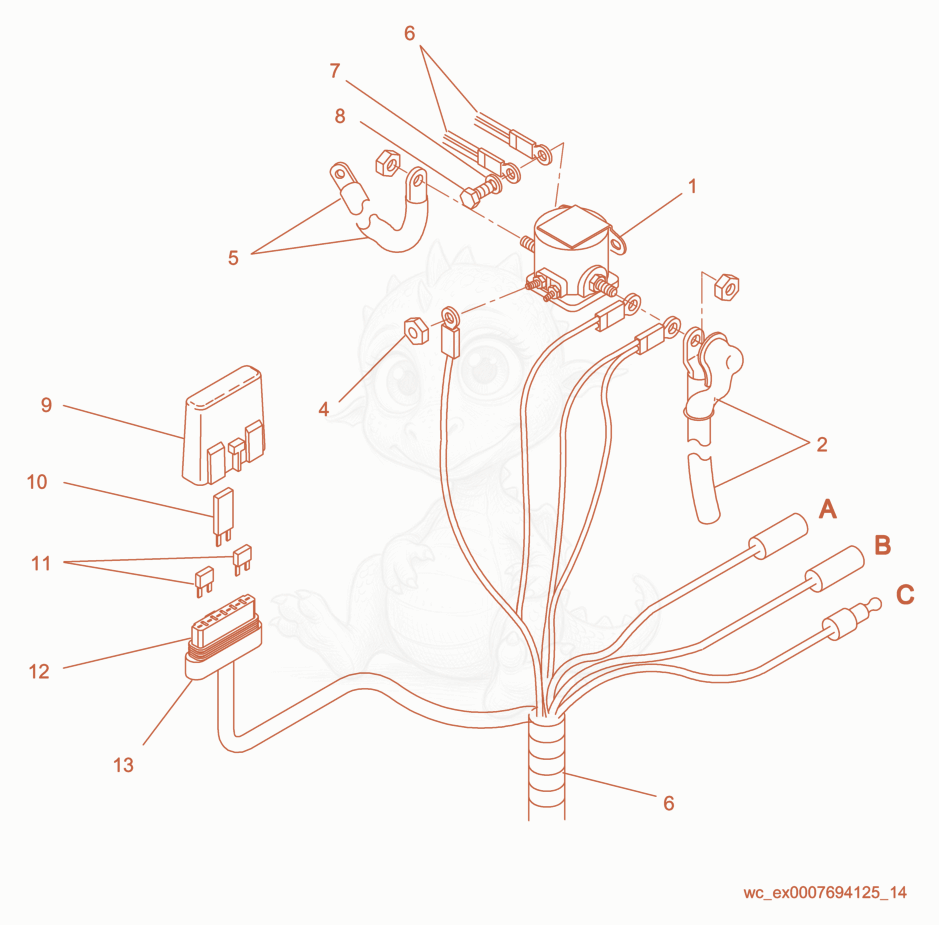

Exploded parts diagram of the Starter Wire Connection of a Wacker Neuson RD11V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000080774
    $71.52
    SOLENOID-STARTER 12VDC,4 TERM - 5000080774×1
  • 25000157187
    $33.48
    CABLE-BATTERY,POSITIVE - 5000157187×1
  • 45000028756
    $0.04
    NUT-LOCK #10-32,HEX,NYL.INSERT - 5000028756×2
  • 55000075456
    $24.12
    CABLE-BATTERY LEAD,GRND STRAP - 5000075456×1
  • 65000153569
    $560.07
    WIRE HARNESS,MAIN - 5000153569×1
  • 75000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 85000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×1
  • 95000153782
    $14.10
    CAP-CONNECTOR,FUSE - 5000153782×1
  • 105000153490
    $17.85
    BREAKER-20A,MINI BLADE TYPE - 5000153490×1
  • 115000153489
    $0.42
    FUSE-20A,MINI BLADE TYPE - 5000153489×2
  • 125000153783
    $6.97
    BODY-CONNECTOR,FUSE - 5000153783×1
  • 135000153784
    $0.89
    LOCK-CONNECTOR,SECONDARY - 5000153784×1
