RD11V-ROLLER,DOUBLE DRUM

RD11V Engine Block Diagram

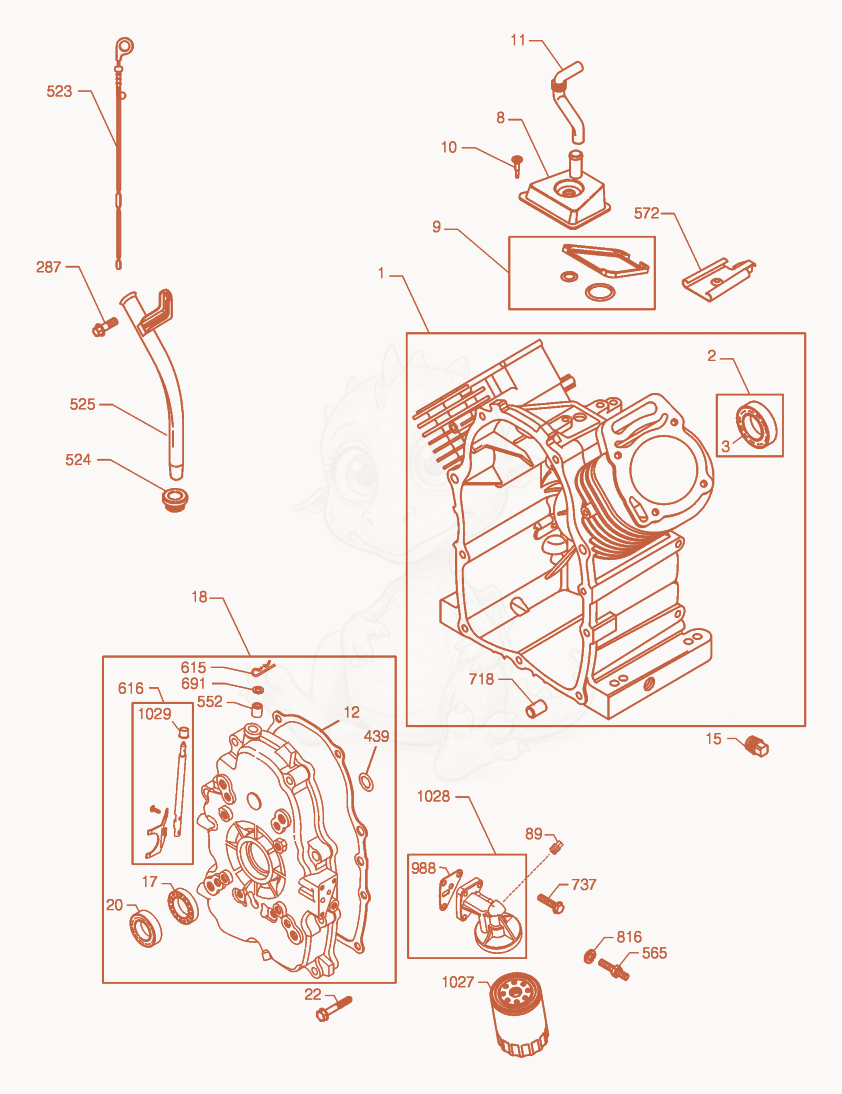

Exploded parts diagram of the Engine Block of a Wacker Neuson RD11V, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000118498
$1,037.81
CYLINDER BLOCK ASSY. - 5000118498×1
25000118519
$33.80
Bushing - 5000118519×1
35000081053
$8.23
SEAL-SHAFT - 5000081053×1
85000160159
$86.27
BREATHER ASSEMBLY - 5000160159×1
95000160160
$11.01
X-5200002290 GASKET-BREATHER - 5000160160×1
105000118451
$11.33
SCREW-BREATHER - 5000118451×1
115000118506Not stocked
Breather tube×1
125000081020
$73.01
GASKET-CRANKCASE COVER - 5000081020×1
155000039610Not stocked
Oil plug×1
175000110082
$59.57
BEARING-BALL - 5000110082×1
185000081016Not stocked
Cover×1
205000081018
$15.51
SEAL-SHAFT - 5000081018×1
225000118497Not stocked
Screw×10
895000118210
$3.52
PLUG-OIL - 5000118210×1
2875000118487
$5.56
screw - 5000118487×1
4395000118494
$9.19
O-ring - 5000118494×1
5235000116503
$38.54
Dipstick - 5000116503×1
5245000116501
$8.81
SEAL - DIPSTICK TUBE - 5000116501×1
5255000116502
$36.03
TUBE-OIL FILL - 5000116502×1
5525000118441
$12.47
BUSHING-CRANK,GOVERNOR - 5000118441×1
5655000081025
$6.70
Stud - 5000081025×3
5725000080981
$24.94
Baffle - 5000080981×1
6155000118478
$7.25
PIN-COTTER - 5000118478×1
6165000080988
$52.34
YOKE-GOVERNOR CONTROL - 5000080988×1
6915000118432
$8.24
X-5200001345 SEAL-SHAFT,GOVERNOR - 5000118432×1
7185000081032Not stocked
Dowel pin×1
7375000118431
$5.56
Screw w/washer - 5000118431×3
8165000081026
$6.40
WASHER-LOCK - 5000081026×3
9885000079752
$6.70
GASKET-OIL ADAPTER - 5000079752×1
10275000160161
$23.56
X-0110075 FILTER-OIL - 5000160161×1
10285000081023
$311.95
ADAPTER-OIL FILTER MOUNT - 5000081023×1
10295000118442
$16.19
BUSHING-CRANK,GOVERNOR - 5000118442×1
