RD11V-ROLLER,DOUBLE DRUM

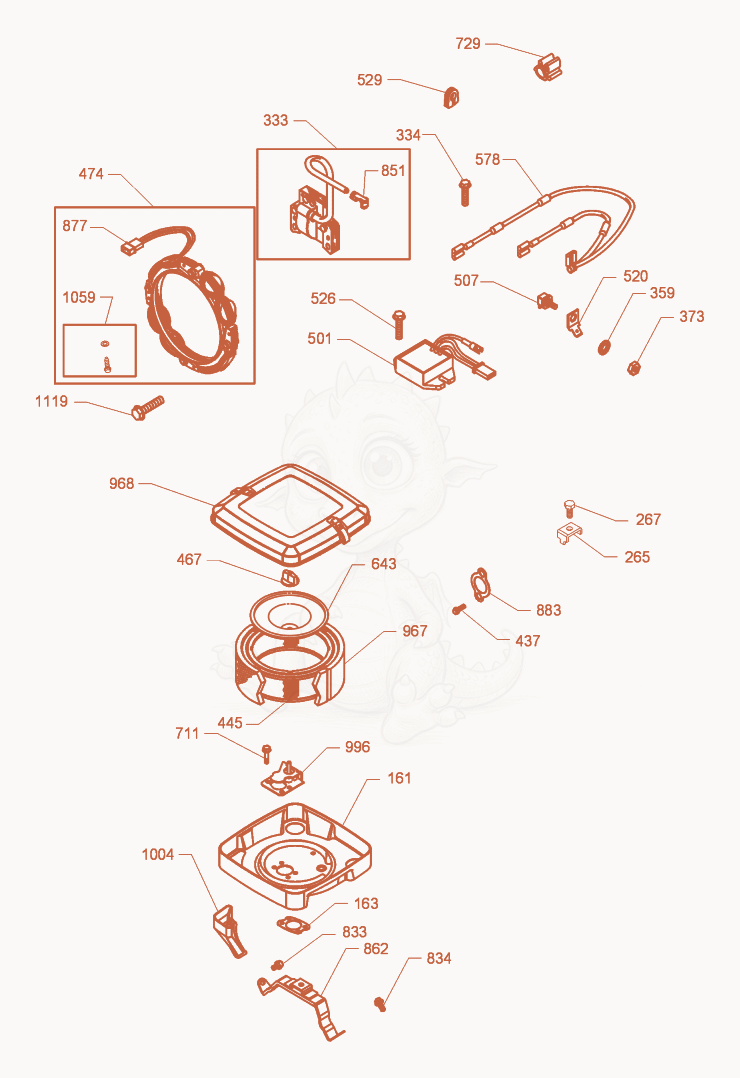

RD11V Air Cleaner/Alternator Diagram
- HOUSING-AIR CLEANER - 5000118480×1
- GASKET-AIR CLEANER MOUNT - 5000083242×1
- Clamp - 5000030958×1
- screw - 5000080926×1
- COIL-IGNITION - 5000080935×1
- Screw - 5000080941×2
- Washer - 5000118246×1
- Nut - 5000116489×1
- screw - 5000080944×2
- ELEMENT-AIR CLEANER - 5000081068×1
- KNOB-AIR CLEANER - 5000082603×1
- stator - 5000080942×1
- REGULATOR - 5000080933×1
- Insulator - 5000118484×1
- TERMINAL-GROUND - 5000118247×1
- SCREW 1/4-20 X 3/8 W/FW,HEX - 5000084732×2
- grommet - 5000118448×1
- WIRE-ASSEMBLY - 5000083701×1
- HOLDER-AIR CLEANER - 5000082604×1
- Screw - 5000118437×4
- CLIP-WIRE - 5000118428×1
- Screw - 5000160165×1
- 8345000118496Not stockedScrew×1
- TERMINAL-CABLE - 5000110094×1
- STRAP-AIR CLEANER - 5000118493×1
- WIRING HARNESS-ALTERNATOR - 5000118423×1
- GASKET-EXHAUST MANIFOLD - 5000080943×1
- FILTER-AIR,PRECLEANER - 5000081069×1
- COVER-AIR CLEANER - 5000082602×1
- GUARD-SHIELD,CARBURETOR - 5000082605×1
- NLA BAFFLE-AIR - 5000118447×1
- SCREW W/WASHER (SET OF FOUR) - 5000160170×1
- SCREW-ALTERNATOR - 5000119795×2
