RD11V-ROLLER,DOUBLE DRUM

RD11V Electric Starter Diagram

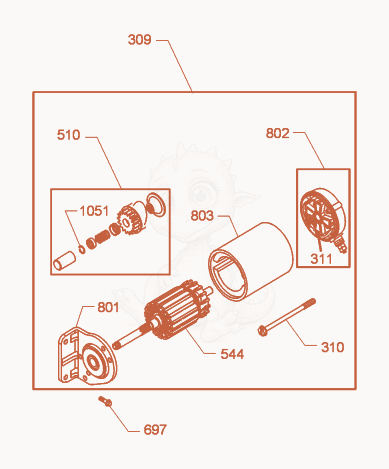

Exploded parts diagram of the Electric Starter of a Wacker Neuson RD11V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 3095000118481
    $382.88
    MOTOR-STARTER - 5000118481×1
  • 3105000111582
    $10.12
    NLA SCREW-HEX - 5000111582×2
  • 3115000111591
    $44.68
    BRUSH SET - 5000111591×1
  • 5105000111583
    $77.35
    GEAR-DRIVE,STARTER - 5000111583×1
  • 5445000118456Not stocked
    Rotor×1
  • 6975000118487
    $5.56
    screw - 5000118487×2
  • 8015000118521
    $71.84
    NLA-CAP-DRIVE - 5000118521×1
  • 8025000111587
    $128.77
    CAP-END,W/BRUSH SET - 5000111587×1
  • 8035000118455
    $130.14
    HOUSING-STARTER - 5000118455×1
  • 10515000118468
    $7.00
    Retaining ring - 5000118468×1
