RD11V-ROLLER,DOUBLE DRUM

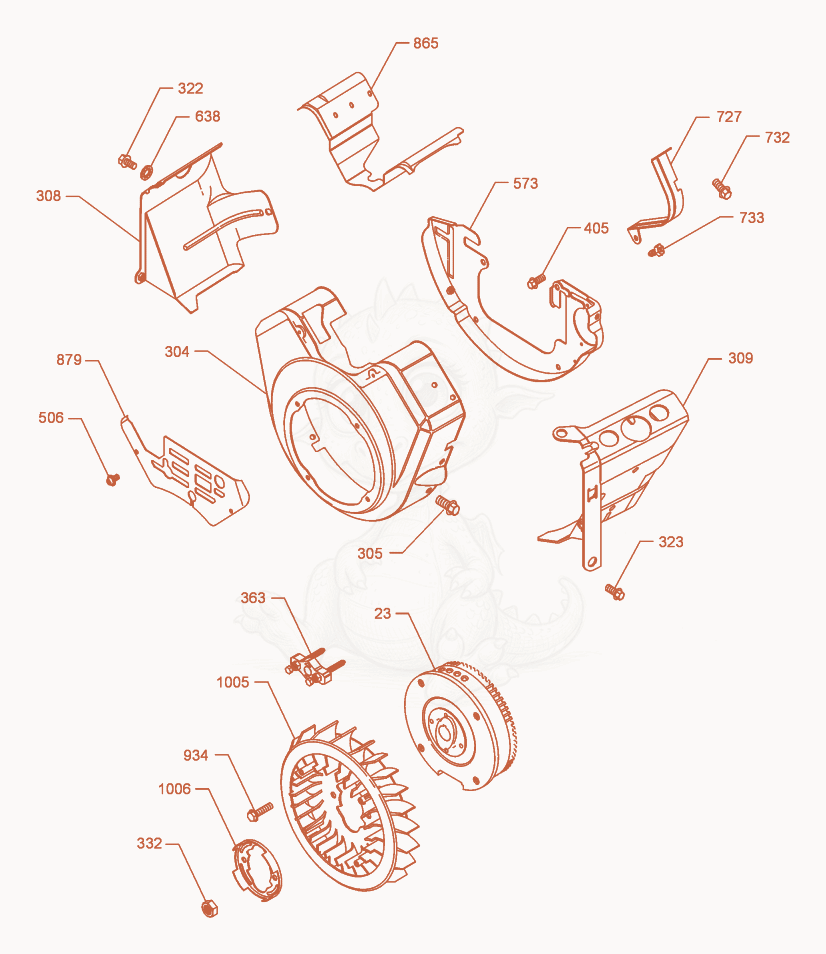

RD11V Flywheel/Blower Housing Diagram

Exploded parts diagram of the Flywheel/Blower Housing of a Wacker Neuson RD11V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 235000160166
    $756.89
    Flywheel Kit 5000160166×1
  • 3045000118463
    $387.38
    HOUSING-BLOWER - 5000118463×1
  • 3055000080945
    $9.19
    Screw - 5000080945×6
  • 3085000118499Not stocked
    Air guide cover×1
  • 3095000118500
    $37.19
    X-5000209183 COVER-AIR GUIDE - 5000118500×1
  • 3225000118496Not stocked
    Screw×3
  • 3235000084732
    $6.40
    SCREW 1/4-20 X 3/8 W/FW,HEX - 5000084732×2
  • 3325000110095
    $8.77
    Nut - 5000110095×1
  • 3635000116487
    $45.45
    PULLER-FLYWHEEL - 5000116487×1
  • 4055000160167
    $6.40
    Screw - 5000160167×4
  • 5065000118430
    $6.40
    Screw - 5000118430×2
  • 5735000118460
    $76.71
    X-5000208221 PLATE-BACK - 5000118460×1
  • 6385000118479
    $7.79
    washer - 5000118479×3
  • 7275000118445Not stocked
    Cover×1
  • 7325000118437
    $5.56
    Screw - 5000118437×1
  • 7335000118496Not stocked
    Screw×1
  • 8655000118450
    $39.92
    COVER-AIR GUIDE - 5000118450×1
  • 8795000118453
    $49.72
    COVER-CARBURETOR - 5000118453×1
  • 9345000039653
    $3.43
    SCREW 5/16-18 X 3/4,HX.HD. - 5000039653×2
  • 10055000118461
    $82.54
    FLYWHEEL-FAN - 5000118461×1
  • 10065000118427
    $27.26
    HOLDER-FAN - 5000118427×1
