RD11V-ROLLER,DOUBLE DRUM

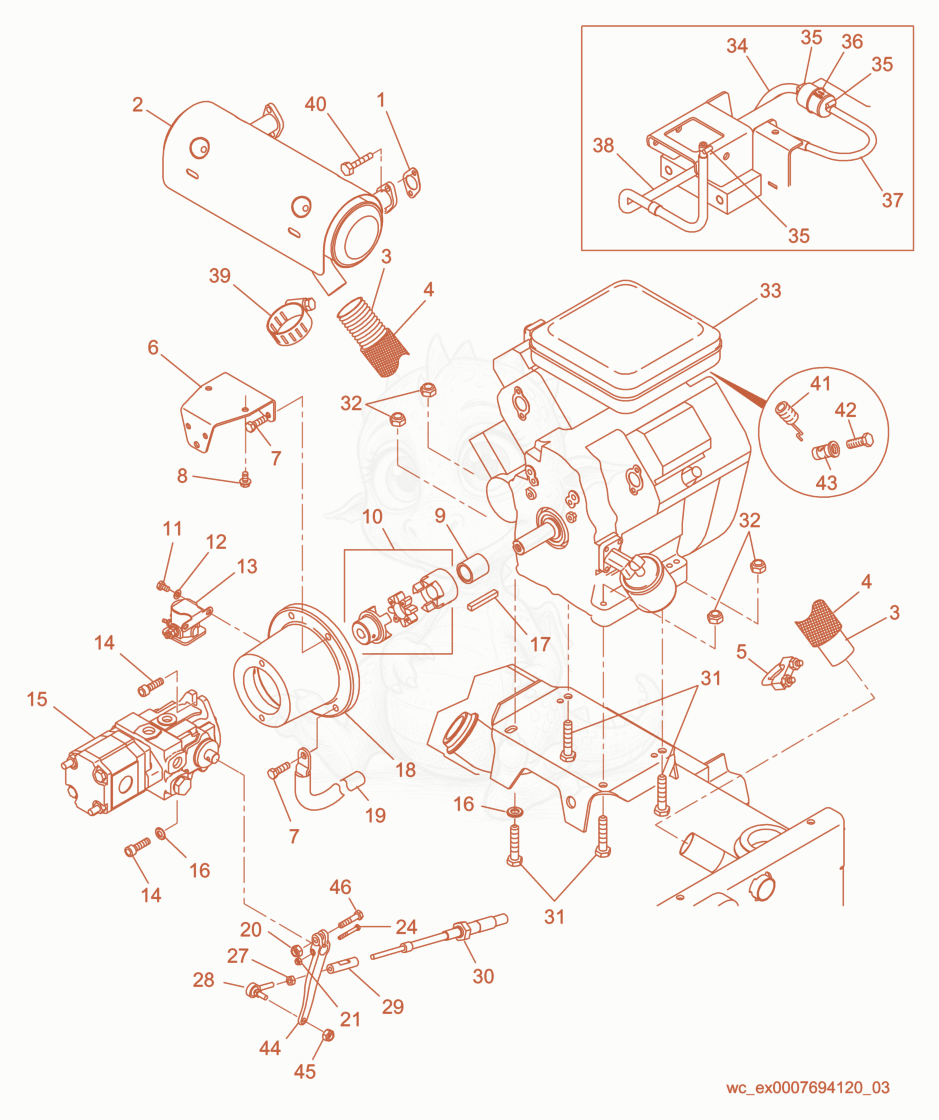

RD11V Engine Compartment Diagram
- GASKET-EXHAUST MANIFOLD - 5000080943×2
- Muffler Vanguard 5000113860×1
- HOSE-EXHAUST,EXTENSION - 5000111987×1
- INSULATOR-MUFFLER,THERMO 17 - 5000112283×1
- CLAMP-MUFFLER - 5000079578×1
- SUPPORT-MUFFLER - 5000111068×1
- SCREW 3/8-16 X 1-1/4 GR5,HX.HD - 5000025555×4
- SCREW M8X12 HX.HD.SERR.FLANGE - 5000111040×2
- SPACER-SHAFT - 5000111314×1
- COUPLING-SHAFT - 5000111315×1
- SCREW M6 X 16 HX.HD. - 5000014663×2
- WASHER B6.4 FLAT - 5000010624×2
- SOLENOID-STARTER 12VDC,4 TERM - 5000080774×1
- SCREW M10 X 35 SOC.HD. - 5000011533×2
- PUMP-HYDRAULIC, DRIVE - 5000111062×1
- WASHER B10.5 FLAT - 5000010621×1
- KEY-SQUARE 1/4 X 7/8 - 5000052027×1
- ADAPTER-ENGINE/PUMP - 5000111571×1
- 195000111333Not stockedBattery cable×1
- NUT-LOCK M8 HEX - 5000010367×1
- NUT-LOCK M5 HEX. - 5000010369×1
- SCREW M5 X 40 HX.HD - 5000011364×1
- NUT-HEX,LH 1/4-28 UNF - 5000111336×1
- ROD END-BALL JOINT - 5000111334×1
- COUPLING-TURNBUCKLE - 5000111335×1
- CABLE-TRANSMISSION CONTROL - 5000111555×1
- SCREW M8 X 50 HX.HD. - 5000011343×4
- NUT-LOCK M8 HEX - 5000010367×4
- ENGINE-VANGUARD, TYPE 1306 - 5000159385×1
- HOSE-FUEL, 1/4 X 12.00 LONG - 5000114758×1
- WRAP-SPIRAL, 1/2 X 12.00 LG - 5000114760×1
- CLAMP-THREADED,.21-.63 - 5000028707×3
- 365000081359Not stockedFuel filter×1
- HOSE-FUEL,1/4 X 44.50 LONG - 5000114757×1
- WRAP-SPIRAL, 1/2 X 42.00 LG - 5000114761×1
- CLAMP-THREADED,1.56-2.50 - 5000112287×1
- screw - 5000080944×4
- LINK-THROTTLE CONTROL CABLE - 5000074256×2
- SCREW #8-32 X 1/4,HX.HD.MACH. - 5000028329×2
- CONNECTOR-WIRE SWIVEL - 5000028330×2
- LEVER-PUMP - 5000115707×1
- NUT-LOCK 1/4-28,HEX,NYLON INS. - 5000028746×1
- SCREW M8 X 30 HX.HD. - 5000011456×1
