RD25 ROLLER,DOUBLE DRUM

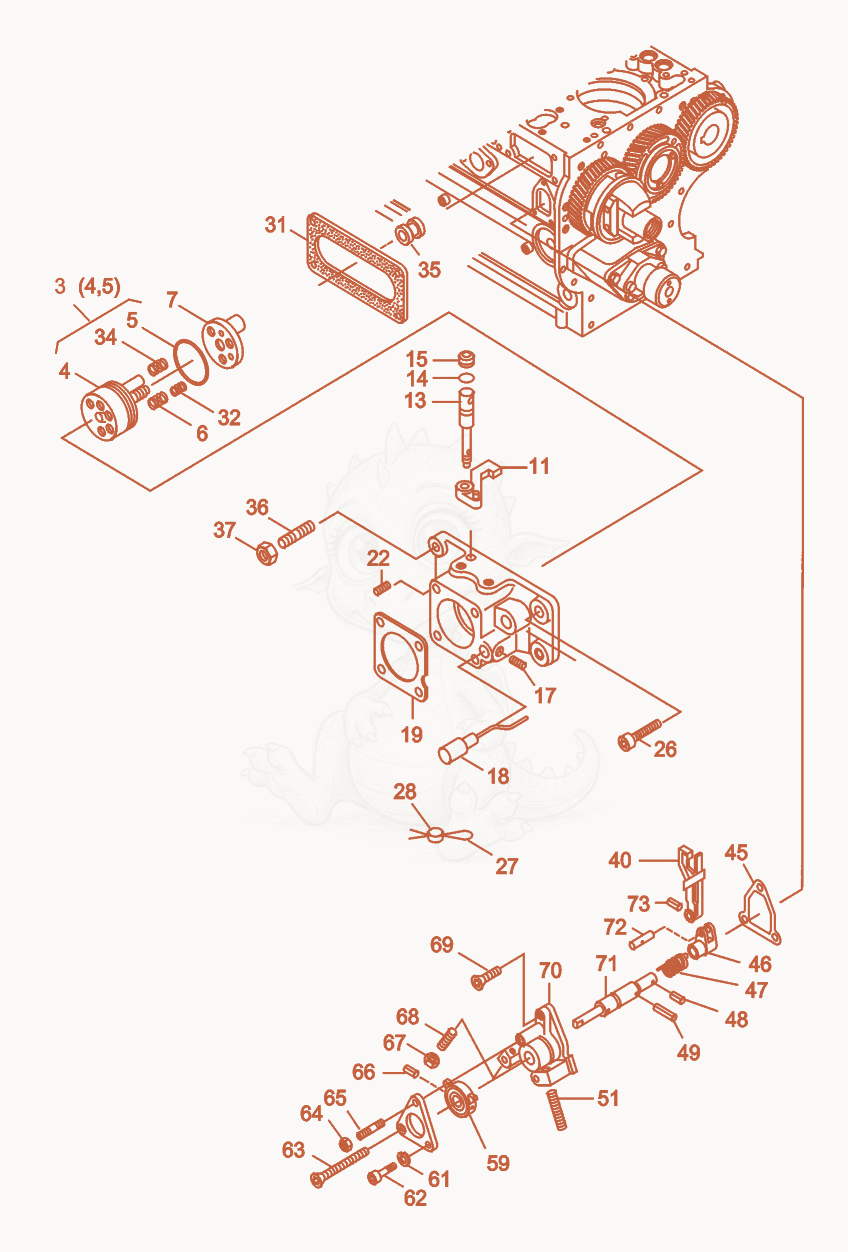

RD25 Speed Control/Extra Fuel Device Diagram
- CONTROL-PISTON ASSEMBLY - 5000107705×1
- O-ring - 5000107706×1
- SPRING-PRESSURE - 5000107707×3
- ECCENTRIC - 5000107708×1
- Lever - 5000107710×1
- Shaft - 5000107711×1
- O-RING 4.5 X 1.8-70 Sh - 5004102230×1
- SEAL-RING,RUBBER - 5000067273×1
- STUD M4X10 - 5000107712×2
- Pin - 5000107713×1
- GASKET - 5000107714×1
- PIN M6X10,THREADED - 5000107715×3
- SCREW M8X20,ALLEN - 5000107716×1
- WIRE 0.5-0.3 - 5000201400×1
- SEAL 8MM - 5000201399×1
- GASKET-SIDE COVER - 5000107717×1
- SPRING-PRESSURE - 5000107718×3
- SPRING-PRESSURE - 5000107719×1
- Spring - 5000107720×1
- STUD - 5000107721×1
- NUT-HEX M8 8 C3A - 5000151530×1
- LEVER-GOVERNOR - 5000107635×1
- GASKET - 5000107638×1
- CONTROL-FORK,SPEED - 5000107636×1
- Spring - 5000107637×1
- PIN-ROLL 4X12 - 5000107640×1
- PIN-ROLL 4X26 - 5000107639×1
- SCREW-SET - 5000107629×1
- PLATE-STOP - 5000107628×1
- WASHER-LOCK 8 - 5000201404×1
- SCREW M8 X 70,ALLEN - 5000201364×1
- SCREW M8 X 70,COUNTERSUNK - 5000201383×1
- NUT-HEX M8 8 C3A - 5000151530×1
- STUD M8 X 40 - 5000201378×1
- PIN 5X40 - 5000107627×1
- NUT M8 - 5000107270×1
- STUD M8 X 50 - 5000201389×1
- SCREW M8 X 20,COUNTERSUNK - 5000201382×1
- SEAL-RING,HEAD - 5000151303×1
- SHAFT-CONTROL - 5000107632×1
- Pin - 5000107633×1
- PIN 3X14 - 5000107634×1
