RD25 ROLLER,DOUBLE DRUM

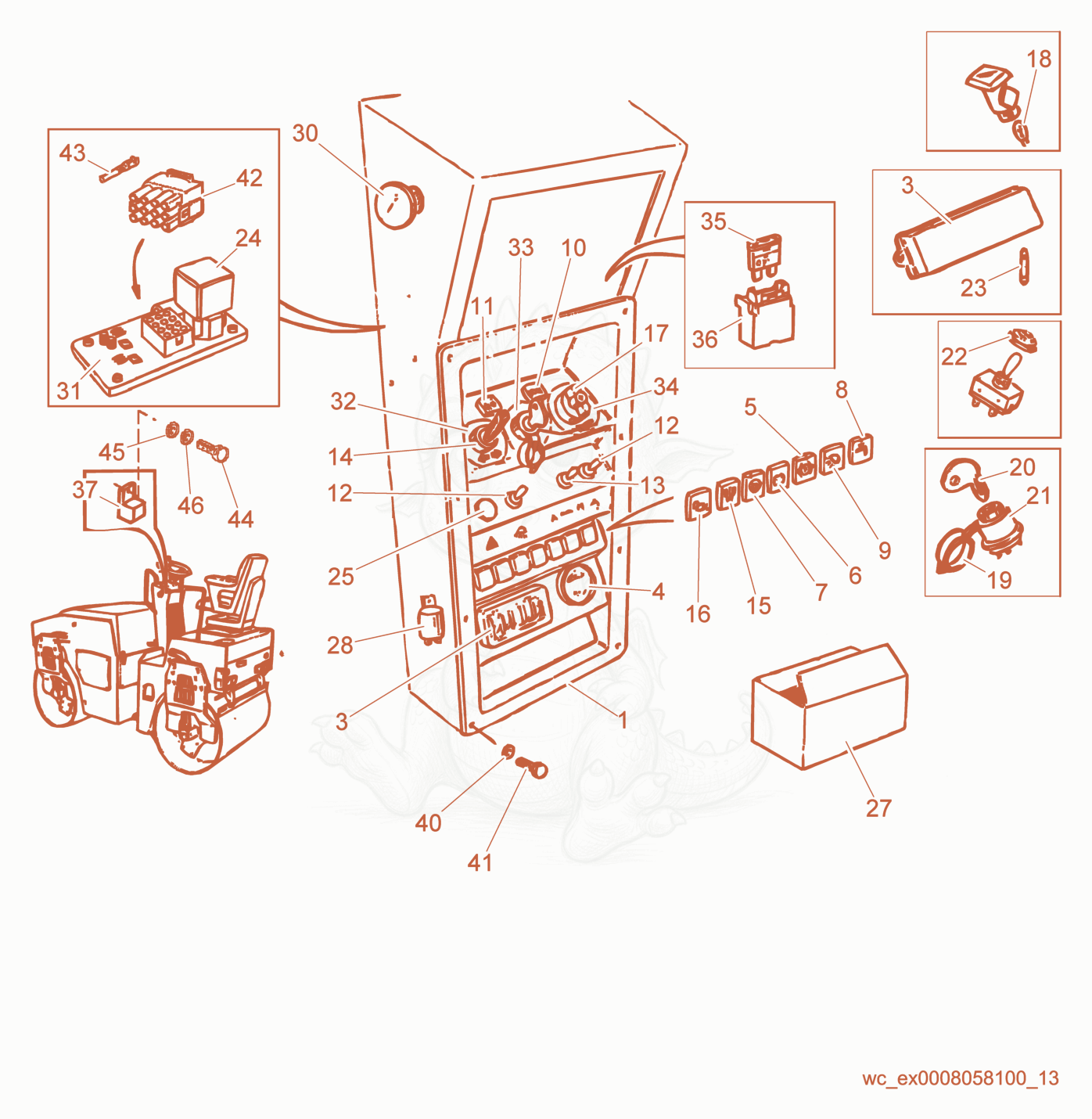

RD25 Instruments Panel Diagram
- 5000115003$7,462.16NLA WIRING HARNESS,RD25 - 5000115003×1
- PANEL - 5000112878×1
- BOX-FUSE - 5000112557×1
- HOURMETER - 5000119297×1
- Light-warning - 5000112523×1
- Light-warning - 5000112521×1
- LIGHT-WARNING - 5000112528×1
- Light-warning - 5000112520×1
- Light-warning - 5000112525×1
- Light-warning - 5000112524×1
- NLA LIGHT-WARNING - 5000112527×1
- Switch - 5000110153×2
- Switch - 5000110154×1
- Switch - 5000110152×1
- Light-warning - 5000112860×1
- Light-warning - 5000112522×1
- Switch - 5000112682×1
- LIGHT - 5000112536×9
- KEY-PROTECTION - 5000112870×1
- KEY - 5000112545×1
- BLOCK-IGNITION - 5000113294×1
- NLA CAP - 5000113296×3
- FUSE 25A - 5000112871×1
- FUSE 16A - 5000112867×1
- Relay - 5000155414×1
- PLUG - 5000112869×1
- KIT-CONTROL PANEL,RD25 - 5000151623×1
- INDICATOR-FLASHING LIGHT - 5000113303×1
- SWITCH-PUSH BUTTON - 5000110161×1
- MODULE-CIRCUIT BOARD - 5000112531×1
- INDICATOR-PLATE - 5000112872×1
- INDICATOR-PLATE - 5000112873×1
- NLA INDICATOR-PLATE - 5000112874×1
- FUSE 40A - 5000113304×1
- BRACKET-FUSE SUPPORT - 5000112561×1
- RELAY-MICRO - 5000113503×1
- NLA WASHER - 5000112827×8
- NLA BOLT - 5000112762×8
- CONNECTOR HOUSING,12 POLE,PLUG - 5000158390×1
- PIN TERMINAL - 5000158417×2
- NLA BOLT - 5000112761×1
- Washer - 5000112825×1
- NLA WASHER - 5000112817×1
