RD25 ROLLER,DOUBLE DRUM

RD25 Hood Panels/Front/Rear Frame Diagram

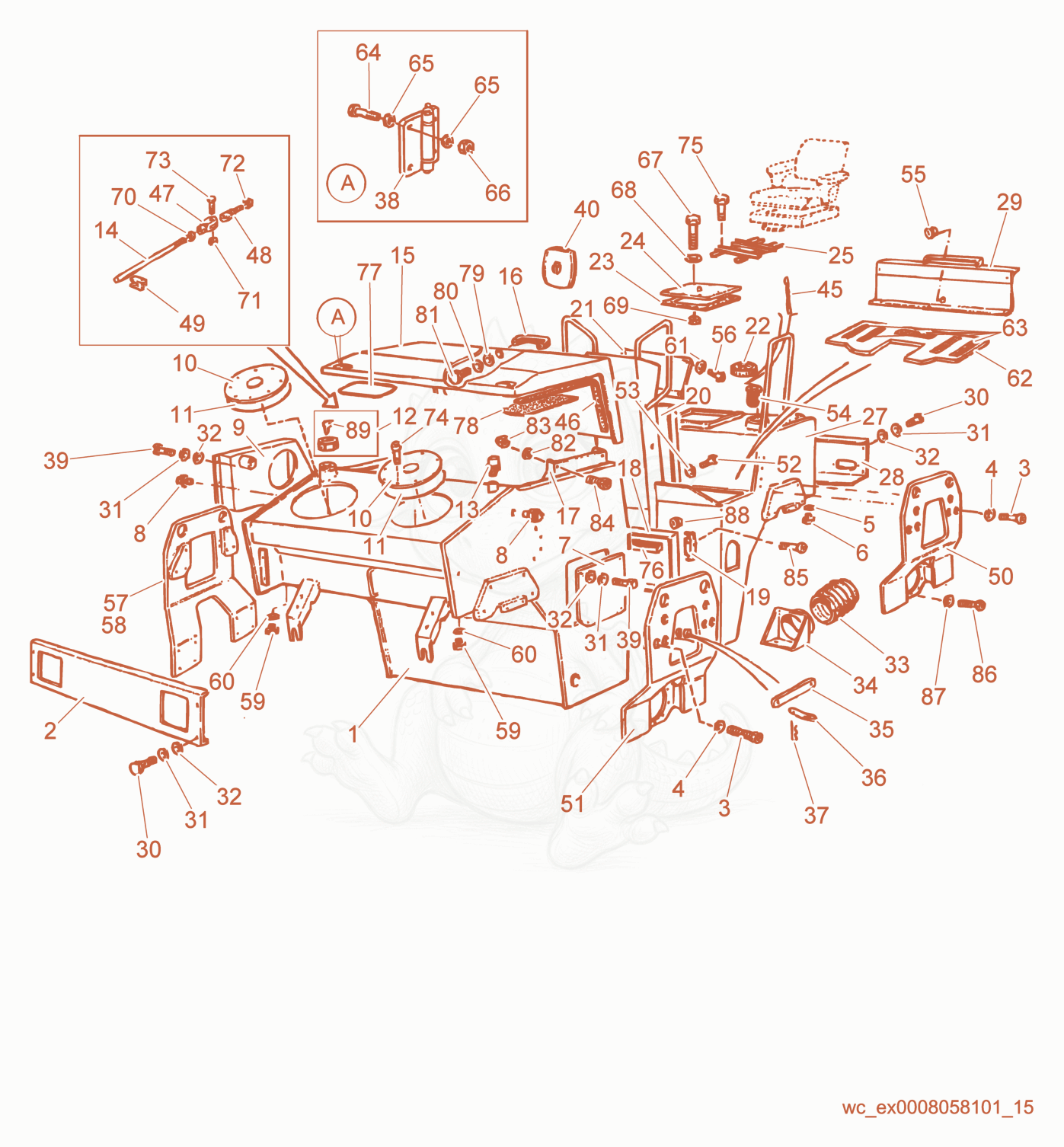

Exploded parts diagram of the Hood Panels/Front/Rear Frame of a Wacker Neuson RD25, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000113061
$70,684.60
NLA FRAME-FRONT - 5000113061×1
25000112999
$1,004.76
Plate - 5000112999×1
35000112757
$3.72
BOLT - 5000112757×24
45000112822
$11.04
NLA WASHER - 5000112822×24
55000112840
$14.67
WASHER-COPPER - 5000112840×1
65000112899
$11.19
PLUG - 5000112899×1
75000113025
$158.39
NLA COVER-LEFT - 5000113025×1
85000112722
$55.77
INDICATOR-LEVEL - 5000112722×2
95000113034
$1,497.30
BAFFLE - 5000113034×1
105000112881
$84.99
Cover - 5000112881×2
115000112885
$127.27
NLA-Gasket - 5000112885×2
125000112719Not stocked
Cap×1
135000112721
$30.10
BREATHER - 5000112721×1
145000113003
$189.62
NLA ROD - 5000113003×1
155000113063
$5,502.72
NLA HOOD - 5000113063×1
165000112728
$17.84
Handle - 5000112728×1
175000113042
$703.65
NLA BRACKET - 5000113042×1
185000113064
$731.03
COVER-ENGINE,REAR - 5000113064×1
195000112730
$28.20
LATCH - 5000112730×2
205000113023
$168.70
Cover - 5000113023×1
215000113051
$335.74
NLA COVER - 5000113051×1
225000114443
$35.45
CAP-WATER TANK - 5000114443×1
235000112884
$156.48
GASKET - 5000112884×1
245000113022
$785.96
NLA COVER - 5000113022×1
255000112993
$316.89
NLA KIT-GUIDES - 5000112993×1
275000113062
$71,508.05
NLA FRAME-REAR - 5000113062×1
285000113001
$1,512.02
NLA PANEL-REAR - 5000113001×1
295000113027
$1,138.14
NLA COVER - 5000113027×1
305000112769
$13.98
NLA BOLT - 5000112769×8
315000112820
$3.89
Washer - 5000112820×8
325000112829
$11.04
NLA WASHER - 5000112829×8
335000112974
$341.84
NLA BELLOW - 5000112974×2
345000113041
$808.40
NLA BRACKET - 5000113041×1
355000113002
$200.02
Rod - 5000113002×1
365000113008
$86.12
ROD-CONNECTING - 5000113008×1
375000112729
$24.45
NLA PIN - 5000112729×1
385000112731
$38.32
Hinge - 5000112731×2
395000112770
$1.82
BOLT - 5000112770×8
405000174793Not stocked
Support×1
405000174794Not stocked
Mirror reflector×1
455000114444
$23.93
NLA CHAIN-WATER TANK - 5000114444×1
465000112886Not stocked
Gasket×2
475000112723
$52.40
NLA FITTING-FORK - 5000112723×1
485000113043
$127.27
FITTING-ADJUSTABLE - 5000113043×1
495000112732
$6.85
Clamp - 5000112732×1
505000113013
$4,508.32
PLATE-LEFT,REAR - 5000113013×1
515000113007
$4,508.32
PLATE-LEFT,FRONT - 5000113007×1
525000112762
$13.98
NLA BOLT - 5000112762×12
535000112818
$6.99
Washer - 5000112818×12
545000112582
$45.06
FILTER-WATER - 5000112582×1
555000113754
$5.52
PLUG-RUBBER - 5000113754×2
565000112762
$13.98
NLA BOLT - 5000112762×4
575000113016
$3,981.50
Plate - 5000113016×1
585000113017
$3,981.50
Plate - 5000113017×1
595000112720
$56.40
PLUG - 5000112720×2
605000112894
$17.75
NLA RING - 5000112894×2
615000112827
$11.04
NLA WASHER - 5000112827×4
625000115554
$2,192.42
PLATE-FLOOR,REAR FRAME - 5000115554×1
635000115542
$41.97
GUARD-STRIP - 5000115542×1
645000112768
$4.82
BOLT - 5000112768×4
655000112828
$2.83
Washer - 5000112828×8
665000112805
$2.13
NUT-LOCK - 5000112805×4
675000112763
$9.15
BOLT - 5000112763×4
685000112833
$11.47
NLA WASHER - 5000112833×4
695000112804
$5.13
NUT-LOCK - 5000112804×4
705000112806
$0.27
NUT-LOCK - 5000112806×1
715000112813
$13.98
NLA NUT-LOCK - 5000112813×1
725000112806
$0.27
NUT-LOCK - 5000112806×1
735000112771
$2.39
BOLT - 5000112771×1
745000112790
$13.98
NLA BOLT - 5000112790×8
755000112786
$13.98
NLA BOLT - 5000112786×4
765000112888
$63.33
NLA GASKET-LGTH,1000MM - 5000112888×1
775000112890
$30.78
GASKET-LGTH,1000MM - 5000112890×1
785000112990
$334.35
NLA PANEL - 5000112990×1
795000112765
$5.30
BOLT - 5000112765×2
805000112819
$3.81
Washer - 5000112819×2
815000112828
$2.83
Washer - 5000112828×2
825000112829
$11.04
NLA WASHER - 5000112829×4
835000112806
$0.27
NUT-LOCK - 5000112806×4
845000112771
$2.39
BOLT - 5000112771×4
855000112798
$10.75
NLA BOLT - 5000112798×10
865000112792
$4.25
BOLT - 5000112792×16
875000112820
$3.89
Washer - 5000112820×16
885000115555
$60.35
NLA SHOCKMOUNT - 5000115555×2
895000115556
$4.15
KEY - 5000115556×1
