RD25 ROLLER,DOUBLE DRUM

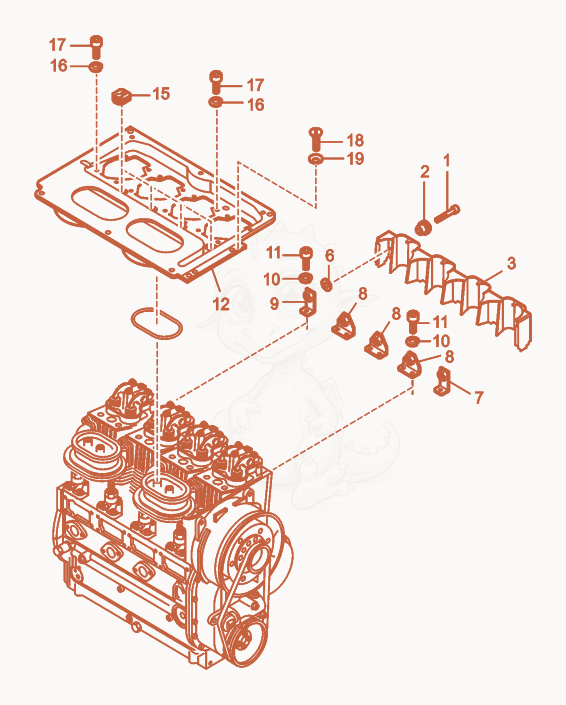

RD25 Air Ducting Diagram
- SCREW M6 X 30 SOC.HD. - 5000011549×3
- SPACER-BUSHING - 5000107798×3
- DUCT-AIR - 5000107799×1
- RING-SEALING - 5000107800×3
- BRACKET-SUPPORT - 5000107801×1
- BRACKET-SUPPORT - 5000107802×1
- BRACKET-SUPPORT - 5000107803×1
- WASHER-LOCK B8 - 5000012397×4
- SCREW M8 X 16 SOC.HD. - 5000011544×4
- PLATE-DAMPING - 5000107804×1
- SLEEVE-RUBBER - 5000107805×2
- WASHER-SPRING, A6 - 5000151290×4
- SCREW M6 X 16 SOC.HD. - 5000011553×4
- SCREW M8X16,FLAT HEAD - 5000107806×4
- LOCKWASHER-SERRATED V.8.4 - 5000201376×4
