RD25 ROLLER,DOUBLE DRUM

RD25 ROPS Protection/Seat Unit Diagram

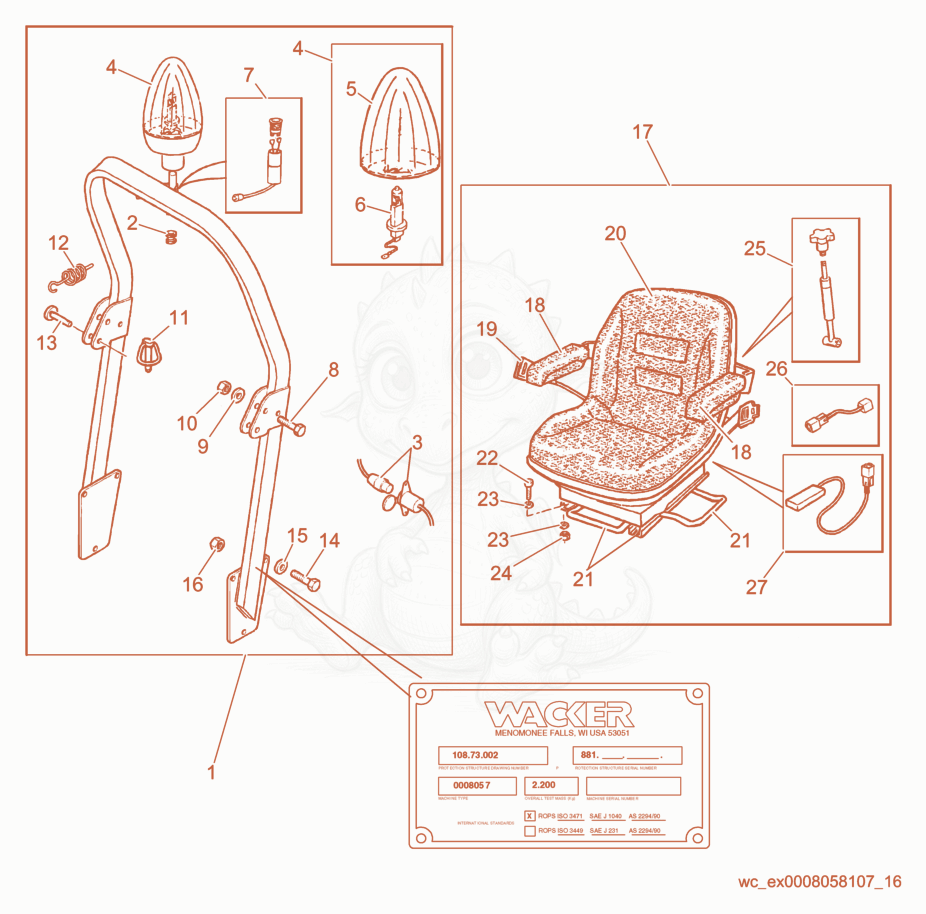

Exploded parts diagram of the ROPS Protection/Seat Unit of a Wacker Neuson RD25, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000114468Not stocked
Safety Frame Kit×1
25000155920
$7.98
NLA GROMMET - 5000155920×1
35000157342
$72.17
wiring harness - 5000157342×1
45000115546
$254.35
LIGHT-INDICATOR - 5000115546×1
55000115547
$162.20
NLA CAP-INDICATOR - 5000115547×1
65000112539
$4.77
LIGHT - 5000112539×1
75000116287
$46.57
MOUNT-CONNECTOR,LIGHT - 5000116287×1
85000114467
$9.77
BOLT - 5000114467×2
95000114465
$4.55
Washer - 5000114465×2
105000113471
$4.07
NUT-LOCK - 5000113471×2
115000114449
$14.72
PIN-RETAINING - 5000114449×2
125000155921Not stocked
Cable×1
135000114450
$259.03
PIN - 5000114450×2
145000112758
$40.68
NLA BOLT - 5000112758×6
155000112832
$15.27
NLA WASHER - 5000112832×6
165000112809
$20.94
NLA NUT-LOCK - 5000112809×4
175000155922
$3,002.51
SEAT ASSEMBLY,RD25 - 5000155922×1
185000119163
$407.35
KIT-ARMREST,FOLDING - 5000119163×1
195000112995
$153.04
BELT-SAFETY - 5000112995×1
205000115544
$1,075.94
SEAT CUSHION - 5000115544×1
215000112993
$316.89
NLA KIT-GUIDES - 5000112993×1
225000113242
$8.32
BOLT - 5000113242×4
235000155923
$0.36
washer - 5000155923×1
245000112805
$2.13
NUT-LOCK - 5000112805×4
255000155924
$434.16
shock absorber - 5000155924×1
265000155925
$40.51
Wiring harness - 5000155925×1
275000155926
$612.10
Switch - 5000155926×1
