RD25 ROLLER,DOUBLE DRUM

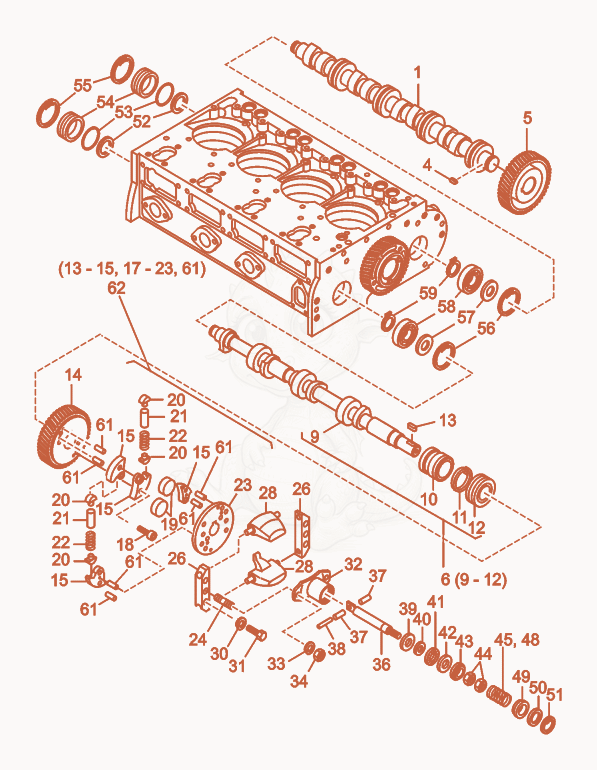

RD25 Camshaft/Governor/Timer Diagram
- CAMSHAFT-VALVES L - 5000107588×1
- KEY(SQUARE) A8X7X22 - 5000201357×1
- GEAR-CAMSHAFT - 5000107589×1
- CAMSHAFT-COMPLETE - 5000107590×1
- Spring - 5000107591×1
- KEY A6X6X20 - 5002001530×1
- GEAR-DRIVEN,GOVERNOR - 5000107592×1
- CAM PLATE - 5000107593×4
- SCREW M6X20-10.9 - 5000107594×8
- 195000107595Not stockedDisc×2
- CAP-END - 5000107596×4
- Pin - 5000107597×2
- SPRING-PRESSURE - 5000107598×2
- Flange - 5000107599×1
- STUD M8X30 - 5000107600×2
- Guide - 5000107601×2
- WEIGHT-FLY - 5000107602×2
- WASHER-SPRING - 5000107603×4
- SCREW M8X25,HEX - 5000107604×4
- HOUSING-SPRING - 5000107605×1
- WASHER-LOCK,SERRATED - 5000201401×2
- NUT M8,HEX - 5000201362×2
- Rod - 5000107607×1
- SPACER-BUSHING - 5000107608×2
- PIN-CYLINDER - 5000107609×1
- Washer - 5000107610×1
- SHIM 6X12X0.5 - 5000107611×1
- BEARING-AXIAL - 5000107612×1
- Washer - 5000107613×1
- CUP - 5000107614×1
- NUT-HEX M6 8 A3C - 5000151323×2
- GASKET-SIDE COVER - 5000107717×1
- SPRING-GOVERNOR - 5000107615×1
- CUP - 5000107616×1
- RING-SPACER - 5000107617×1
- RET.RING-INT 32MMX1.2MM, - 5002001939×1
- SHIM 37X47X0.1 - 5000107618×1
- SHIM 37X47X0.5 - 5000107619×1
- O-ring - 5000107620×2
- COVER-CAM REAR BEARING - 5000107621×2
- RETAINING RING 47X1.75 - 5000201361×2
- RETAINING RING 47X1.75 - 5000201361×2
- SHIM 20X28X0.1 - 5000107622×1
- BEARING-BALL,GROOVED - 5000107566×2
- RETAINING RING 20X1.75 - 5000201368×2
- PIN-ROLL,8X8 - 5000107540×8
- GOVERNOR ARM-COMPLETE - 5000107623×1
