RD25 ROLLER,DOUBLE DRUM

RD25 Piston/Connecting Rod Diagram

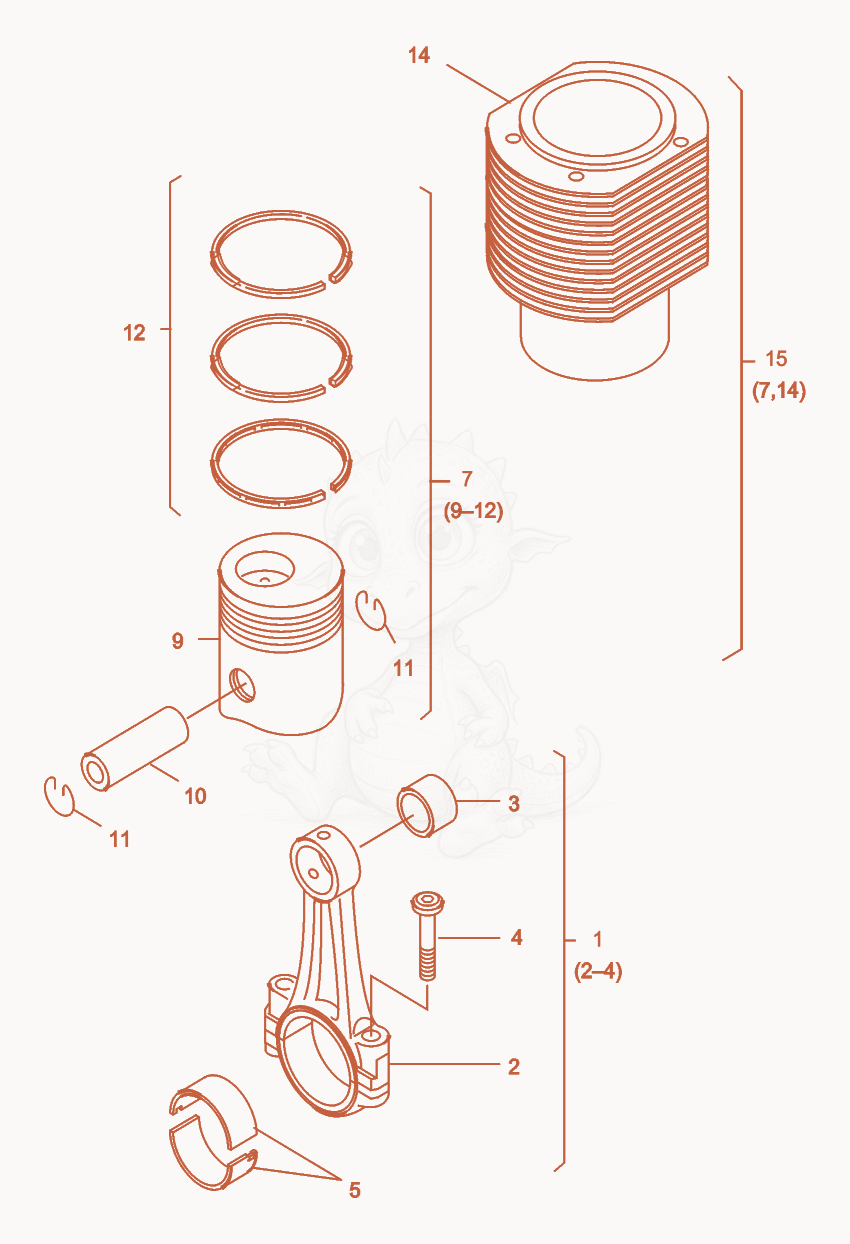

Exploded parts diagram of the Piston/Connecting Rod of a Wacker Neuson RD25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000107646
    $704.61
    ROD-CONNECTING - 5000107646×2
  • 35000107647
    $122.38
    BUSHING-PIN,WRIST - 5000107647×2
  • 45000201396
    $41.72
    BOLT-CONNECTING ROD - 5000201396×4
  • 55000107649
    $47.34
    BEARING-ROD - 5000107649×5
  • 75000113988
    $980.46
    Piston - 5000113988×2
  • 105000107650
    $138.99
    PIN-WRIST - 5000107650×2
  • 115000107651
    $8.06
    Retaining ring - 5000107651×4
  • 125000107652Not stocked
    Piston Ring Set×2
  • 155000107653
    $2,099.54
    CYLINDER W/PISTON - 5000107653×2
