RD25 ROLLER,DOUBLE DRUM

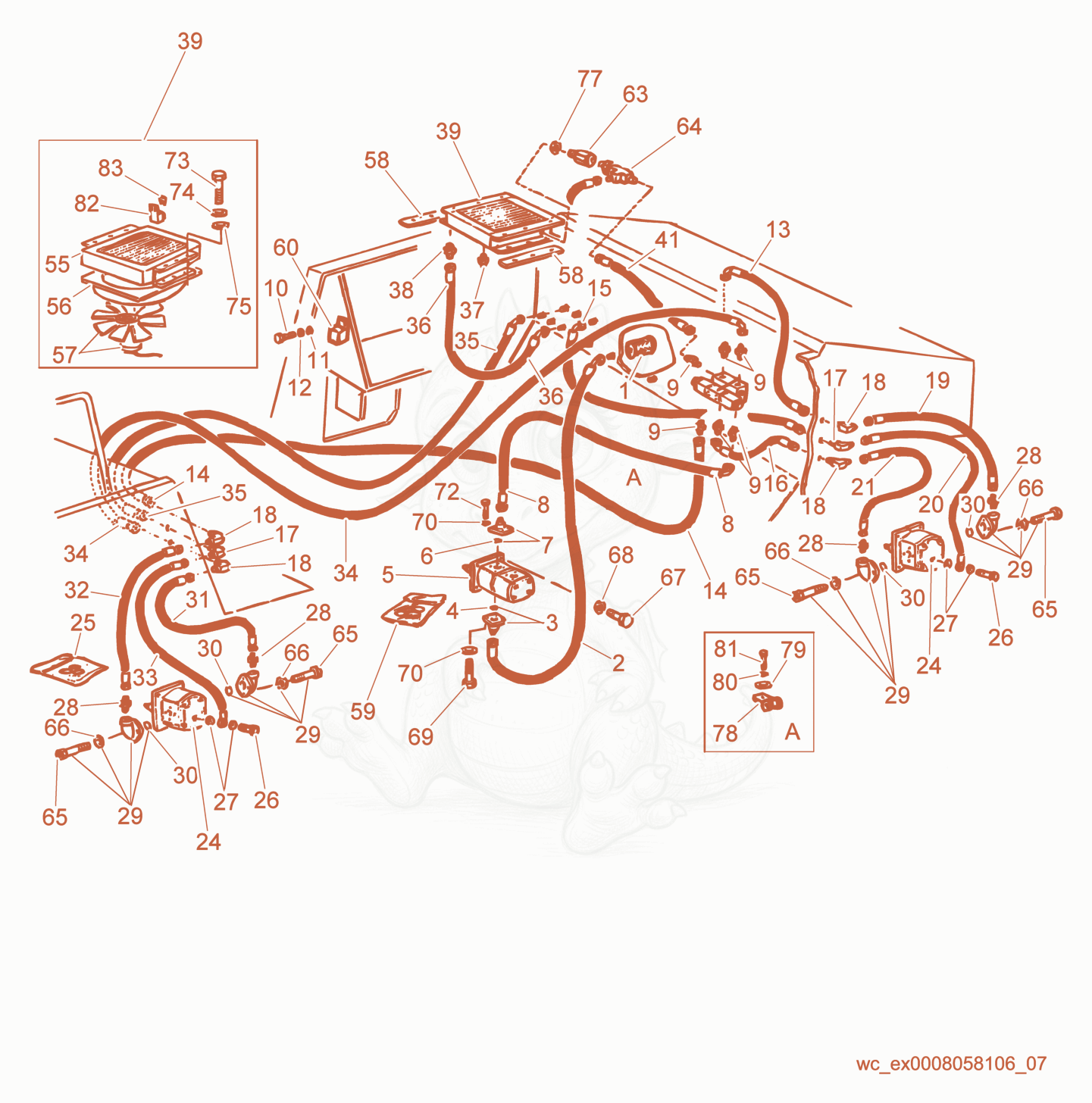

RD25 Vibrating Hydraulic System Diagram
- FILTER-OIL - 5000110144×1
- HOSE-HYDRAULIC - 5000112952×1
- Flange - 5000112921×1
- NLA O-RING - 5000112741×1
- PUMP-HYDRAULIC - 5000112605×1
- O-ring - 5000112485×1
- NLA FLANGE - 5000112920×1
- NLA HOSE-HYDRAULIC - 5000112973×1
- NLA FITTING - 5000112918×4
- NLA BOLT - 5000112761×1
- Washer - 5000112825×1
- NLA WASHER - 5000112817×1
- NLA HOSE-HYDRAULIC - 5000112949×1
- HOSE-HYDRAULIC - 5000112955×1
- NLA HOSE-HYDRAULIC - 5000112950×1
- NLA HOSE-HYDRAULIC - 5000112951×1
- FITTING-CONNECTOR - 5000112925×2
- NLA CONNECTOR - 5000112926×4
- NLA HOSE-HYDRAULIC - 5000112967×1
- HOSE-HYDRAULIC - 5000112966×1
- HOSE-HYDRAULIC - 5000112968×1
- Motor Hydraulic 5000112607×2
- KIT-GASKET,VIB.MOTOR - 5000110137×2
- BOLT-BANJO - 5000112904×2
- WASHER-COPPER - 5000112837×4
- NLA FITTING - 5000112918×4
- O-ring - 5000113740×1
- NLA FLANGE - 5000112909×4
- NLA O-RING - 5000112483×4
- HOSE-HYDRAULIC - 5000112943×1
- HOSE-HYDRAULIC - 5000112944×1
- HOSE-HYDRAULIC - 5000112965×1
- HOSE-HYDRAULIC - 5000112954×1
- HOSE-HYDRAULIC - 5000112958×1
- HOSE-HYDRAULIC - 5000112941×1
- SWITCH-THERMOSTAT - 5000112648×1
- FITTING - 5000112912×1
- RADIATOR - 5000112649×1
- NLA HOSE-HYDRAULIC - 5000112947×1
- NLA RADIATOR - 5000113037×1
- HOUSING-FAN - 5000113038×1
- FAN ASSEMBLY - 5000156821×1
- NLA PLATE - 5000113009×2
- KIT-GASKET,VIB.PUMP - 5000110143×1
- RELAY-MICRO - 5000113503×1
- NLA ADAPTER - 5000112893×1
- FITTING-CONNECTOR - 5000112922×1
- BOLT - 5000112781×12
- Washer - 5000112818×12
- NLA BOLT - 5000112789×4
- WASHER-COPPER - 5000112836×4
- BOLT - 5000112782×4
- Washer - 5000112818×8
- bolt - 5000151620×4
- BOLT - 5000112763×12
- Washer - 5000112826×12
- Washer - 5000112818×12
- WASHER-COPPER - 5000112841×1
- NLA CLAMP - 5000112859×1
- Washer - 5000112828×1
- Washer - 5000112819×1
- NLA BOLT - 5000112786×1
- Relay - 5000112866×1
- FUSE 25A - 5000155413×1
