ST27

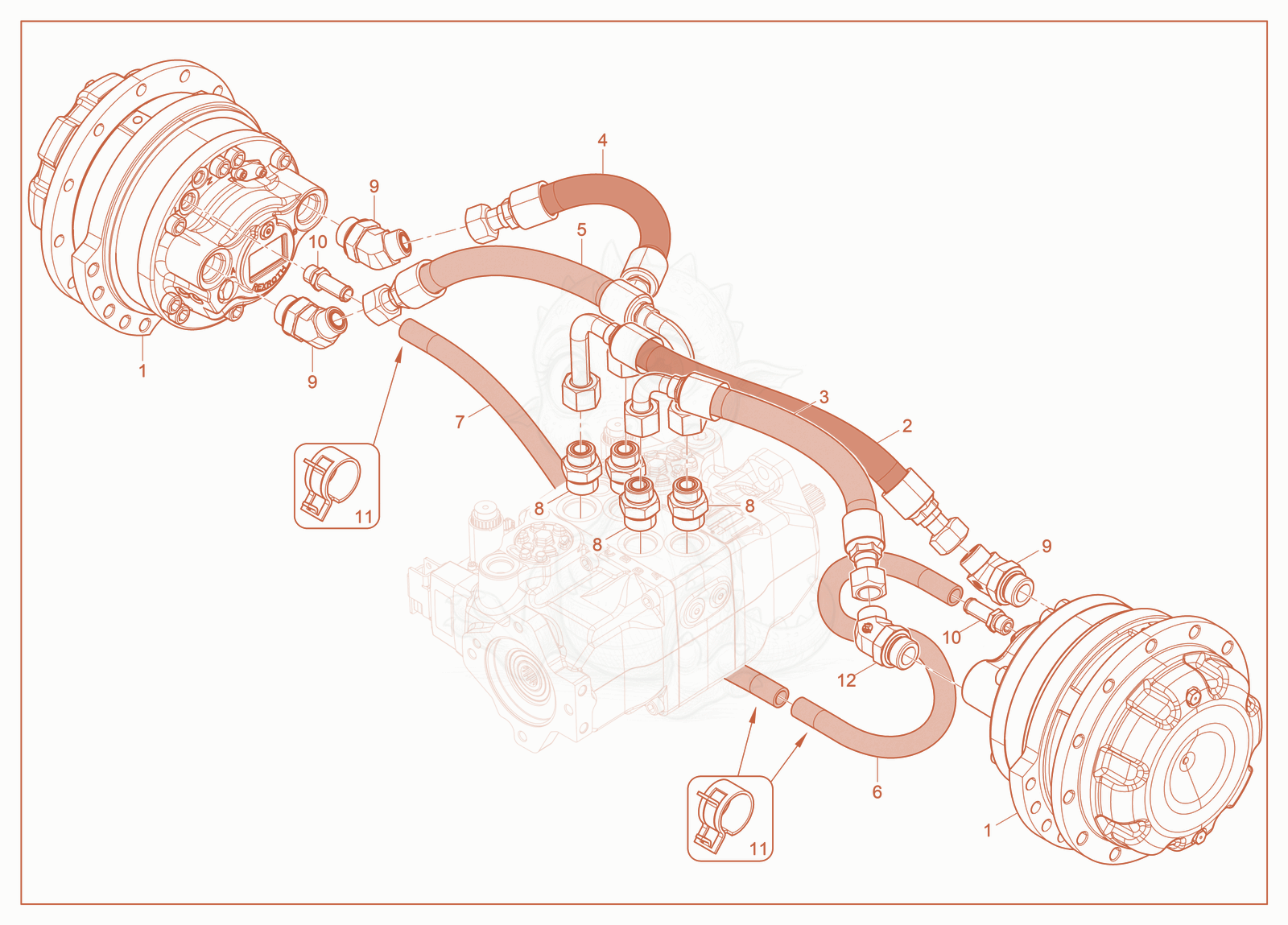

ST27 Drive Motors Diagram

Exploded parts diagram of the Drive Motors of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000339858Not stocked
    Drive unit×2
  • 11000455804Not stocked
    Seal kit×2
  • 21000446414Not stocked
    HOSE ASSEMBLY×1
  • 31000446412Not stocked
    HOSE ASSEMBLY×1
  • 41000446411Not stocked
    HOSE ASSEMBLY×1
  • 51000446420Not stocked
    HOSE ASSEMBLY×1
  • 61000489619
    $6.95
    HOSE - 1000489619×1
  • 71000446365
    $7.46
    HOSE - 1000446365×1
  • 81000343076Not stocked
    Fitting×4
  • 91000460974Not stocked
    FITTING HYD 12MFFOR-16MB45×3
  • 101000343361
    $11.30
    FITTING HYD 4604-10-08-O - 1000343361×2
  • 111000357141
    $0.96
    HOSE CLAMP CTB 23 - 1000357141×4
  • 121000486584Not stocked
    FITTING HYD 12MFFOR-16MB90×1
