ST27 Air-Conditioning Install Diagram

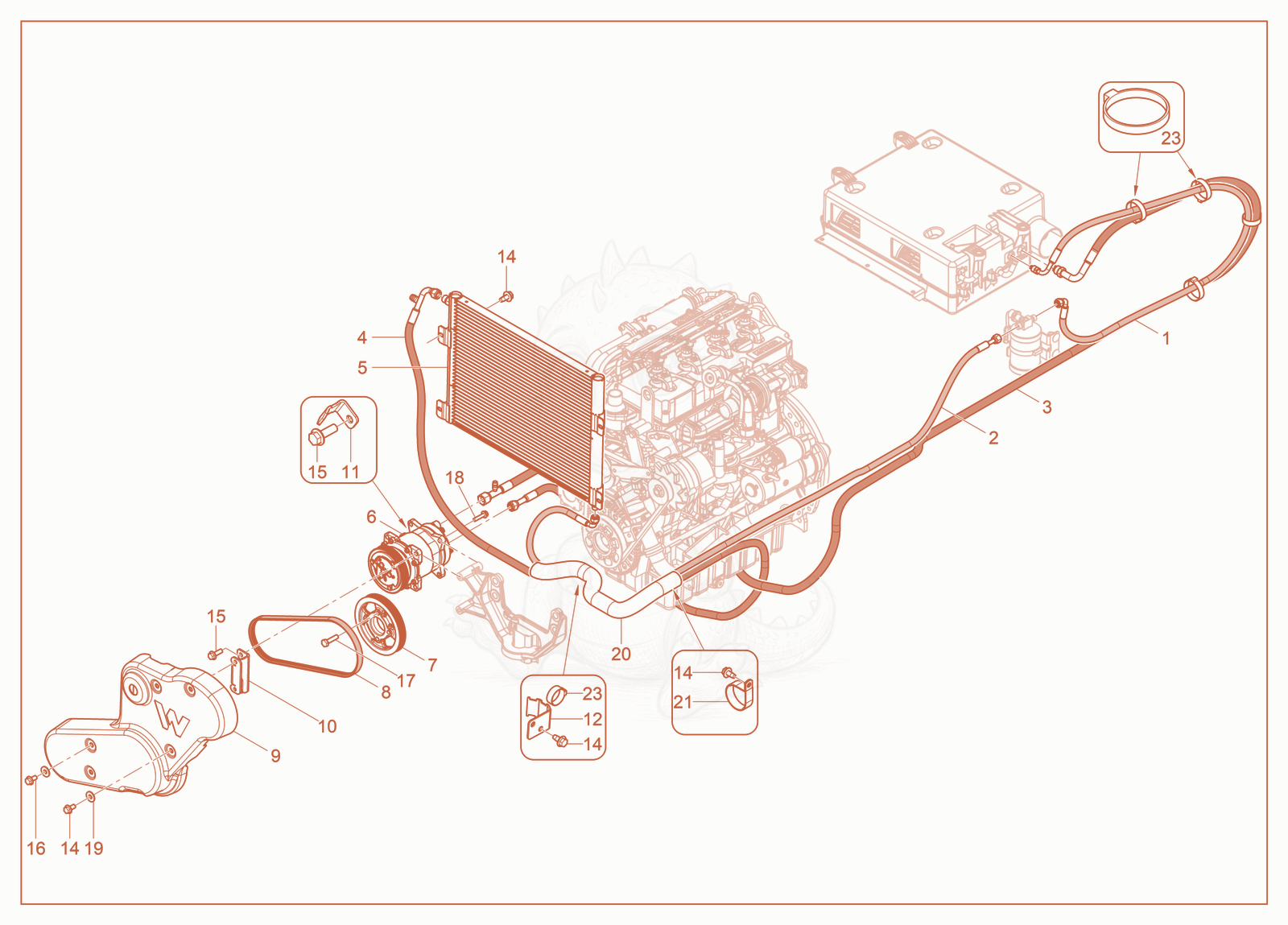

Exploded parts diagram of the Air-Conditioning Install of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000340539Not stocked
    Hose assembly×1
  • 21000340540Not stocked
    Hose×1
  • 31000340541Not stocked
    Hose×1
  • 41000340542Not stocked
    Hose×1
  • 51000340505Not stocked
    Condenser×1
  • 61000340660Not stocked
    Compressor, air conditioning×1
  • 71000438989Not stocked
    belt pulley×1
  • 81000340480Not stocked
    Belt×1
  • 91000480124Not stocked
    GUARD BELT HVAC×1
  • 101000439041Not stocked
    Belt guard bracket×1
  • 111000363466Not stocked
    Mount×1
  • 121000363469Not stocked
    Mount×1
  • 141000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×11
  • 151000343380
    $0.52
    BOLT M10 X 30 FLANGED 10.9 ZINC - 1000343380×3
  • 161000343289Not stocked
    Flanged bolt×2
  • 171000343415Not stocked
    Bolt×4
  • 181000357131
    $2.84
    BOLT M8 X 35 FLANGED 8.8 ZINC - 1000357131×2
  • 191000343286Not stocked
    Washer×5
  • 201000357185Not stocked
    Protector×1
  • 211000340301
    $3.01
    CLAMP INSULATED - 1000340301×1
  • 225000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×3
  • 231000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×14
