ST27

ST27 Hydraulic Coupler Operation Diagram

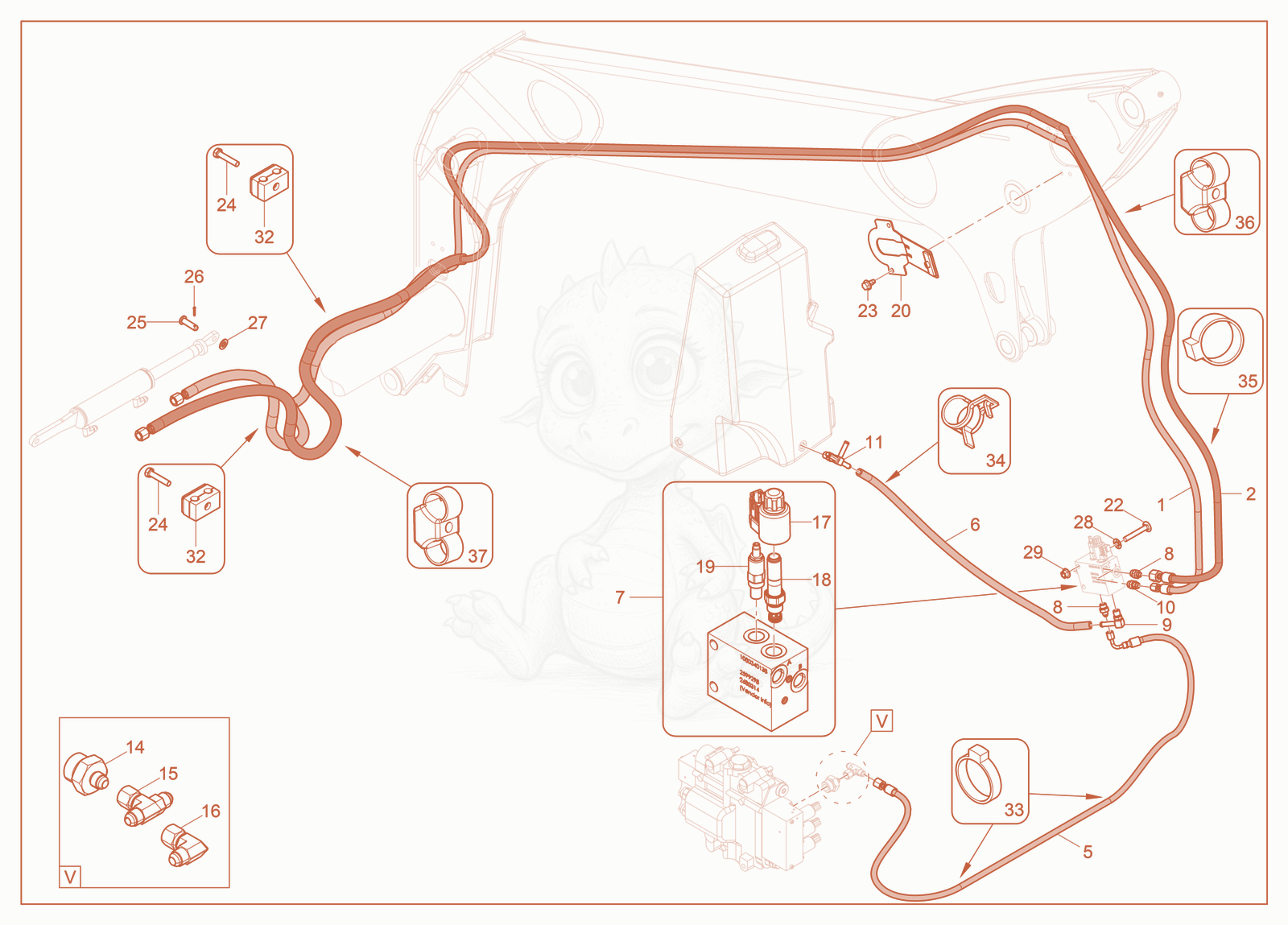

Exploded parts diagram of the Hydraulic Coupler Operation of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000478822Not stocked
    HOSE ASSEMBLY×1
  • 21000478821Not stocked
    HOSE ASSEMBLY×1
  • 51000340646Not stocked
    Hydraulic hose×1
  • 61000340645
    $11.32
    HOSE - 1000340645×1
  • 71000340138Not stocked
    Valve×1
  • 81000343339
    $2.74
    FITTING HYD 06MB-04MJ - 1000343339×2
  • 91000343341Not stocked
    Fitting×1
  • 101000343338
    $2.95
    FITTING HYD 06MB-06MJ - 1000343338×1
  • 111000343323
    $14.37
    FITTING HYD 820-06-06-06-06 - 1000343323×1
  • 141000343322Not stocked
    Fitting×1
  • 151000343135Not stocked
    Fitting×1
  • 161000343136Not stocked
    Fitting×1
  • 171000365404
    $86.80
    valve - 1000365404×1
  • 181000365402
    $29.43
    MAGNET SPOOL - 1000365402×1
  • 191000365405Not stocked
    Valve cartridge×1
  • 201000438114Not stocked
    Hose guide bracket×1
  • 221000343321Not stocked
    Bolt×2
  • 231000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×2
  • 241000085392
    $0.83
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×2
  • 251000343320
    $4.25
    PIN-CLEVIS - 1000343320×2
  • 261000095365
    $0.10
    cotter pin 3,2x20 - 1000095365×2
  • 271000343402Not stocked
    Flat washer×2
  • 281000343294
    $0.06
    RETAINER BOLT M10 - 1000343294×2
  • 291000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×2
  • 321000342638
    $5.65
    CLAMP HOSE DIN 2 - 1000342638×2
  • 331000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×1
  • 341000357140
    $1.19
    HOSE CLAMP CTB 16 - 1000357140×2
  • 351000342832
    $2.64
    TIE DOUBLE - 1000342832×3
