ST27

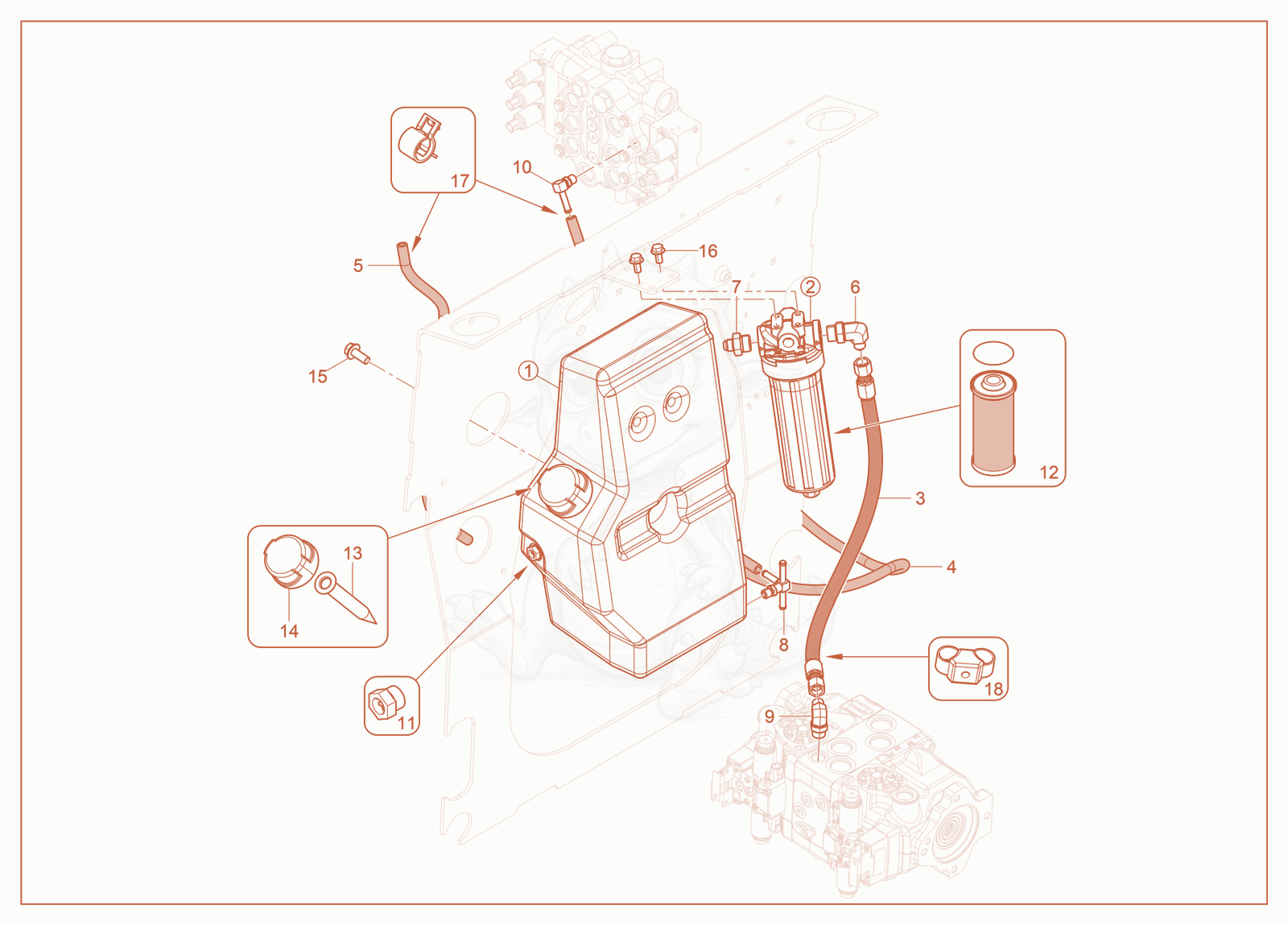

ST27 Hydraulic Tank Diagram

Exploded parts diagram of the Hydraulic Tank of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000441417Not stocked
    Hydraulic tank complete×1
  • 21000380927Not stocked
    Hydraulic oil filter×1
  • 31000446951Not stocked
    HOSE ASSEMBLY×1
  • 41000451462
    $11.45
    HOSE - 1000451462×1
  • 51000343145Not stocked
    Hose×1
  • 61000343376
    $21.37
    FITTING HYD 12MB-08MJ90 - 1000343376×1
  • 71000343330Not stocked
    Fitting×1
  • 81000343323
    $14.37
    FITTING HYD 820-06-06-06-06 - 1000343323×1
  • 91000343326Not stocked
    Elbow fitting×1
  • 101000343341Not stocked
    Fitting×1
  • 111000431943
    $39.47
    SIGHT WINDOW HYD - 1000431943×1
  • 121000382918Not stocked
    Filter element×1
  • 131000340159
    $11.54
    SCREEN HYD FILL - 1000340159×1
  • 141000340157
    $32.85
    CAP HYDRAULIC - 1000340157×1
  • 151000402117
    $0.51
    DIN6921-M10x25-8.8-ZNC - 1000402117×4
  • 161000343289Not stocked
    Flanged bolt×2
  • 171000357140
    $1.19
    HOSE CLAMP CTB 16 - 1000357140×4
  • 181000342832
    $2.64
    TIE DOUBLE - 1000342832×1
