ST27

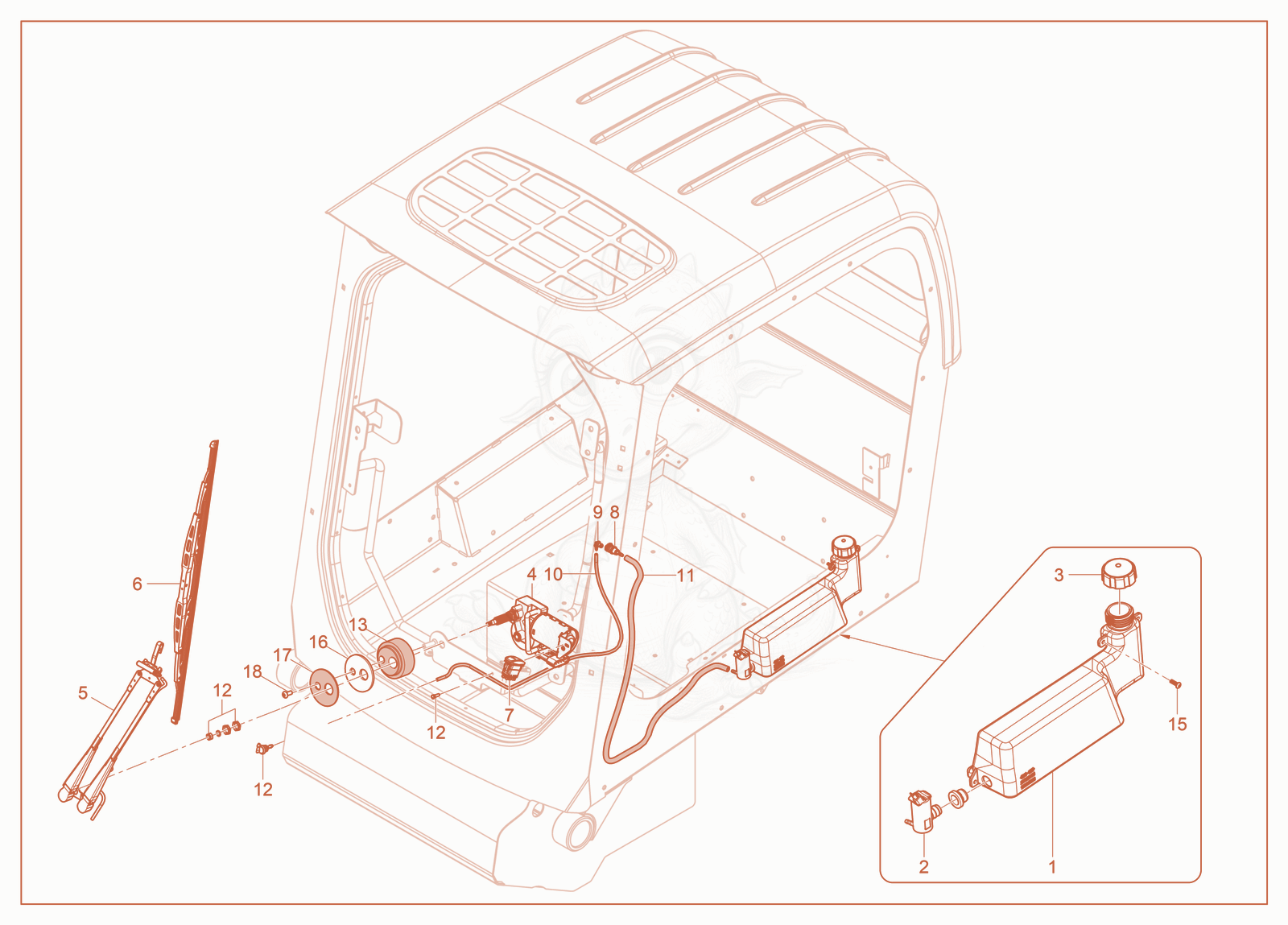

ST27 Wiper System Diagram

Exploded parts diagram of the Wiper System of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000340296Not stocked
    Tank×1
  • 21000364919
    $19.01
    KIT PUMP FLUID WASHER - 1000364919×1
  • 31000343112Not stocked
    Cap×1
  • 41000474036Not stocked
    Wiper motor×1
  • 51000340293Not stocked
    Wiper arm×1
  • 61000340294Not stocked
    Wiper blade×1
  • 71000343550Not stocked
    Wiper rocker switch×1
  • 71000342299Not stocked
    Wiring harness door×1
  • 81000374944Not stocked
    Barbed fitting×1
  • 91000364682Not stocked
    Barbed fitting×1
  • 101000357152Not stocked
    Hose×1
  • 111000357148Not stocked
    Hose×1
  • 121000363073
    $17.59
    HARDWARE WIPER MOTOR - 1000363073×1
  • 131000440923Not stocked
    Door gasket, wiper×1
  • 151000343391Not stocked
    Screw×4
  • 161000440920Not stocked
    Door gasket, outer×1
  • 171000440917Not stocked
    Plate, door wiper×1
  • 181000343476
    $0.33
    SCREW M5 X 12 SOC CAP 10.9 BLACK - 1000343476×1
