ST27

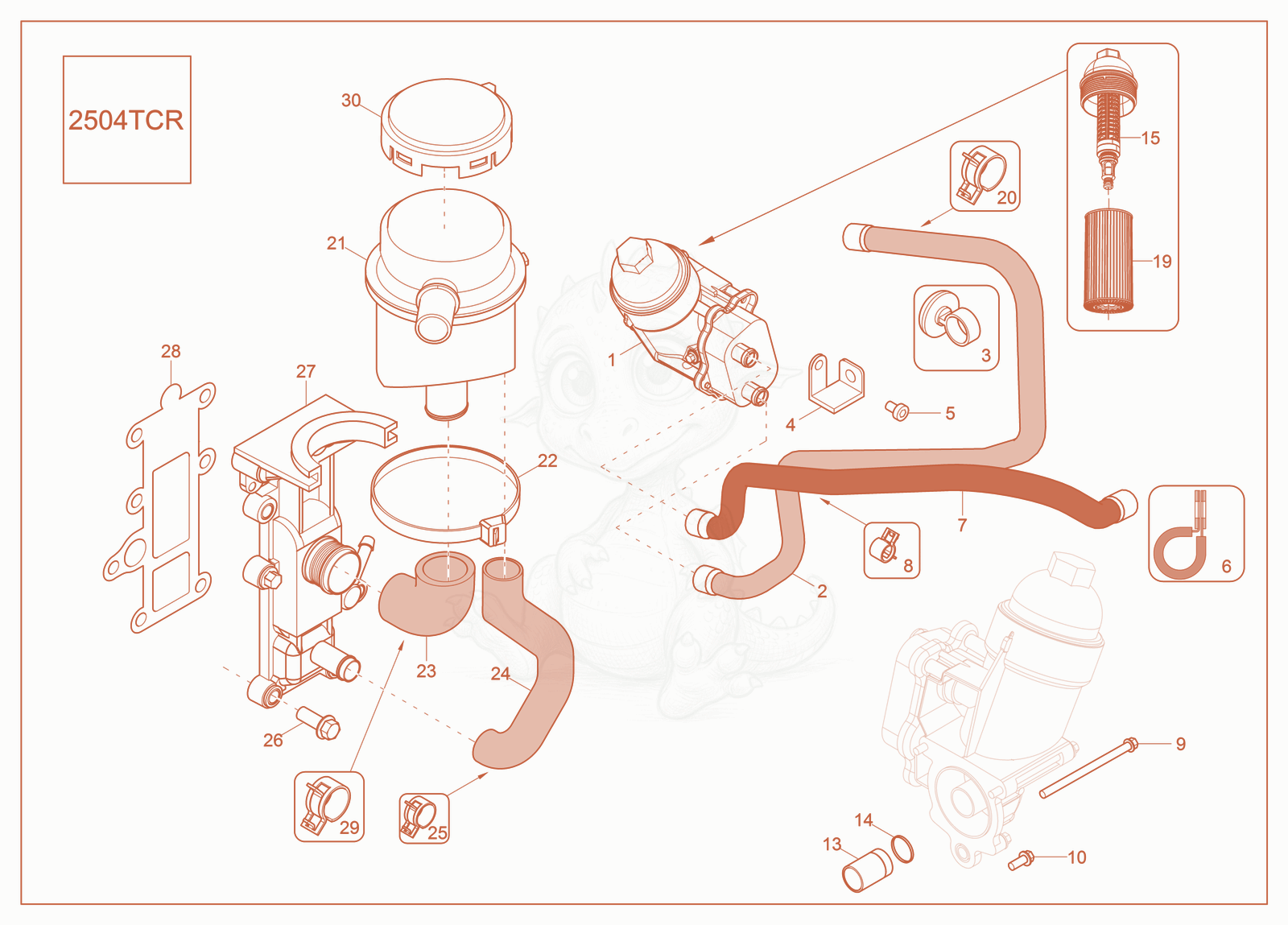

ST27 Oil Filter Diagram

Exploded parts diagram of the Oil Filter of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100029465
    $923.75
    COOLER-OIL - 5100029465×1
  • 25200016446Not stocked
    Hose×1
  • 35200016443Not stocked
    Clamp×1
  • 45200016444Not stocked
    Support plate×1
  • 55200016365Not stocked
    Screw×1
  • 65200016445Not stocked
    Clamp×1
  • 75200016442Not stocked
    Hose×1
  • 85200016447Not stocked
    Hose clamp×2
  • 95200016448Not stocked
    Screw×2
  • 105200016441Not stocked
    Bolt×2
  • 135200016449Not stocked
    Connector×1
  • 145200016450Not stocked
    O-ring×1
  • 155200016451Not stocked
    Cover×1
  • 195200016387Not stocked
    Oil filter×1
  • 205200016388Not stocked
    Clamp×2
  • 215200016422Not stocked
    Oil separator×1
  • 225200009531
    $2.32
    CABLE TIE - 5200009531×1
  • 235200016428Not stocked
    Blow-by pipe×1
  • 245200016431Not stocked
    Blow-by pipe×1
  • 255200016433Not stocked
    Clamp×2
  • 265200016441Not stocked
    Bolt×7
  • 275200016436Not stocked
    Flange×1
  • 285200016437Not stocked
    Gasket×1
  • 295200016438Not stocked
    Clamp×2
  • 305200016439Not stocked
    Guard×1
