ST27

ST27 Gear pump (High Flow) Diagram

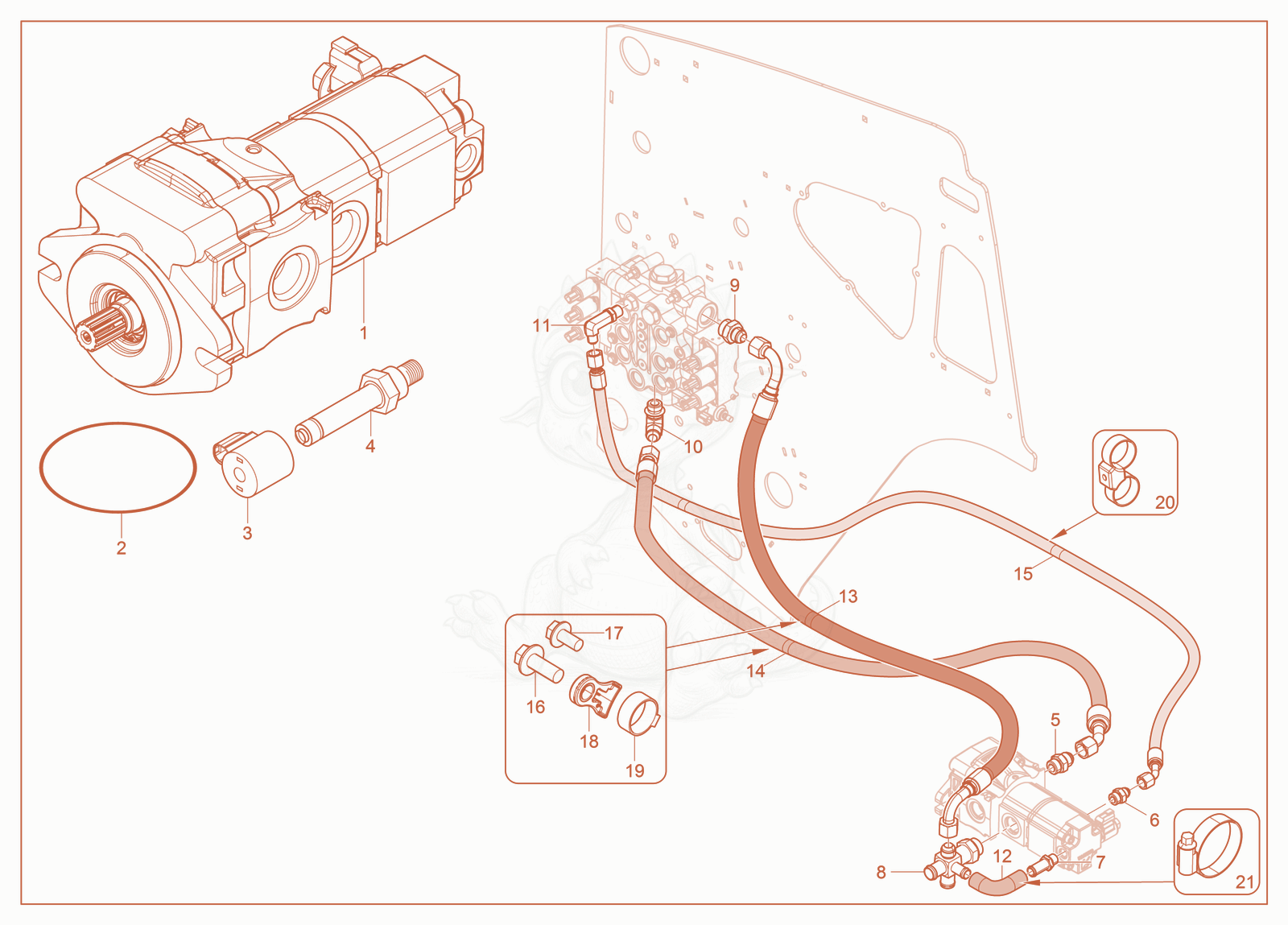

Exploded parts diagram of the Gear pump (High Flow) of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000441483Not stocked
    Pump×1
  • 21000376119
    $1.54
    O-RING - 1000376119×1
  • 31000376117
    $160.23
    Valve - 1000376117×1
  • 41000376118Not stocked
    Magnet spool×1
  • 51000343342Not stocked
    Fitting×1
  • 61000343325
    $7.89
    FITTING HYD 10MB-08MJ - 1000343325×1
  • 71000343329Not stocked
    Fitting×1
  • 81000340580Not stocked
    Fitting×1
  • 91000343360Not stocked
    Fitting×1
  • 101000343374Not stocked
    Fitting×1
  • 111000343332Not stocked
    Fitting×1
  • 121000340167Not stocked
    Hose×1
  • 131000381434Not stocked
    Hydraulic hose×1
  • 141000340203Not stocked
    Hydraulic hose×1
  • 151000378491Not stocked
    Hydraulic hose×1
  • 161000343289Not stocked
    Flanged bolt×1
  • 171000343289Not stocked
    Flanged bolt×1
  • 181000342647
    $5.78
    MOUNT SADDLE - 1000342647×2
  • 191000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×2
  • 201000342832
    $2.64
    TIE DOUBLE - 1000342832×2
  • 215000172012
    $1.40
    CLAMP-HOSE W/O SERATN 20-32 MM - 5000172012×2
