ST27

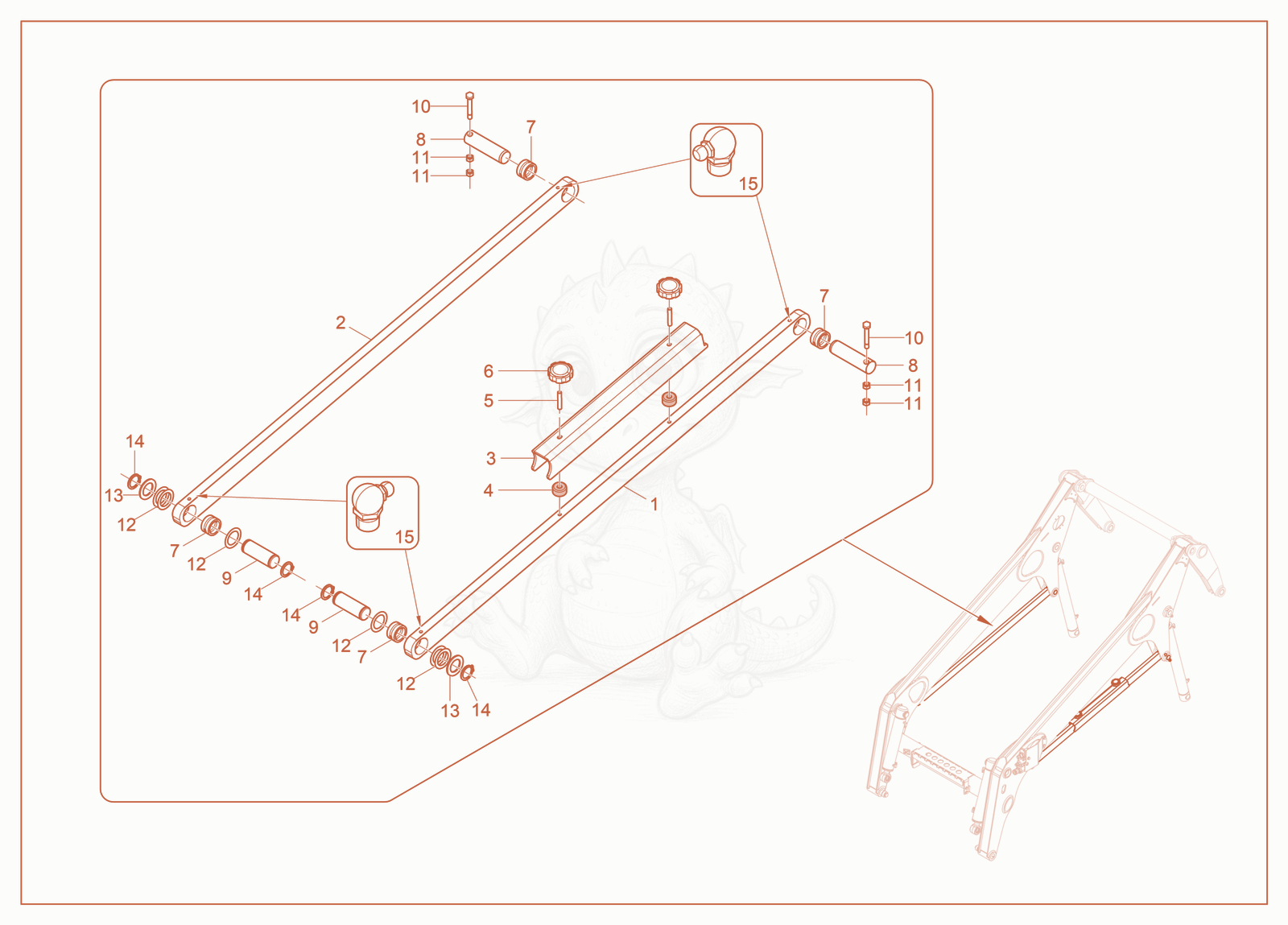

ST27 Control Links Diagram

Exploded parts diagram of the Control Links of a Wacker Neuson ST27, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000430229Not stocked
    Control link×1
  • 21000430222Not stocked
    Control link×1
  • 31000460727Not stocked
    STOP ARM VERT S07×1
  • 41000340307Not stocked
    Damper×2
  • 51000343313Not stocked
    Stud×2
  • 61000340306Not stocked
    Clamp×2
  • 71000428982Not stocked
    Wear bushing×4
  • 81000400011Not stocked
    Pivot pin×2
  • 91000482858Not stocked
    PIN PIVOT 35 X 94×2
  • 101000343312Not stocked
    Screw×2
  • 111000343310
    $0.06
    NUT M10 HEX 8 ZINC - 1000343310×4
  • 121000429012
    $3.49
    WASHER THRUST - 1000429012×6
  • 131000482772Not stocked
    WASHER FLAT 10GA X 35.6 X 55MM ZINC×2
  • 141000343316Not stocked
    Ring×4
  • 151000343315Not stocked
    Grease nipple×4
