ST45 Compact Track Loader

ST45(S04-04) One point lift kit (OPTION) Diagram

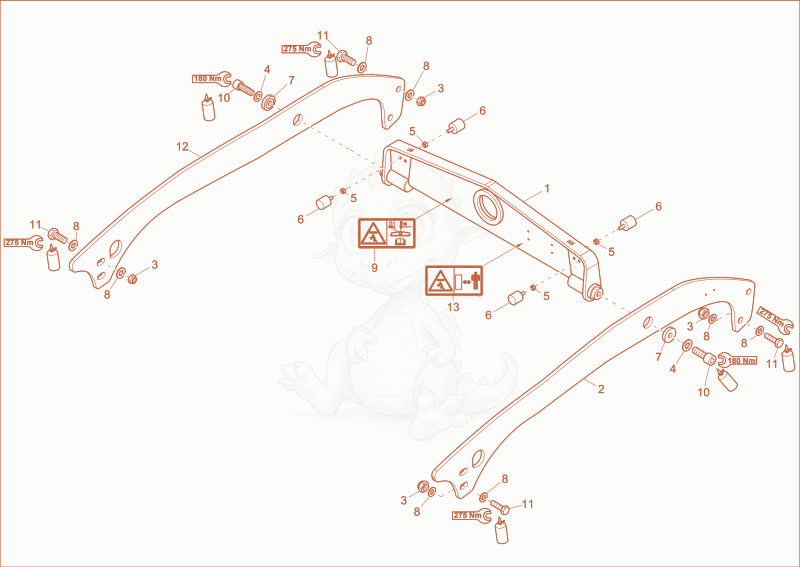

Exploded parts diagram of the One point lift kit (OPTION) of a Wacker Neuson ST45(S04-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000304766
    $444.05
    Joint 1000304766×1
  • 21000291489
    $139.58
    Fixingplate 1000291489×1
  • 31000020788Not stocked
    Hexagon nut×8
  • 41000015453Not stocked
    Northlock disc×2
  • 51000013021Not stocked
    Hexagon nut×4
  • 61000065202
    $4.83
    BUFFER - 1000065202×4
  • 71000293339
    $51.38
    lock washer - 1000293339×2
  • 81000085605
    $1.57
    washer A 17 St A2C DIN125 - 1000085605×16
  • 91000255990
    $32.37
    STICKER - 1000255990×2
  • 101000019125
    $6.49
    cheese head screw - 1000019125×2
  • 111000085430
    $1.76
    HEX SCREW M16x50-10.9 DACRO-DIN933 - 1000085430×8
  • 121000291486
    $143.36
    Fixingplate 1000291486×1
  • 131000094898
    $38.90
    STICKER LIFTING OPERATION - 1000094898×2
