ST45 Compact Track Loader

ST45(S04-04) Air cushioned seat (Option) Diagram

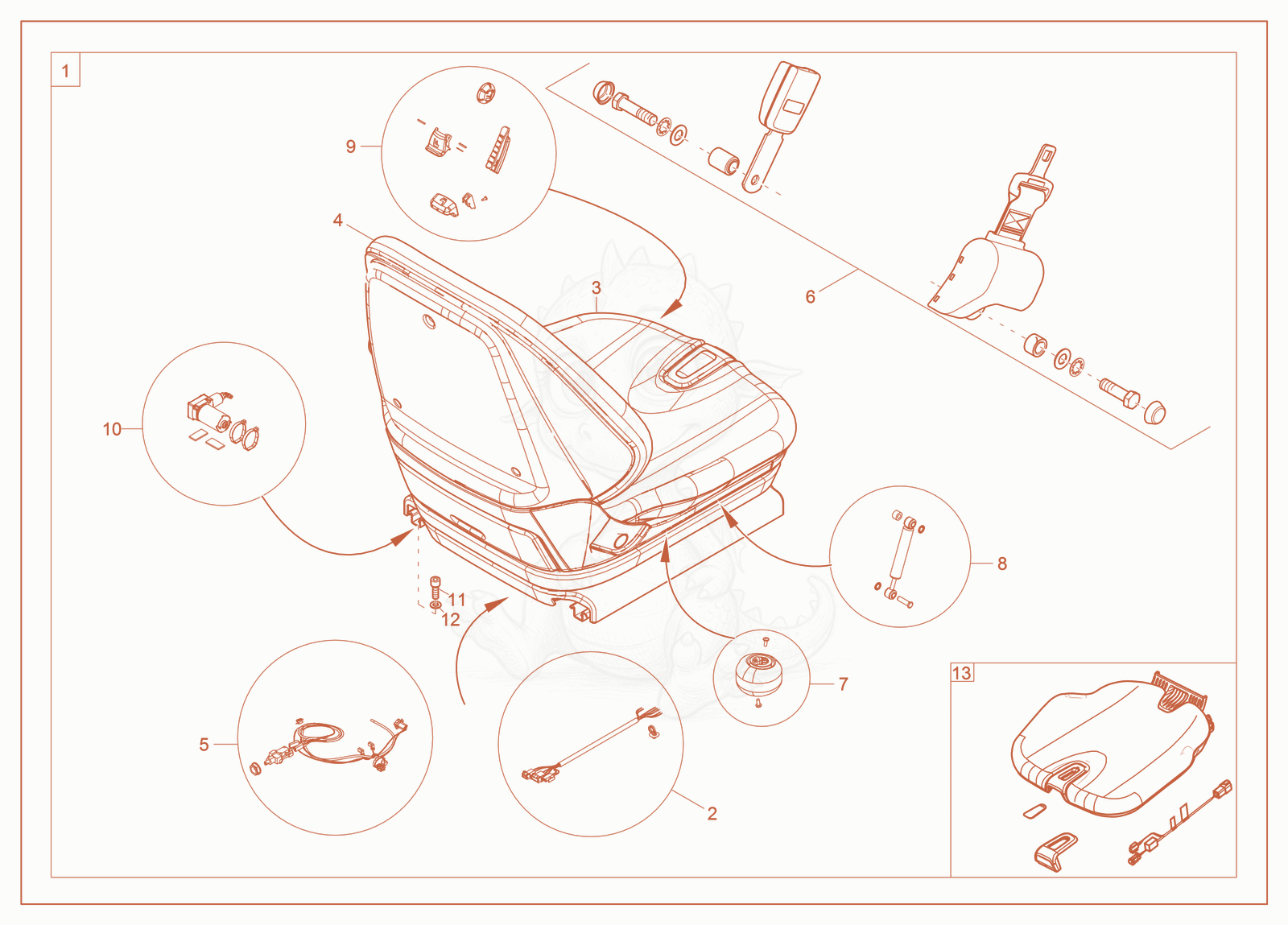

Exploded parts diagram of the Air cushioned seat (Option) of a Wacker Neuson ST45(S04-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000391950
    $1,803.52
    SEAT AIR SUSPENSION 80MM - 1000391950×1
  • 21000317518
    $162.69
    cable - 1000317518×1
  • 31000379773
    $360.49
    seat upholstery - 1000379773×1
  • 41000379774Not stocked
    Back cushion×1
  • 51000317517
    $399.83
    Wiring harness - 1000317517×1
  • 61000274170
    $186.58
    Lap belt - 1000274170×1
  • 71000317514Not stocked
    Gas strut×1
  • 81000317489Not stocked
    shock absorber×1
  • 91000317487
    $117.73
    handle - 1000317487×1
  • 101000317516
    $207.68
    compressor - 1000317516×1
  • 111000013014Not stocked
    Cheese head screw×4
  • 121000015437Not stocked
    Lock washer×4
  • 131000416792Not stocked
    Kit-SSL-Service, Seat Cushion×1
  • 141000379775Not stocked
    Wiring harness×1
