ST45 Compact Track Loader

ST45(S04-04) fuel system Diagram

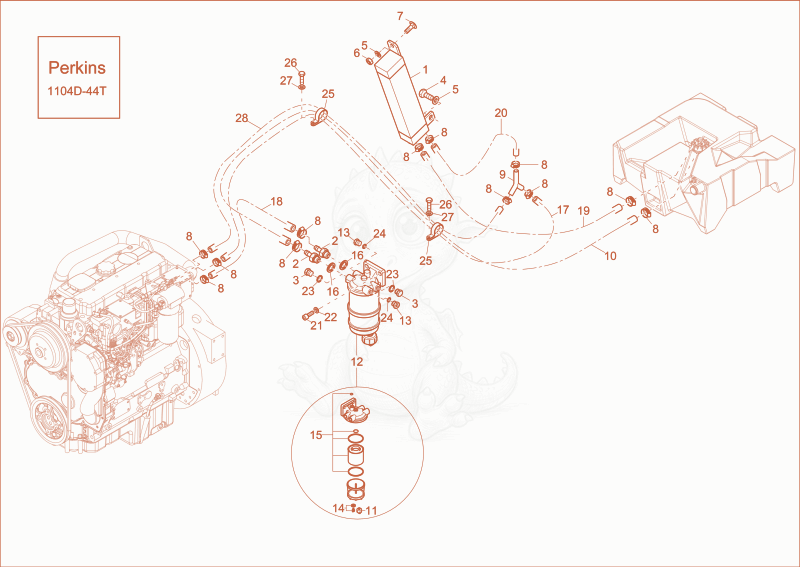

Exploded parts diagram of the fuel system of a Wacker Neuson ST45(S04-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000305556Not stocked
    Diesel cooler×1
  • 21000264009
    $12.00
    screw joint 8mm / 1/2" -20 UNF-28 - 1000264009×1
  • 31000199886
    $10.43
    LOCK SCREW - 1000199886×2
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 61000015407Not stocked
    Hex nut×1
  • 71000299982
    $0.58
    door strap screw - 1000299982×1
  • 81000222603
    $2.41
    clamp - 1000222603×12
  • 91000301390
    $6.93
    plug - 1000301390×1
  • 101000261276
    $6.18
    SCDIES 8,0 - 1000261276×2.13
  • 111000321659
    $201.32
    sensor - 1000321659×1
  • 121000313868Not stocked
    fuel filter×1
  • 131000088430
    $14.30
    Nut - 1000088430×2
  • 141000086347
    $10.41
    lock plug - 1000086347×1
  • 151000231433
    $42.46
    WATER SEPERATOR - 1000231433×1
  • 161000124948
    $12.46
    screw seal - 1000124948×2
  • 171000261276
    $6.18
    SCDIES 8,0 - 1000261276×0.82
  • 181000261276
    $6.18
    SCDIES 8,0 - 1000261276×0.29
  • 191000261276
    $6.18
    SCDIES 8,0 - 1000261276×1.56
  • 201000261276
    $6.18
    SCDIES 8,0 - 1000261276×0.13
  • 211000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
  • 221000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 231000257294
    $7.27
    U-WASHER - 1000257294×2
  • 241000088416
    $2.46
    Olive - 1000088416×2
  • 251000272660
    $5.41
    pipe clamp RSGU 1.30/20 - 1000272660×2
  • 261000019136Not stocked
    Hex screw×2
  • 271000092292
    $5.86
    washer A8,4-140HV A2C DIN125 - 1000092292×2
  • 281000261276
    $6.18
    SCDIES 8,0 - 1000261276×0.72
