ST45 Compact Track Loader

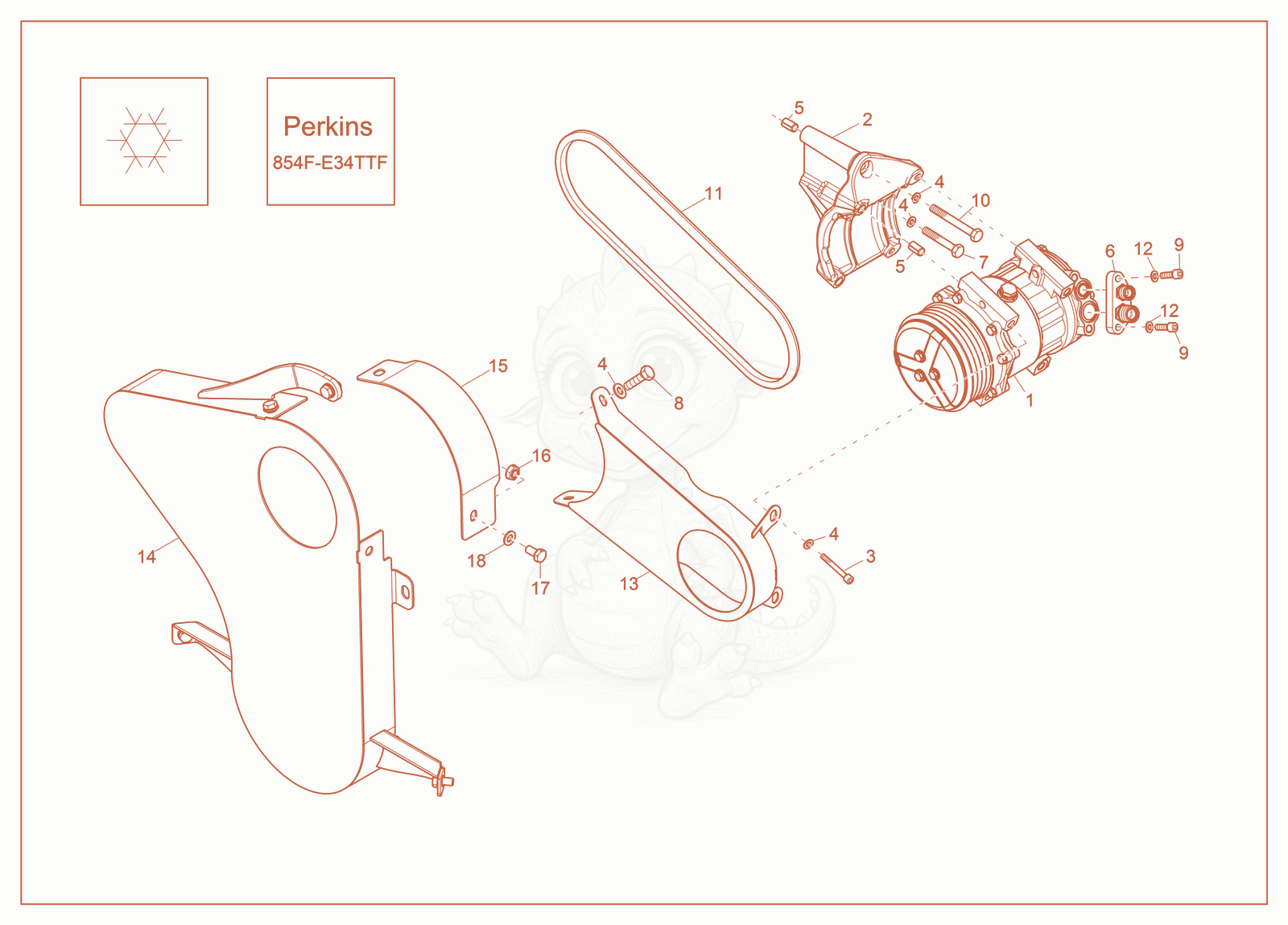

ST45(S04-04) ADDITIONAL PARTS OPTION AIR-CONDITIONING Diagram

Exploded parts diagram of the ADDITIONAL PARTS OPTION AIR-CONDITIONING of a Wacker Neuson ST45(S04-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000301421
    $749.75
    Compressoraircondition 1000301421×1
  • 21000282897
    $568.43
    Bracketcompressor 1000282897×1
  • 31000099331
    $0.42
    cheese head screw - 1000099331×4
  • 41000092292
    $5.86
    washer A8,4-140HV A2C DIN125 - 1000092292×6
  • 51000287582
    $4.06
    cotter pin - 1000287582×4
  • 61000330826
    $64.09
    Adapter - 1000330826×1
  • 71000085318
    $1.11
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
  • 81000019136Not stocked
    Hex screw×2
  • 91000013014Not stocked
    Cheese head screw×2
  • 101000085323
    $0.17
    hex screw - 1000085323×1
  • 111000287564
    $118.42
    strip - 1000287564×1
  • 121000015437Not stocked
    Lock washer×2
  • 131000363794Not stocked
    Belt cover×1
  • 141000363792Not stocked
    BELT COVER×1
  • 151000312967Not stocked
    blind cover×1
  • 161000085597
    $0.70
    Hexagon nut M8, DIN 929 - 1000085597×2
  • 171000019136Not stocked
    Hex screw×6
  • 181000092292
    $5.86
    washer A8,4-140HV A2C DIN125 - 1000092292×6
