ST45 Compact Track Loader

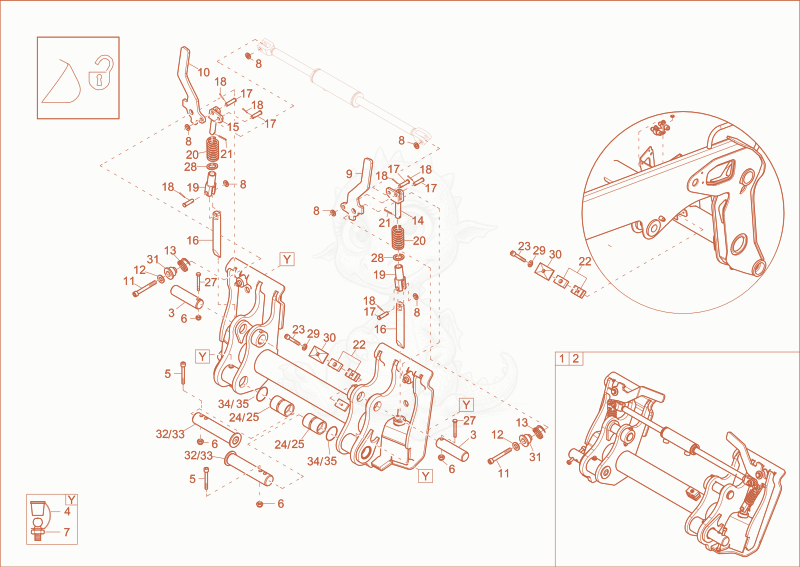

ST45(S04-04) quick hitch (Option) Diagram
- Pin 1000287429×2
- 41000015480Not stockedCap grease nipple×4
- 51000323299Not stockedscrews instrum.housing×2
- nut M10-8 A2C-DIN985 - 1000015408×4
- 71000015476Not stockedGrease nipple×4
- 81000015433Not stockedWasher×6
- LEVER - 1000332316×1
- PendX-1000332317 locking lever - 1000320742×1
- cheese head screw - 1000082242×2
- NORTHLOCK DISC - 1000082678×2
- 131000321977Not stockedPressure Spring×2
- pin - 1000312143×1
- pin - 1000312141×1
- locking pin - 1000287394×2
- pin - 1000302890×6
- cotter pin 3,2x20 - 1000095365×6
- PIN - 1000303905×2
- pressure spring - 1000141374×2
- cotter pin - 1000085646×2
- clamp Body - 1000083285×2
- hex screw M8x40-8.8 A2C DIN933 - 1000085392×2
- STEEL BUSHING - 1000083211×2
- 251000341582Not stockedsteel bushing×2
- Quick Hitch Plate, P-5000176420 - 1000314888×1
- 261000332381Not stockedquickhitch plate×1
- Quickhitchplatep 5000176420 1000339607×1
- 271000323299Not stockedscrews instrum.housing×2
- washer - 1000143467×2
- 291000015437Not stockedLock washer×1
- 301000022379Not stockedCover plate×2
- sleeve - 1000322351×2
- PIN - 1000320733×2
- 331000339723Not stockedPin×2
- PIN GASKET - 1000107367×2
- 351000015707Not stockedPin gasket×2
