WN Track dumper TD15
TD15 Parts Diagrams
56 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.
undercarriage
chain tensioner
tension roller
Run rocker
Run rocker

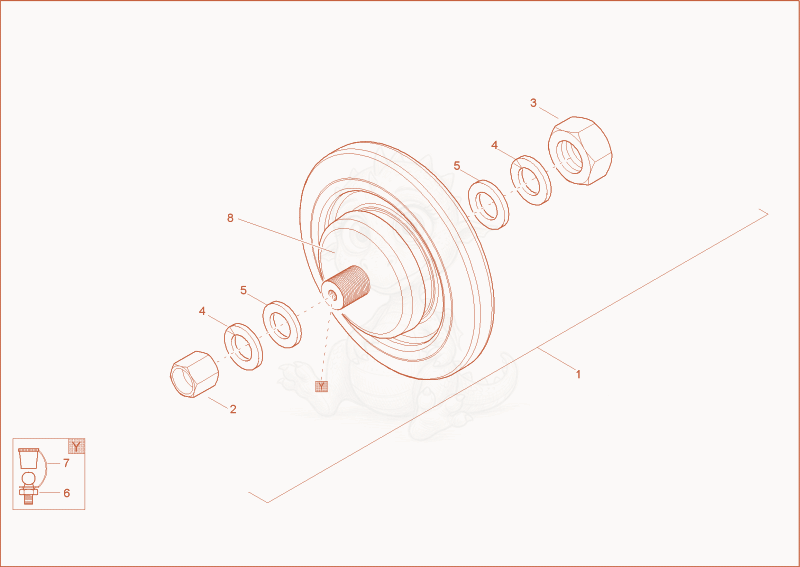

roller
roller
support roller
TILTING LOCK
TILTING LOCK

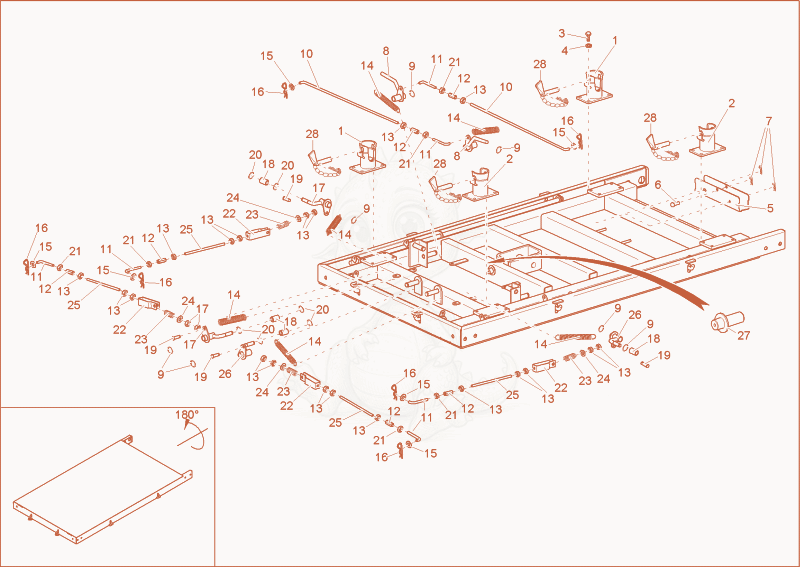

CHASSIS

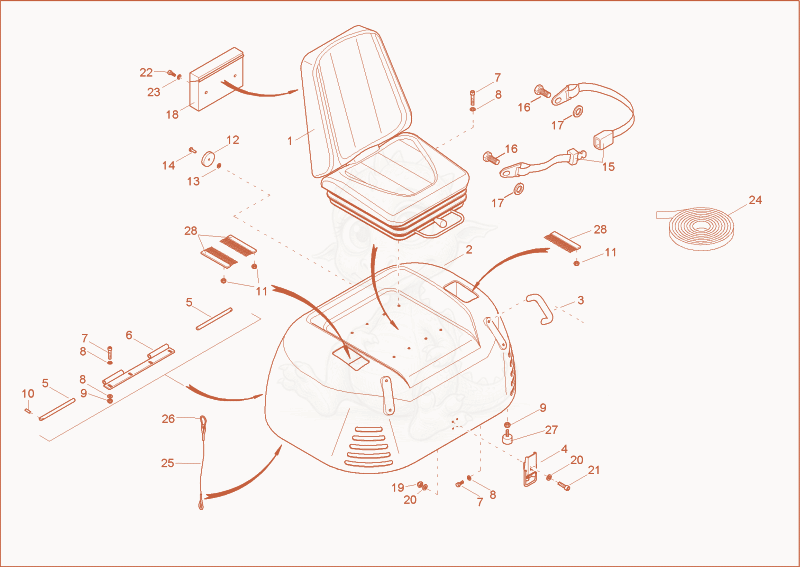

engine hood

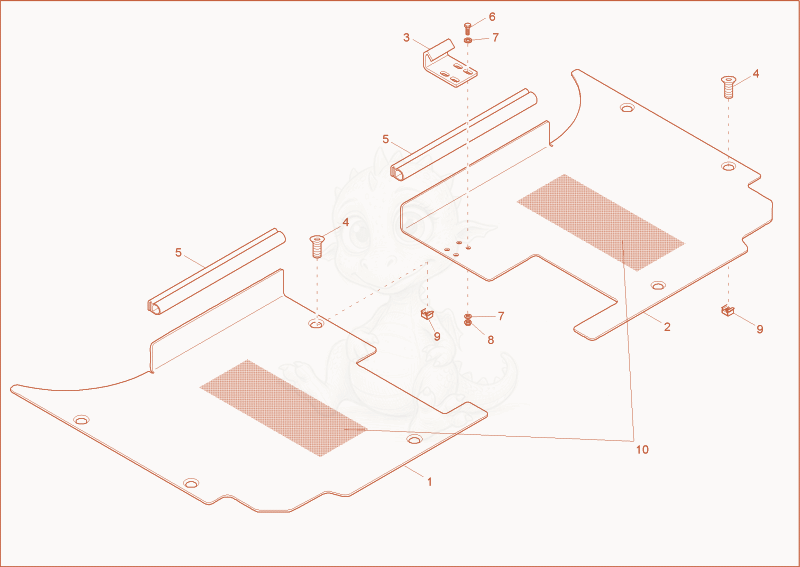

floor plate
skip
seperating plate
diesel engine
diesel engine
Engine bedding
cooler
CYLINDER HEAD, VALVE COVER
cylinder block
seal crankshaft
oil sump
CAMSHAFT
crankshaft, piston
lub oil system
cooling system
air cleaner
suction manifold
exhaust
exhaust manifold
fuel injection equipment
injection pump
SEAL KIT
fuel tank
fuel system

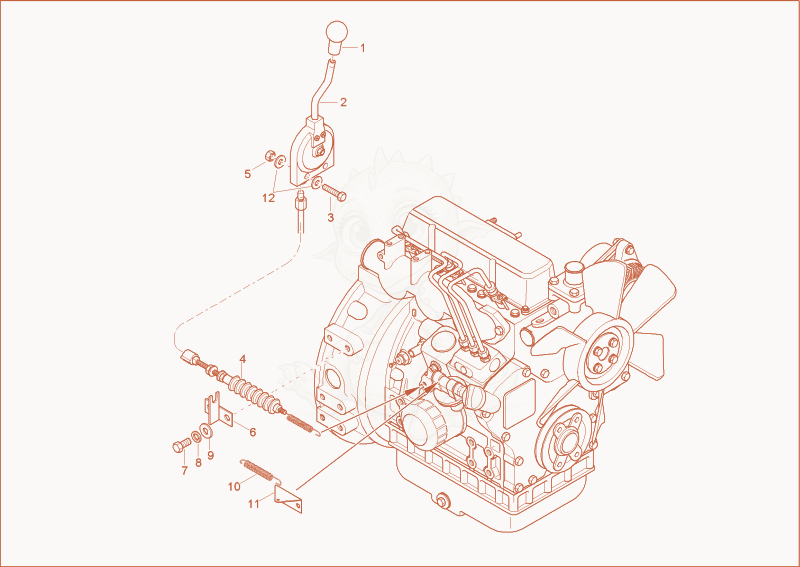

speed actuating
HYDRAULIC PUMP DRIVE
hydraulic tank

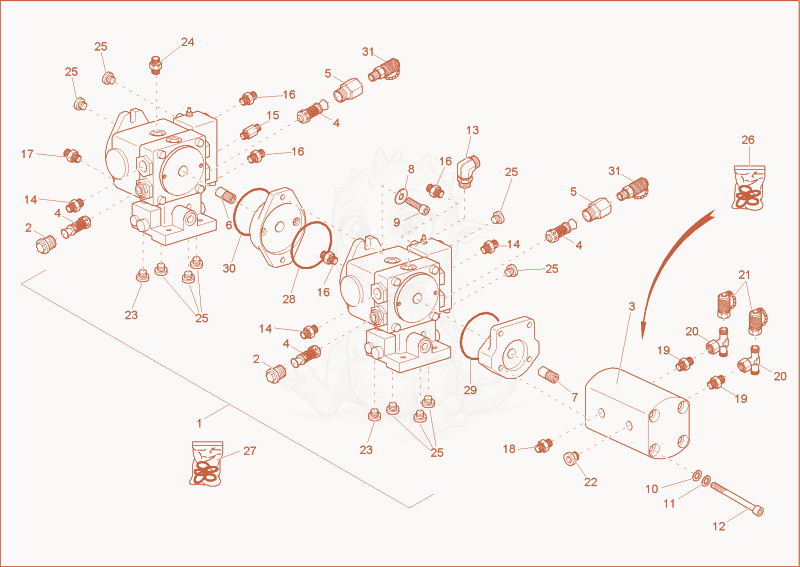

PUMP UNIT

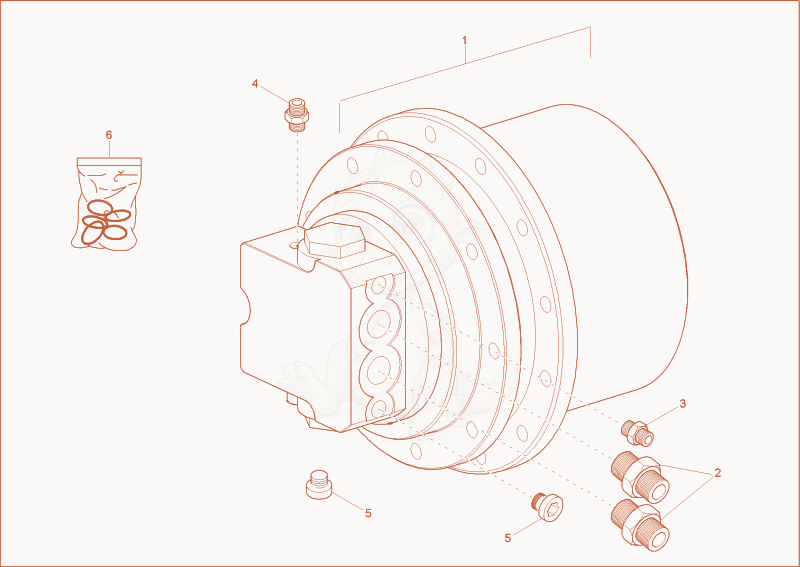

drive unit

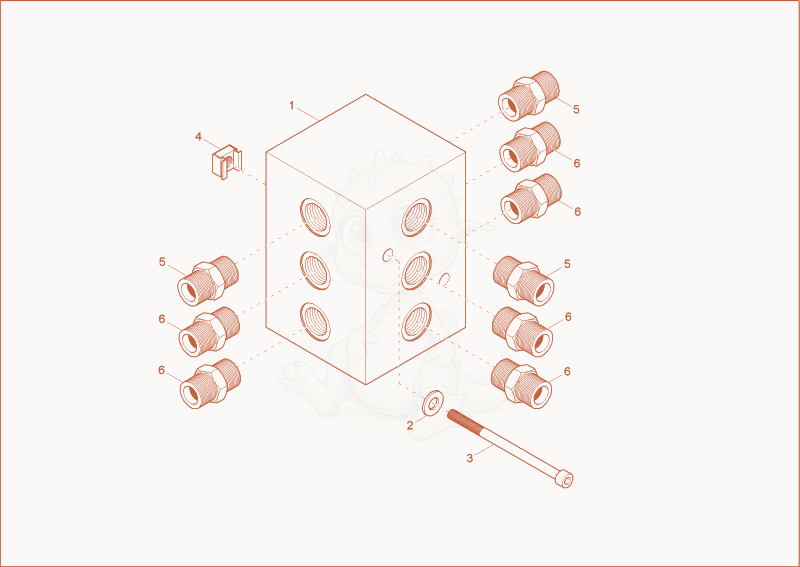

distributor block
TRAVELLING AUTOMATISM

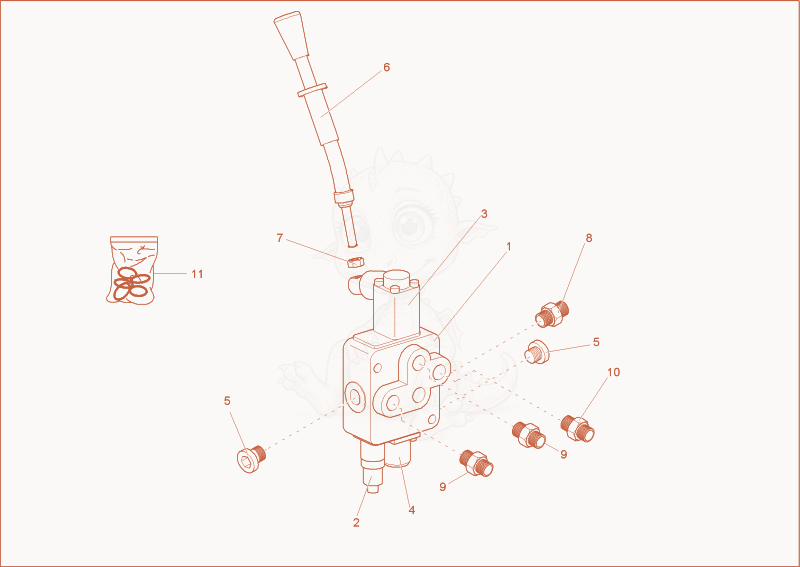

Tilting valve
brake valve
PILOT OPERATED CHECK VALVES
TILT CYLINDER

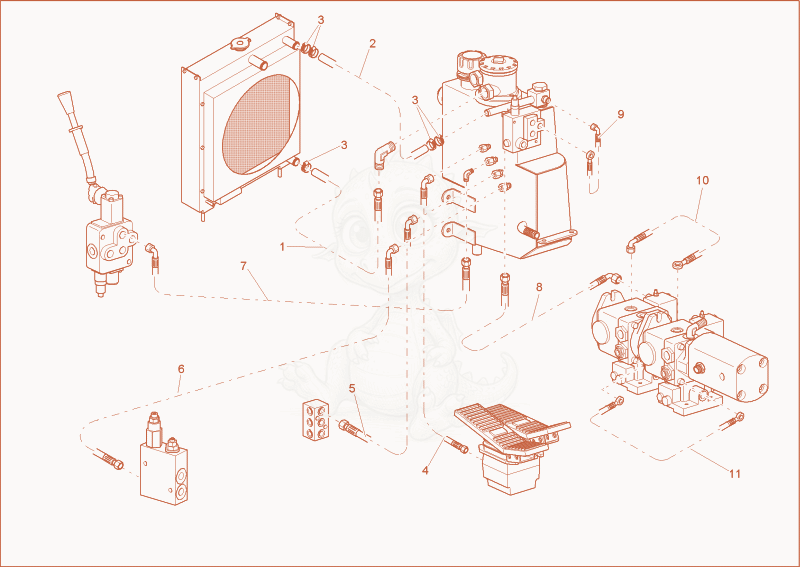

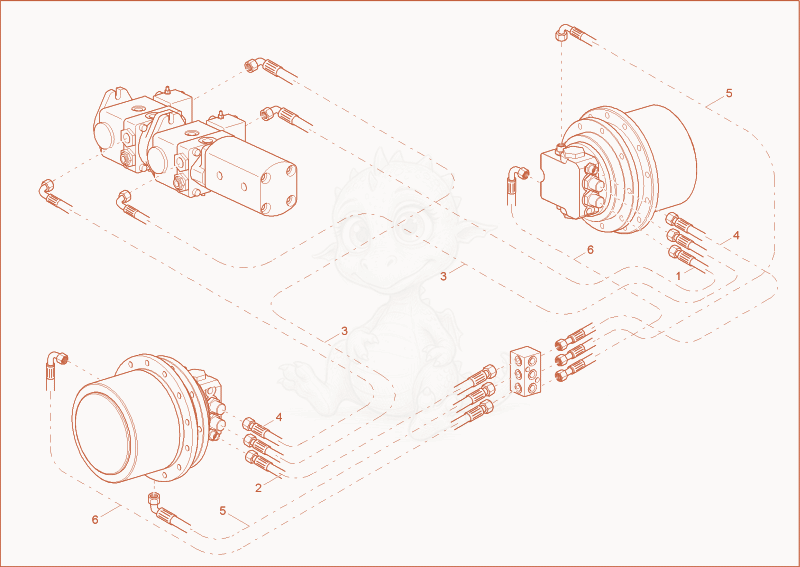

TRAVELLING GEAR INSTALLATION

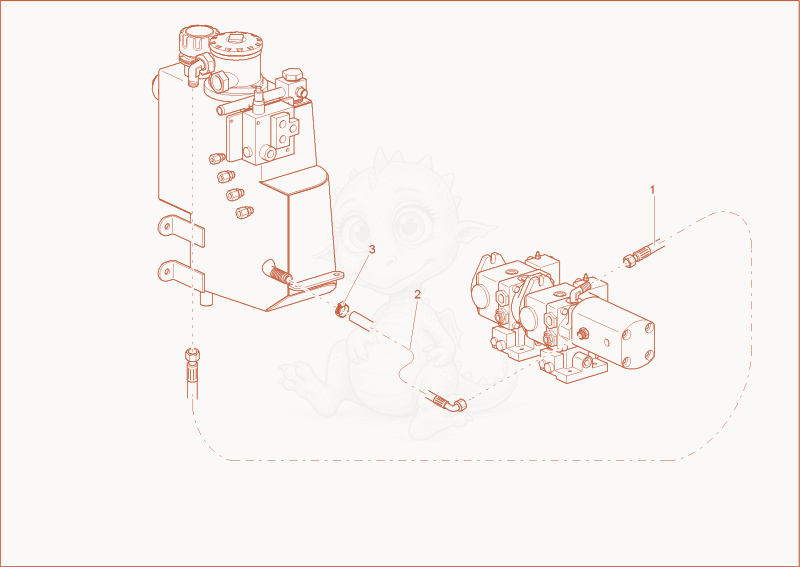

INSTALLATION SUCTION PIPE
TUBE
TANK LINE INSTALLATION
TILT CYLINDER INSTALLATION
BATTERY
wiring harness engine
instrument panel
STICKER
