WN Track dumper TD15

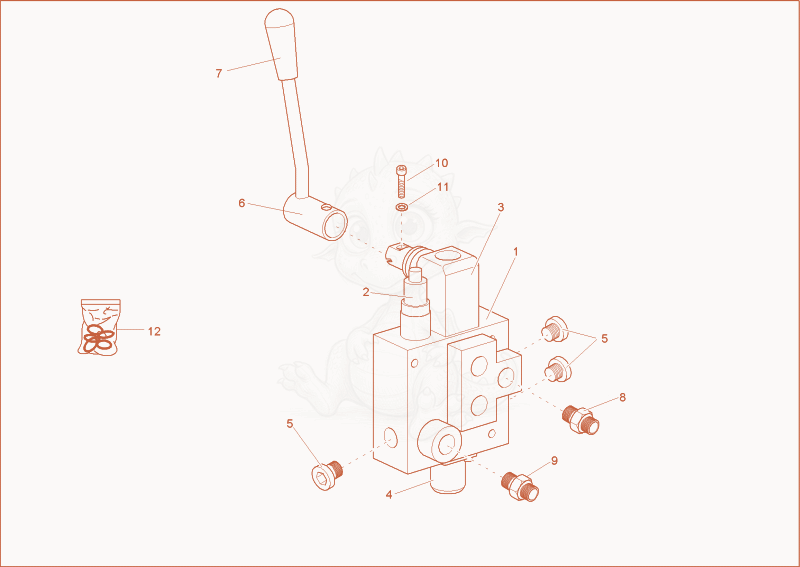

TD15 Tilting valve Diagram

Exploded parts diagram of the Tilting valve of a Wacker Neuson TD15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000066465Not stocked
    blade valve×1
  • 21000066431
    $161.38
    pressure limit cartridge - 1000066431×1
  • 31000066434Not stocked
    lever fastening set×1
  • 41000066435Not stocked
    back adjust stick set×1
  • 51000020797Not stocked
    screw joint×3
  • 61000066151Not stocked
    lever tilt-telescoping×1
  • 71000019658
    $5.99
    HANDLE - 1000019658×1
  • 81000015491Not stocked
    screw joint×1
  • 91000082928
    $4.41
    GE08LR3/8A3CX - 1000082928×1
  • 101000019593Not stocked
    cheese head screw×1
  • 111000015431Not stocked
    washer×1
  • 121000066436Not stocked
    seal kit blade valve×1
