WN Track dumper TD15

TD15 BATTERY Diagram

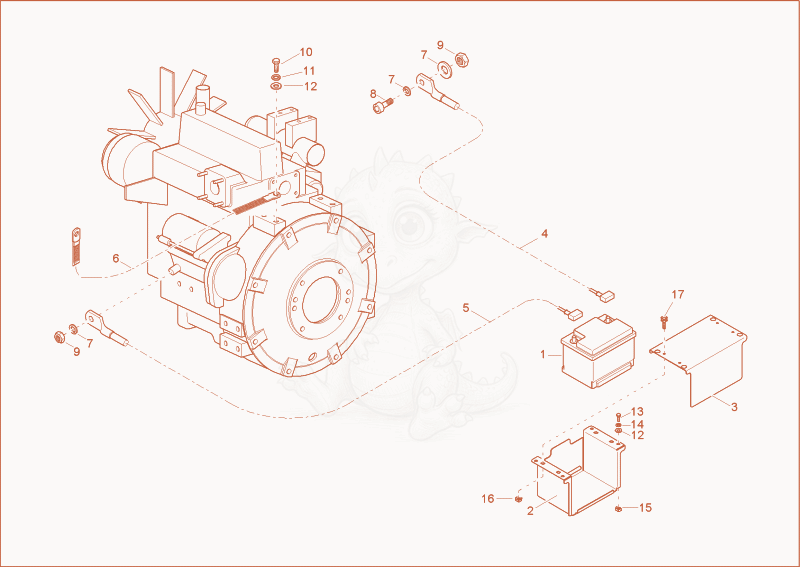

Exploded parts diagram of the BATTERY of a Wacker Neuson TD15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015287
    $184.50
    battery - 1000015287×1
  • 21000060999Not stocked
    battery box×1
  • 31000061000Not stocked
    battery cover×1
  • 41000061009Not stocked
    minus pole cable×1
  • 51000061008Not stocked
    plus cable×1
  • 61000069009Not stocked
    earth strap×1
  • 71000015431Not stocked
    washer×3
  • 81000082295
    $1.10
    cheese head screw - 1000082295×1
  • 91000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 101000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 111000022016Not stocked
    spring washer×1
  • 121000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×5
  • 131000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×4
  • 141000022016Not stocked
    spring washer×4
  • 151000094959
    $1.13
    Korgmutter M10 4,8-6,2 - 1000094959×4
  • 161000015425Not stocked
    cage nut×4
  • 171000139409Not stocked
    starhandle screw×4
